AVer EVC170 Video Conferencing System

AVer

Got A Question? Contact Us.

We Offer Good Discount      Expert Technical Support

Video Interfaces:

    • Main Camera: eCam PTZ IV input
    • HDMI/VGA for presentations input
    • 2x HDMI output
    • VGA output

$2,130.00

Compare
$4,129.49 for 3 item(s)

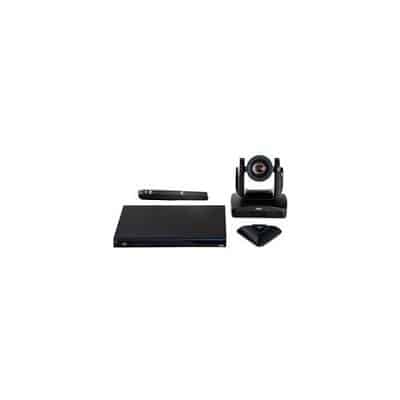

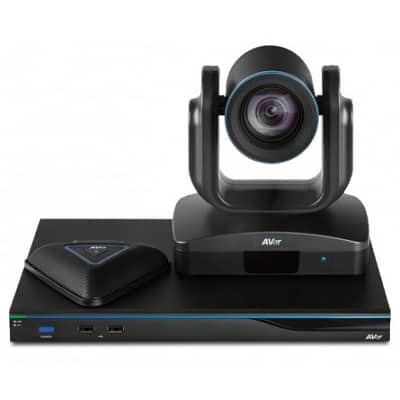

AVer EVC170 Video Conferencing System

AVer EVC170 video conferencing system is indeed the ideal video conferencing solution. This is ideal for large and medium-size conference rooms or auditoriums. With Aver EVC170, it makes conferencing easy, exciting and makes the meeting feels natural. Aver EVC170 is a PTZ 1080p camera with 12x zoom, has a panning range of ±130° and -25° to +90° tilting range. It captures everyone and automatically frames the group without missing anyone.

AVer EVC170 comes with a professional video conferencing codec with a built-in meeting server. It supports SIP, H.323, and WebRTC (with an additional license) interoperability between on-premises platforms. Meetings are recorded directly to a USB stick.

In addition, AVer offers a wide range of software to enhance the meeting experience, including EZDraw for collaborative editing using Android or iOS tablets and ScreenShare for wireless content sharing.

In addition, with the latest firmware version, the Aver EVC170 video conferencing terminal can now be upgraded to a 6-point multipoint control unit (MCU), making the EVC170 a video conferencing server, allowing connections up to 5 other terminals to the Aver EVC170 system.

AVer EVC170 Features:

  • PTZ camera with 12X total zoom,  making it best for medium and large conference rooms.
  • ±130° panning range, and -25° to +90° tilting range
  • Supports and integrates H.323, Zoom, SIP, WebRTC and Cisco Webex
  • AVer  SmartFrame Focus Technology that helps to  captures all the faces around the table.
  • Aver EVC170 has remote control for simplified operations
  • End-Point with Built-In Meeting Server (MCU) Capability; Expandable to 6-Point MCU**
  • Microphone array provides 360° audio out to 10ft

Other Related Products

Grandstream GVC3220 Video Conferencing System
Grandstream GVC3202 Video Conferencing

For Technical Support on this product, kindly complete our Contact US  Form, or If you require additional assistance with product installation, you can reach our support center at [email protected].



AVer EVC170 – Technical Specifications

  • Package contents
    • Main system unit (codec)
    • eCam PTZ IV camera
    • EVC microphone array
    • IR remote control with batteries
    • Power supply
    • Cables
    • Warranty card
    • Quick guide



  • Communications
    • H.323, SIP standards, SIP TLS
    • WebRTC (License Required)
    • Call-Quality bandwidth 64Kbps ~ 8Mbps
    • RJ45 network LAN (10/100/1000)
    • Manual max. bandwidth settings



  • Camera
    • eCam PTZ IV camera
    • 2-megapixel CMOS sensor
    • 18X total zoom (12X optical + 1.5X digital)
    • ±130° pan; +90°/-25° tilt
    • 72° FOV (H); 43° FOV (V); 82° FOV (diagonal)
  • People video resolutions
    • HD 1080p (1920 x 1080), up to 60fps
    • HD 720p (1280 x 720)
    • 480p (848 x 480)
    • 4CIF (704 x 576)
    • CIF (352 x 288)
    • SIF (352 x 240)
    • All resolutions at 30fps



  • Content video resolutions

HDMI-supported resolutions

    • 1080p (1920 x 1080)
    • 720p (1280 x 720)
    • D1 (720 x 480)
    • SXGA (1280 x 1024)
    • XGA (1024 x 768)
    • SVGA (800 x 600)
    • VGA (640 x 480)

Output resolutions:

    • Up to HD1080p (1920 x 1080) up to 60fps



  • Video standards
    • H.264, H.264 HP, H.264 SVC, H.263+, H.263
    • H.239 dual-video streams
    • BFCP content sharing
  • Video features
    • 3D denoise



  • Video inputs
    • Main camera eCam PTZ IV
    • HDMI/VGA for presentation



  • Video outputs
    • HDMI x 2
    • VGA
  • Audio standards
    • G.711, G.722, G.722.1, G.728, G.722.1C, AAC-LD, G729



  • Audio features
    • Automatic gain control (AGC)
    • Advanced noise reduction (NR)
    • Acoustic echo cancellation (AEC)



  • Audio inputs
    • EVC microphone daisy chain up to 4
    • HDMI
    • Line-in (3.5 mm)
  • Audio outputs
    • HDMI x 2
    • Line-out (3.5 mm)



  • Other supported standards
    • H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
    • RTP, RTCP, H.350, SRTP, H.235, HTTP, HTTPs, Telnet, DHCP, DNS



  • User interface
    • Single/dual-monitor layout styles
    • User-friendly OSD
      (23 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese)
    • Display/edit site name
  • Network
    • 10/100/1000Mbps
    • NAT/firewall traversal (H.460)
    • High Efficiency Lost Packet Recovery (HELPeR™)
    • API support via Telnet
    • Packet Loss Recovery (PLR)
    • Wake-on-LAN (WOL) support
    • IPv4 and IPv6 support
    • Network test
    • Quality of service (QoS)
    • VLAN (802.1Q / 802.1P)
    • EAP 802.1x



  • Security
    • AES (Advanced Encryption Standard) function (128-bit) and H.235
    • Password protection for system settings
    • Password protection for remote system management



  • Web management tool
    • Remote management
    • Live monitoring
    • Firmware update
    • Phonebook download/upload/edit
    • Restore system settings
    • Export call history
    • HTTP and HTTPs
  • Value-added features
    • Meeting recording
      • In-meeting and offline recording
      • Save directly to USB flash drive
      • Supports screen re-layout during playback
      • Playback and file conversion via VCPlayer software (.MOV and .MP4 format)
    • EZMeetup / EZMeetup Plus software/App
      • 30-day for free trial
      • Connect with H.264 and H.264 HP video codecs
      • Receive resolution up to full HD 1080p at 30fps
      • Transmit resolution up to full HD 1080p at 30fps
      • Support content sharing, capturing and recording
    • EZDraw App
      • Import .JPG, .PNG, .GIF and .BMP files
      • Export .PNG files
      • Connect up to 10 devices
    • ScreenShare software (Wirelessly share content)
    • VCLink software (control and sharing in smartphone)
    • Dual-monitor support output (video and content sharing)
    • Speed dialing via hot keys (10 sets)
    • Camera presets (100 positions)
    • Firmware updates via USB flash drive
    • Screensaver and auto power-off mode
    • Network Time Protocol (NTP)
    • SnapShot
    • Supports SIP voice calls
    • iSCSI storage device settings
    • Built-in meeting server
    • Supports AVer Register Server (ARS)
    • Far-end Camera Control
    • Meeting ID method
    • Multipoint License
      • Supports 2, 4 point multi-point licenses for up to a maximum of of 6 points.
      • Requires Aver EVC350 2 or 4-port Upgrade License
      • Requires Firmware version 00.30.02.06
  • Power supply
    • AC 100V ~240V, 50/60 Hz
    • Consumption: EIAJ 12V, 5A



  • Environmental data
    • Operation temperature: 0 ~ 40°C
    • Operation humidity: 20 ~ 80%
    • Storage temperature: -20 ~ 60°C
    • Storage humidity: 20 ~ 80%
  • Physical characteristics
    • Package dimensions: 376 x 300 x 243 mm
    • Package weight: 6.99kg (15.41lbs)
    • Main system (codec): 320 x 262.7 x 37.2 mm
    • eCam PTZ IV: 180 x 144 x 184 mm
    • EVC microphone array: 131.9 x 118.6 x 25.5 mm



  • Optional accessories
    • Additional microphone
    • Camera mount
    • USB-to-RS232 converter



  • Software options
    • WebRTC License
    • Upgrade up to 4 sites license (Exclusive in India)
  • Warranty**
    • Camera/Codec/Microphone: 3years
    • Accessories: 1 year
