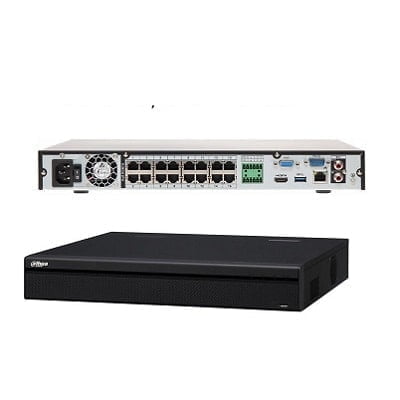

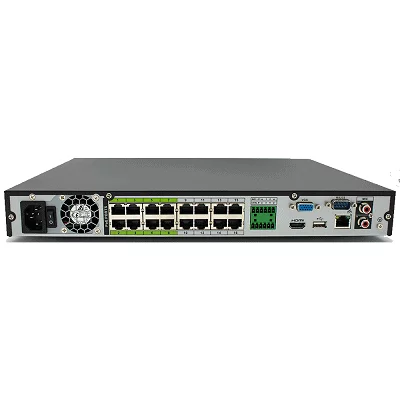

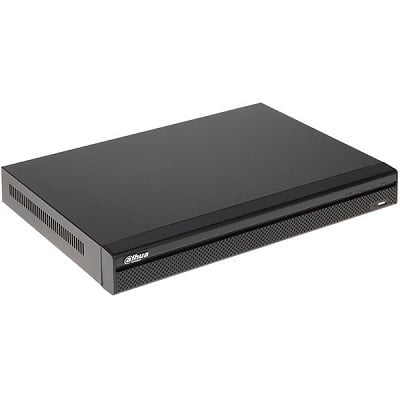

Dahua 16channel POE NVR


Key Features:

        •  Process High Definition Images
        • Efficient H.265+ compression technology
        • 16 port PoE power supply.
        • HDMI port and VGA
        • Max 200 Mbps incoming bandwidth
        • HDMI port


$431.25 for 3 item(s)

Dahua 16channel POE NVR

As a homeowner, you want to do everything you can to protect your property. A home surveillance system is a great way to deter criminals and keep an eye on your home, even when you’re away. The Dahua 16channel 16port POE NVR is a top-of-the-line home surveillance system that can benefit any home and office in security because of it’s simplicity and cost effectiveness.
The Dahua network video recorder is excellent with highly rated recording performance across all Dahua IP cameras

Features of Dahua 16channel  NVR

    •  Process High Definition Images
    • Efficient H.265+ compression technology
    • 16 port PoE power supply.
    • HDMI port and VGA
    • Max 200 Mbps incoming bandwidth
    • Up to 8MP resolution for preview and playback
    •  Compatible with Dahua Smart Motion Detection Cameras


Technical Specification

Series: Lite
Compression: H.265, H.264, MJPEG
Channels: 16
Input Bandwidth: 200Mbps
Record Bandwidth: 200Mbps
Video Output: One (1) HDMI
One (1) VGA
HDD: Two (2) SATA III Ports,
Up to 8 TB capacity for each HDD
eSATA: 0
Mini SAS: 0
Audio In: One (1) Channel, RCA
Audio Out: One (1) Channel, RCA
Alarm In: 4
Alarm Out: 2
Network: 1 Gigabit Port
POE: 16 Ports (IEEE802.3af/at)
USB: 1 USB 3.0, 1 USB 2.0
Power: 100 to 240 VAC, 50/60 Hz
<13.2W (No HDD)
IVS: Yes (All Channels)
Fisheye Dewarp: No
Main Processor Embedded Quad-core Processor
Operating System Embedded Linux
Audio and Video
IP Camera Input 16 Channels
Two-way Talk Input: One (1) Channel, RCA Output:
One (1) Channel, RCA
Interface One (1) HDMI
One (1) VGA
Native Output Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024,
1280 x 720, 1024 x 768
Maximum Decoding Two (2) Channels of 4K/6 MP at 30 fps Three (3) Channels of 5 MP at 30 fps Four (4) Channels of 4 MP/3 MP at 30 fps Four (4) Channels of 1080p at 60 fps Eight (8) Channels of 1080p at 30 fps Sixteen (16) Channels of 720p at 30 fps
Multi-screen Display 1/4/8/9/16
On-screen Display Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Compression H.265, H.264, MJPEG
Supported IP Camera Resolution 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP,
720p, D1, CIF,
Maximum Incoming Bandwidth 200 Mbps
Bit Rate 16 Kbps to 20 Mbps per channel
Record Mode Manual, Schedule (Regular, Continuous), Motion Detection (Video Detection, Motion Detection, Tampering, Video Loss), Stop
Record Interval 1 to 120 minutes (default: 60 minutes)
Pre-record: 1 to 30 s
Post-record: 10 to 300 s
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 x 18),
Video Loss and Tampering
Alarm Input Four (4) Channels,
Low Level Effective, Green Terminal Interface
Relay Output Two (2) Channels,
NO/NC Programmable, Green Terminal Interface
Playback and Backup
Sync Playback 1/4/8/16
Search Mode Time/Date, Alarm, MD and Exact Search (accurate to one second), Smart Search
Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera,
Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device, Network
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others
Ethernet One (1) RJ-45 Port (10/100/1000 Mbps)
PoE 16 Ports (IEEE802.3af/at)
Network Function HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP,
Alarm Server, IP Search
(Support for Dahua IP cameras, DVRs, NVS)
Maximum User Access 128 Users
Mobile Operating System IOS, Android
Interoperability ONVIF 2.4, CGI Conformant
Internal HDD Two (2) SATA III Ports,
Up to 10 TB capacity for each HDD
HDD Mode Single
Auxiliary Interface
USB One (1) USB 3.0 Port
One (1) USB 2.0 Port
RS232 One (1) Port
Power Supply 100 VAC to 240 VAC, 50/60 Hz
Power Consumption NVR: < 13.2 W, without HDD
Total PoE Power 25.5 W single port, 130 W total
Operating Conditions -10° C to +55° C (+14° F to +131° F)
Storage Conditions -20° C to +70° C (-4° F to +158° F), 0 to 90% RH
NVR 1U, 375.0 mm x 281.50 mm x 56.0 mm
(14.80 in. x 11.10 in. x 2.20 in.)
NVR with PFH101 Rack Mount Tray 482.60 mm x 281.50 mm x 56.0 mm (19.0 in. x 11.10 in. x 2.20 in)
Net Weight 2.70 kg (5.95 lb), without HDD
Gross Weight 4.40 kg (9.70 lb), without HDD
CE EN55032, EN55024, EN60950-1
Safety UL 60950-1
CAN/CSA C22.2 No.60960-1
Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B ANSI C63.4-2014
Camera Support
Smart Motion Detection Any channel connected to a Dahua Network camera with
Smart Motion Detection
IVS triggers an alarm and takes a defined action for the following events:
Standard Features • Tampering with the camera.
• Camera loses or changes focus drastically.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
Premium Features
Motion An object moves through any part of the scene.
Tripwire A target crosses a user-defined line.
Intrusion A target enters or exits a defined perimeter.
Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
Advanced Features (records data from IP cameras with Advanced Features)
Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
People Counting Measure the number of customers, visitors or passengers
in a surveillance scene.
Heat Map Generates a visual representation of data.
