Fanvil i53W SIP Indoor Station, 2 SIP Lines, 7-Inch Color Touch Screen


Got A Question? Contact Us.

We Offer Good Discount      Expert Technical Support

Feature Highlights

  • 5 physical function keys
  • Built-in 1.5W speaker with AEC
  • Support visual intercom and remote access control
  • Real-time monitor of the door phone and cameras
  • Built-in 2.4G Wi-Fi

$278.26

Compare

Fanvil i53W SIP Indoor Station, 2 SIP Lines, 7-Inch Color Touch Screen

Fanvil i53W is an indoor SIP station with a 7 “color touch screen and 5 function buttons that can be used in a variety of residential areas and indoor applications. It can also be connected to alarm systems and other smart security devices through multifunctional interfaces.

Highlight Features·

  •  7-inch color touch screen
  • 5 physical function keys
  • Built-in 1.5W speaker with AEC
  • Support visual intercom and remote access control
  • Real-time monitor of the door phone and cameras
  • Built-in 2.4G Wi-Fi
  • 8 alarm input interfaces
  • 1 pair of RS-485 interfaces
  • Wall-mounted and desktop installation methods (with the  external desk stand)
  •  Compatible with major platforms: 3CX, Avaya, Asterisk,  BroadSoft, Metaswitch, Elastix and etc.

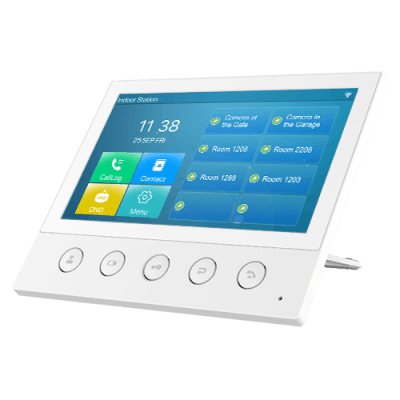

Fanvil i53W SIP Indoor Station

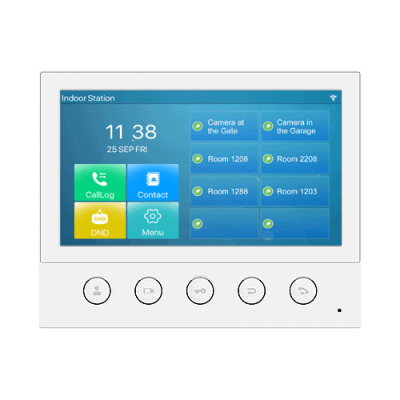

Elegant Design with 7-inch Color Touch ScreenFanvil i53W delivers a user-friendly experience with an elegant
design and a clear 7-inch color touch screen.
Fanvil i53W SIP Indoor Station
Easier operation with a clear touch screen, Fanvil i53W offers direct access to all key functions at your fingertips,providing a smoother operation experience for the users.

HD Audio and Video CommunicationUsers can communicate with visitors with superb audio
and clear video images via Fanvil i53W.

5 Easy-to-access Physical ButtonsUsers can easily achieve different functions with one press on Fanvil i53W.

Built-in 2.4G Wi-FiFanvil i53W supports built-in 2.4G Wi-Fi, and it allows users to choose wireless connection mode for different requirements.

Rich InterfacesFanvil i53W is flexible and powerful with rich interfaces to connect more security devices.
Fanvil i53W SIP Indoor Station

For Technical Support on this product, kindly complete our Contact US  Form, or If you require additional assistance with product installation, you can reach our support center at [email protected].

Category:

Fanvil i53W Technical Specifications

General

  • 6 SIP Lines
  • HD Voice
  • PoE
  • External Power Supply(Optional)

Display

  • 1 x LCD: 7-inch 800×480 Colour Screen

Audio

  • Wideband ADC/DAC 16KHz sampling
  • Narrowband codec: G.711A/U, G.729AB, iLBC
  • Wideband codec: G.722, Opus
  • Full-duplex hands-free speakerphone with AEC
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
  • VQM voice quality monitoring

Video

  • Hardware video decoding: H.264
  • Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

  • 10/100 Mbps Ethernet
  • IP Mode:IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static / DHCP / PPPoE
  • VPN: L2TP / OpenVPN
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
  • WiFi

Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web management portal
  • Web-based packet dump
  • Configuration export / import
  • Firmware upgrade
  • Syslog

Physical Specification

  • 5 Function keys (Management Center, Monitor, Unlock, Return/Hang up, Answer)
  • 10 Pin Cable x1
  • 4 Pin Cable x1
  • 2 Pin Cable x1

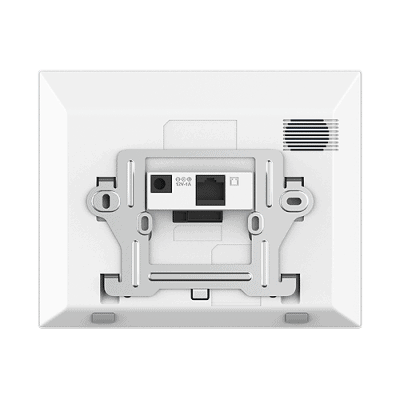

  • Wall-mount Bracket x1
  • Screws Kit x1
  • RJ45 Interface x1
  • RS485 Interface x1
  • Alarm Input Interface x8
  • DC Power Input: 12V/1A
  • Power Consumption (PoE): 1.44W~4.76W
  • Power Consumption (Adapter): 1.25W~4.09W
  • Working Temperature: 0~45℃
  • Working Humidity: 10~90%
  • Colour: White
  • Installation:

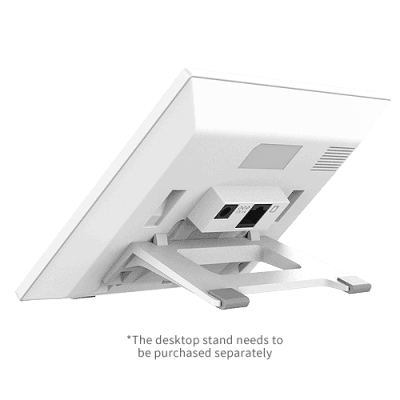

    – Desktop (Need to purchase stand separately)
    – Wall-mounted
  • Device Dimensions: 176x104x26.5 mm
  • Gift Box Dimensions: 193x152x39 mm
  • Outer CTN Dimensions: (20 PCS) 413x220x322 mm
