Grandstream GSC3510 is a SIP intercom microphone and speaker

Grandstream

Key Features

  • 3- directional microphones
  • Two-meter pickup distance
  • 10/100Mbps network port with PoE/PoE+

Downloads Documents & Manuals

$174.00

Compare
$874.00 for 3 item(s)

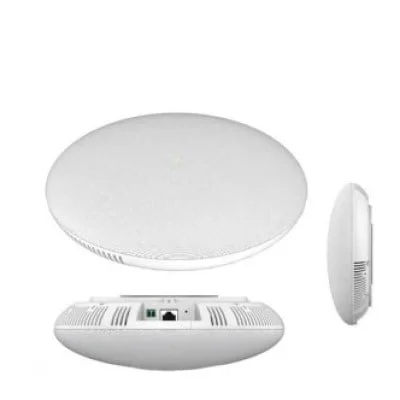

 Grandstream GSC3510 SIP Intercom Microphone Speaker

Grandstream GSC3510 SIP Intercom Speaker and Microphone for use in offices, schools, hospitals, apartments, and more to build powerful voice solutions that enhance security and communication. 3 directional microphone devices with a multi-channel microphone array (MMAD) design provide a reception distance of 4.2 meters pickup distance.

GSC3510 Highlights:

  • Two-way SIP Intercom
  • 8W High-quality speaker
  • Tri-directional microphone
  • Considerable pickup distance of 4.2 meters range
  • Advanced echo cancellation and beamforming array
  • Integrated WiFi for light-infrastructure deployments

GSC3510 is compatible with a wide range of peripherals including Bluetooth devices, built-in white and blacklist for easy blocking of unwanted calls, built-in dual-band WiFi, and enhanced reverb and sound cancellation.  By pairing the GSC3510 with other Grandstream devices including desktop computers and wireless IP phones as well as GDS series products; users can easily create a solution for state-of-the-art security and intercom voice communications. With its modern industrial design and rich features, the GSC3510 is the ideal speaker/microphone for the intercom, perfect for any environment.

Two-way intercom
The device can work as a two-way intercom, allowing fast conversations when searching/calling specific GSC devices in the communication network. For example, call the class and ask to send the student to the main office.

Easy Configuration with Grandstream
Grandstream’s patented Push to Talk devices can be configured for PTT directly via serial or dedicated GSC3510 devices. a line of intercoms providing state-of-the-art security and voice communications

2-pin multi-input
The GSC3510 also has a 2-pin multi-purpose input that supports a variety of peripherals including call buttons or Panic button allows the GSC3510 to initiate a call to a pre-defined destination point, such as a security telephone or a front desk telephone. When used with a call button peripheral, the GSC can act as a security device to protect both network users and non-network users. Site access can be controlled by the caller through the GSC3510, or an alarm button can connect the user to security personnel in the event of an emergency.

Used for easy mobility
When used in healthcare or elderly care, the GSC3510 can provide an easy way for users with mobility issues to Communicate with the medical and nursing staff.

Related products

Grandstream GVC3202 Video Conferencing

For Technical Support on this product, kindly complete our Contact US  Form, or If you require additional assistance with product installation, you can reach our support center at [email protected].



Grandstream GSC3510 Technical Specification

Protocols/Standards

  • SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

  • One 10/100 Mbps port with integrated PoE/PoE+

Bluetooth

  • Yes, integrated. Bluetooth 4.0 + EDR

WiFi

  • Yes, dual-band 2.4 & 5GHz with 802.11 a/b/g/n, WMM

Auxiliary Port

  • One 2-pin multi-purpose input port, Reset

Voice Codecs and Capabilities

  • G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Telephony Features

  • SIP Paging, Multicast Paging, call-waiting with priority override

HD Audio

  • Yes, HD speakerphone with support for full band audio with 48KHz voice sampling frequency

Speaker and Microphones

  • 8W high-fidelity HD speaker; 3 directional microphones with beam-forming capability and up to 4.2-meter voice pickup distance

QoS

  • Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

  • User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

Multi-language

  • English, German, French, Spanish, Portuguese, Russian & Chinese

Upgrade/Provisioning

  • Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using AES encrypted XML configuration file

Power & Green Energy Efficiency

  • Integrated PoE* 802.3af Class 3, PoE+ 802.3at Class 4

Temperature and Humidity

  • Operation: 0°C to 40°C
  • Storage: -10°C to 60°C
  • Humidity: 10% to 90% Non-condensing

Package Content

  • GSC3510 SIP Intercom Speaker/Microphone
  • Mounting kits
  • Quick installation guide
  • GPL license

Physical

  • Unit Dimensions: 215.32mm (diameter) x 68.7mm (depth)
  • Unit Weight: 0.8kg
  • Box Weight: 1.39kg

Compliance

  • FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter); FCC Part 15C, FCC Part 15E, MPE
  • CE : EN 55032; EN 55024; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301 489- 1/17; EN 300 328; EN 301 893; EN 62311; RoHS
  • RCM: AS/NZS CISPR 32/24; AS/NZS 60950.1; AS/NZS 4268
  • IC: ICES 003, RSS 247, RSP-100, RSS 102
