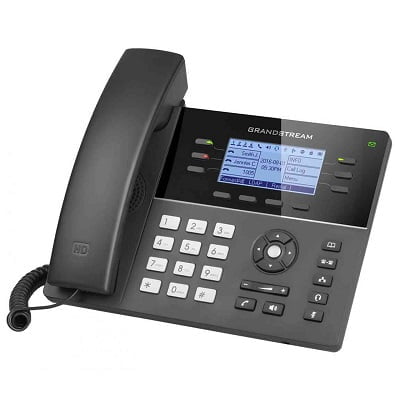

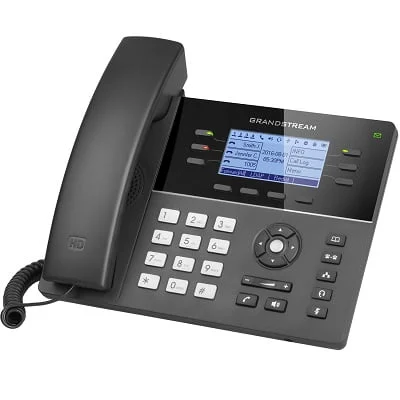

Grandstream GXP1760W Business IP Phone

Grandstream
Availability:

Out of stock


Got A Question? Contact Us.

We Offer Good Discount      Expert Technical Support

  • 5 channel HD audio conference call
  • Inbuilt USB port for importing data and exporting data
  • PoE powered and PSU
  • Integrated dual-band Wi-Fi
  • Phonebook: 2000 contacts / 500 entries

Downloads Documents & Manuals

$83.48

Out of stock

Compare
$285.98 for 3 item(s)

Grandstream GXP1760W  IP Phone

Grandstream GXP1760W Business IP Phone is an excellent, middle-range SIP IP business phone with inbuilt Wi-Fi, is recommendable for moderate call volumes. It comes with about 6 lines and 3 SIP accounts. GXP1760w comes with inbuilt POE and USB port for importing data and exporting data.

For greater flexibility, GXP1760W provides personalized ringtones and integration with advanced network and business applications and local weather services. control. Also can accommodate five audio conference calls.

Features of Grandstream GXP1760W Business IP Phone

    • High-definition wideband audio, full-duplex  speakers, with echo  cancellation
    • High-definition audio, handset, and hands-free phone with wideband audio support
    • 6 line  with 3
    •  accounts,  6 dual-color line key
    • 5 channel HD audio conference call
    • Inbuilt USB port for importing data and exporting data
    • PoE powered and PSU
    • Integrated dual-band Wi-Fi
    • Phonebook: 2000 contacts / 500 entries
    • GXP1760w Supports EHS compatible Plantronics’ headsets

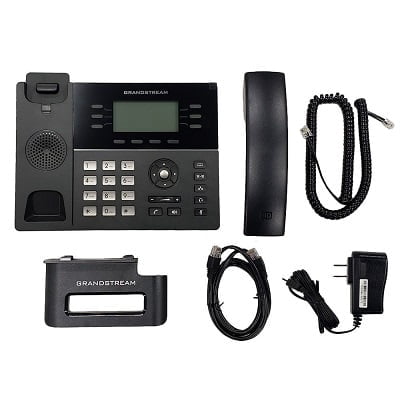

Package Contents

      • One Piece of Grandstream GRP2612W
      • Curly handset Cable
      • 5V Power Supply Unit
      • Quick Installation and Setup Guide
      • GPL License

Grandstream GRP2612W is an SIP phone that can run on most VoIP phone platforms such as MyPABX, 3CX, etc. These SIP phones need to be configured to work on the SIP platforms. Your VoIP phone provider or installer can assist.

Grandstream GRP2612W is a Power over Ethernet (PoE) device, but it also has a 5A backup power supply unit. So if you don’t have PoE, you don’t need to buy a power supply separately.



SKU: GXP1760W Categories: , ,

Grandstream GXP1760W – Technical Specifications

General Features

  • Dual switched auto-sensing 10/100Mbps ethernet ports with integrated POE
  • Graphic Display: 200 x 80 pixel (3.3’’) backlit LCD display
  • WiFi: Yes, integrated dual-band WiFi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)
  • Bluetooth: No
  • Feature Keys:
    -6 line keys with up to 3 SIP accounts,
    -4 XML programmable context sensitive softkeys,
    -5 navigation/menu keys
    -8 dedicated function keys for: PHONEBOOK, TRANSFER, CONFERENCE, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOLUME
  • Voice Codecs:
    -Support for G.729A/B
    -G.711μ/a-law
    -G.726
    -G.722 (wide-band)
    -G.723, iLBC
    -OPUS
    -in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
  • Auxiliary Ports:
    -RJ9 headset jack (allowing EHS with Plantronics headsets)
    -USB
    -Separate
    -EHS port reserved for external EHS adapter in the future
  • Telephony Features:
    -Hold
    -Transfer
    -Forward
    -5-way conference
    -Call park
    -Call pickup
    -Shared call appearance (SCA) / bridged-line-appearance (BLA)
    -Downloadable phonebook (XML, LDAP, up to 2000 items)
    -Call waiting
    -Call log (up to 500 records)
    -XML customisation of screen
    -Off-hook auto dial
    -Auto answer
    -Click-to-dial
    -Flexible dial plan
    -Hot desking
    -Personalised music ringtones and music on hold
    -Server redundancy and fail-over
  • HD audio: Yes, HD handset and speakerphone with support for wideband audio
  • Base Stand: Yes, 2 angle positions available. Wall Mount stand sold separately
  • QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Protocols/Standards

  • SIP RFC3261
  • TCP/IP/UDP
  • RTP/RTCP
  • HTTP/HTTPS
  • ARP
  • ICMP
  • DNS( A record, SRV, NAPTR)
  • DHCP
  • PPPoE
  • TELNET
  • TFTP
  • NTP
  • STUN
  • SIMPLE
  • LLDP
  • LDAP
  • TR-069
  • 1x
  • TLS
  • SRTP
  • IPV6
  • Security:
    -User and administrator level passwords
    -MD5 and MD5-sess based authentication
    -256-bit AES encrypted configuration file
    -SRTP
    -TLS
    -802.1x media access control
    -Kensington Security Slot (Kensington Lock) support
  • Multi-language: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese
  • Upgrade/Provisioning: Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file
  • Power & Green Energy Efficiency:
    -Universal power adapter included: Input:100-240V; Output: +5V, 2A;
    -Integrated Power-over-Ethernet (802.3af)
    -Max power consumption: 5W
  • Physical:
    -Dimensions – 231mm (W) x 167mm (L) x 86mm (H)
    -Weight – 0.925kg
  • Temperature and Humidity:
    -Operation: 0°C to 40°C
    -Storage: -10°C to 60°C
    -Humidity: 10% to 90% Non-condensing
  • Compliance:
    -FCC: Part 15 (CFR 47) Class B
    -CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1
    -RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1
