Grandstream GXP2170 Business IP Phone

Grandstream

Grandstream GXP2170 Key Features:

  • 12 lines, 6 SIP accounts, 5 soft keys and 5-way voice conferencing
  • 4.3 inch  color-screen LCD
  • Dual Gigabit ports, integrated PoE
  • Inbuilt Bluetooth
  • 12 lines, 6 SIP accounts, 5 soft keys and 5-chanennel voice conferencing
  • 48 on-screen digitally customizable BLF/speed-dial keys
  • Two Gigabit ports, inbuilt PoE

$121.50

Compare

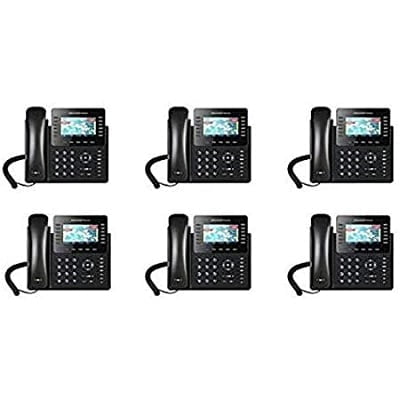

$220.50 for 3 item(s)

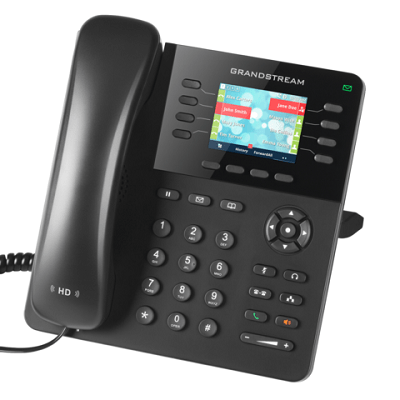

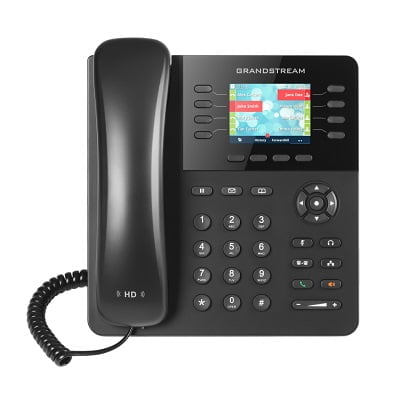

Grandstream GXP2170 Business IP Phone

Grandstream GXP2170 Business IP Phone is a high end business IP  desktop phone that is very good for callers who handle high call volumes. The GXP2170 Business IP Phone has the capacity to deal with heavy call traffic.  The  Grandstream business phone features  12 line keys/line appearances and 6 SIP accounts using a 4.3 inch (480 x 272) colour display LCD and full HD audio.

GXP2170 supports the maximum connection speed of two gigabit network ports, has inbuilt PoE and inbuild Bluetooth to connect with other bluetooth devices  and headsets . This Business IP phone can connect to up to four GXP2200 EXT modules with LCD display to access up to 160 speed dial/BLF contacts. The GXP2170 is the perfect choice for business users looking for a top-notch executive IP phone with advanced features.



Grandstream GXP2170 Key Features:

  • 12 lines, 6 SIP accounts, 5 soft keys and 5-way voice conferencing
  • 4.3 inch  color-screen LCD
  • Dual Gigabit ports, integrated PoE
  • Inbuilt Bluetooth
  • 12 lines, 6 SIP accounts, 5 soft keys and 5-chanennel voice conferencing
  • 48 on-screen digitally customizable BLF/speed-dial keys
  • Two Gigabit ports, inbuilt PoE
SKU: GXP2170 Categories: , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Grandstream GXP2170 – Technical Specifications

Protocols/Standards

  • SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6, CDP/SNMP/RTCP-XR

Network Interfaces

  • Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

Graphic Display

  • 4.3 inch (480×272) TFT colour LCD

Bluetooth

  • Yes, integrated.

Feature Keys

  • 12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE, VOL+, VOL

Voice Codecs

  • Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723.1, iLBC, Opus, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

Auxiliary Ports

  • RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port

Telephony features

  • Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customisation of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalised music ringtones and music on hold, server redundancy and fail-over

HD Audio

  • Yes, HD handset and speakerphone with support for wideband audio

Extension Module

  • Yes, can power up to 4 GXP2200EXT modules which features a 128×384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit.

Base Stand

  • Yes, 2 angle positions available, Wall Mountable

QoS

  • Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

  • User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control

Multi-language

  • English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more

Upgrade/Provisioning

  • Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file, FTP/FTPS

Power & Green Energy Efficiency

  • Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ; Integrated Power-over-Ethernet (802.3af) Max power consumption : 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs)

Physical

  • Dimension: 228mm(W) x 206mm(L) x 46mm(H)
  • Unit weight: 0.98kg
  • Package weight: 1.43kg

Temperature and Humidity

  • Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing

Package Content

  • GXP2170 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, GPL license

Compliance

  • FCC: Part 15 (CFR 47) Class B CE: EN55022  Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24;  AS/NZS 60950.1
