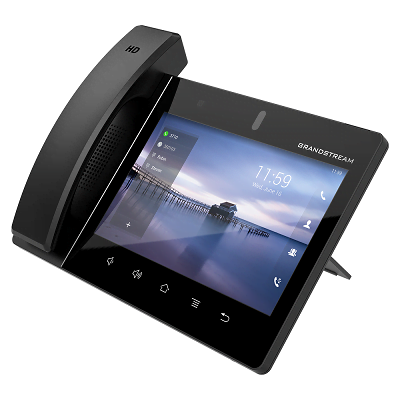

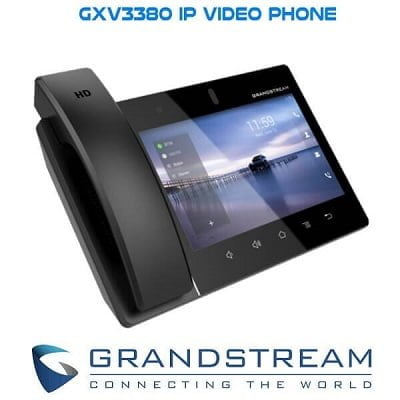

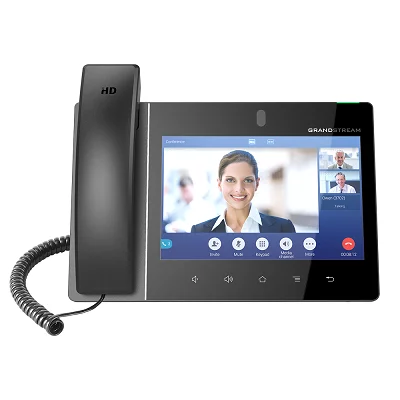

Grandstream GXV3380 IP Video Desktop Phone

Grandstream

Grandstream GXV3380 IP Video Desktop Phone is such a wonderful quality high-end model for Android, with inbuilt Bluetooth and WIFI,  wrapped up  in  all-in-one communication solution with ideal  range of features that include  multi-video platform collaboration, 8-inch 1280×800 capacitive touch screen and a 2-megapixel camera.

Grandstream GXV3380 Key Features

  • Android 7.X version
  • Integrated 2MP video phone camera with private shutter
  • Integrated dual-band WiFi (2.4 and 5GHz)
  • Inbuilt Wi-Fi and Bluetooth
  • IN and OUT  HDMI  ports
  • Inbuild PoE / PoE +

186,000.00

414,900.00 for 3 item(s)

Grandstream GXV3380 IP Video Desktop Phone

The Grandstream GXV3380 IP desktop video phone is a high-quality Android model that integrates Bluetooth and WIFI, embedded with a universal communication solution. It has  ideal range of features that include  multi-video platform collaboration, 8-inch 1280×800 capacitive touch screen and a 2-megapixel camera.

The GXV3380 IP video  Desktop phone gives users peace of mind because of it’s high video and audio performance. The GXV3380 IP phone stand out with a powerful experience through its’ 2 megapixel camera, 8 inch 1280×800 capacitive touch screen,  IN and OUT HDMI cable for  sharing of files or contents, double microphones and support for 1080p HD video.

The GXV3380 adds two gigabit ports with PoE / PoE +, built-in WiFi (802.11ac) and Bluetooth support. Works in conjunction with Android 7.x and provides instant access to thousands of Android applications. The GXV3380 provides businesses in all industries and around the world with a robust desktop communications and productivity solution

Grandstream GXV3380 Key Features

  • Android 7.X version
  • Integrated 2MP video phone camera with private shutter
  • Integrated dual-band WiFi (2.4 and 5GHz)
  • Inbuilt Wi-Fi and Bluetooth
  • IN and OUT  HDMI  ports
  • Inbuild PoE / PoE +
  • Colour IPS LCD with TP
  • 7-channel HD audio conference and 3-channel HD video 1080p 30fp
  • Sharing wireless technology Miracast
  • 16 SIP accounts / line









SKU: DTN-5487FB56 Categories: , , ,

Grandstream GXV3380 Technical Specifications

Protocols/Standards

  • SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR),DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

  • Dual switched 10/100/1000 Mbps ports with integrated PoE/PoE+

Bluetooth

  • Yes, integrated Bluetooth 4.2 + EDR

Wi-Fi

  • Yes, dual-band (2.4GHz & 5GHz) with 802.11ac a/b/g/n/ac and WMM

Graphic Display

  • 8″ 1280×800 capacitive touch screen (10 points) IPS LCD

Camera

  • Tiltable 2 megapixel CMOS camera with privacy shutter, 1080p 30fps

Auxiliary Ports

  • RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB 2.0 port, micro SD, HDMI-out (1.4 up to 1080p60fps), HDMI-in (1.4 up to [email protected])

Feature Keys

  • 2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and BACK

Voice Codecs and Capabilities

  • Wide-band Opus, wide-band G.722, G.711µ/a, G. 729A/B, G.726-32, iLBC, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Video Codecs and Capabilities

  • H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4Mbps, 3-way video conference ([email protected]), BFCP, people video (up to [email protected]) + content video (up to [email protected]), anti-flickering, auto focus and auto exposure, camera block

Telephony Features

  • Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 7-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable contacts (XML, LDAP, up to 2000 items), call record(local and server), call log (up to 2000 records), call waiting, auto answer, XML customization of screen, click-todial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy & fail-over

Sample Applications

  • Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Email, Voicemail, Calculator, Clock, Recorder, GS Market, etc. Supports third-party Android apps such as Skype, Google Hangouts, etc. API/SDK available for advanced custom application development

Android

  • Runs Android 7.x

Applications Deployment

  • Supports Android 7.x compliant applications to be developed, downloaded and embedded on the device with provisioning control

HD Audio

  • Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio

Base Stand

  • Integrated stand with multiple adjustable angles

QoS

  • Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

  • User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support

Multi-language

  • English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean and Japanese

Upgrade/Provisioning

  • Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

  • Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A (18W) Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4 *USB enabled only when power supply or PoE+ is used

Temperature and Humidity

  • Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing

Package Content

  • GXV3380 phone, handset with cord, base stand, universal power supply, network cable, screen cleaning cloth, quick installation guide, brochure, GPL license

Compliance

  • FCC: CFR 47 Part 15 Subpart B Class B; CFR 47 Part 15 Subpart C; CFR 47 Part 15 Subpart E; UL 60950-1 (power adapter); Part68 (HAC) CE: EN55032 Class B; EN55035;EN61000-3-2; EN61000-3-3; EN62368-1;EN300328; EN301893; EN301489-1; EN301489-17; EN62311;RoHS RCM: AS/ACIF S040;AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
