HIKVISION 4MP OUTDOOR IP CAMERA
HIKVISION 4MP OUTDOOR IP CAMERA
,

HIKVISION 4MP OUTDOOR IP CAMERA

HIKVISION
Add to Wishlist
Compare

Key Features:

        • 1/3″ progressive scan CMOS
        • 3D DNR (Digital Noise Reduction)
        • PoE (Power over Ethernet)
        • 28mm / 4 mm fixed lens

$62.60

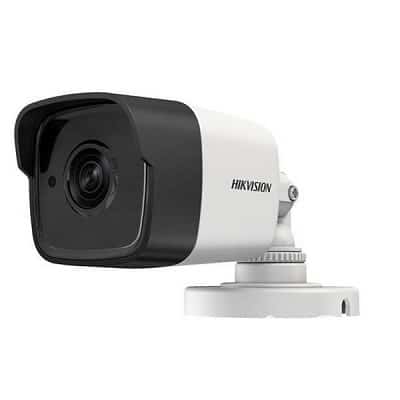

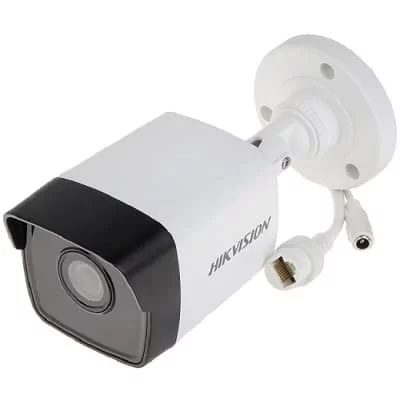

HIKVISION 4MP OUTDOOR IP CAMERA

HIKVISION 4MP OUTDOOR IP CAMERA is a high quality network smart dome camera with 4MP still image resolution that makes the image quality crystal clear. long infrared that helps the camera work even in total darkness. The camera can be powered over POE 12v power supply.
The HIKVISION 4MP OUTDOOR network` camera is a very sharp camera that sees everything in its range. The camera is strong and durable, highly recommended for home and office use. and NVR users can use the free HikConnect service that provides remote access to devices with dynamic IP addresses or allows using domain names in web browsers. The service can be operated via a web browser or applications for a PC and a smartphone.

Features of HIKVISION 4MP OUTDOOR CAMERA

    • Resolution: 4 MP (2560 x 1440)
    • Access via Hik-Connect app
    • Efficient H.265+ compression technology
    • Power: 12 VDC or PoE
    • Water and dust resistant (IP67) and vandal resistant
    • EXIR 2.0: advanced infrared technology with long IR range





SKU: SB-5487FB41 Categories: ,
  • Camera
  • Image Sensor1/3″ progressive scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal length, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°

    4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF2.0
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz: 20 fps (2560 × 1440)

    25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

    60 Hz: 20 fps (2560 × 1440)

    30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region Of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-UF: 8 kHz/16 kHz
  • Environment Noise Filtering-UF: Yes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, Schedule, Day, Night
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
  • Built-In Microphone-UF: Yes
  • Reset Key-UF: Yes
  • Event
  • Basic EventMotion detection, video tampering, exception
  • Linkage

    Upload to FTP, notify surveillance center, send email

    -UF also supports: upload to memory card, trigger recording, trigger capture

  • General
  • Power

    12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

  • Dimension177.6 mm × 66.2 mm × 67.8 mm (7.0″ × 2.6″ × 2.7″)
  • Package Dimension216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
  • Approx. 270 g (0.6 lb.)
  • With Package WeightApprox. 490 g (1.1 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013)
