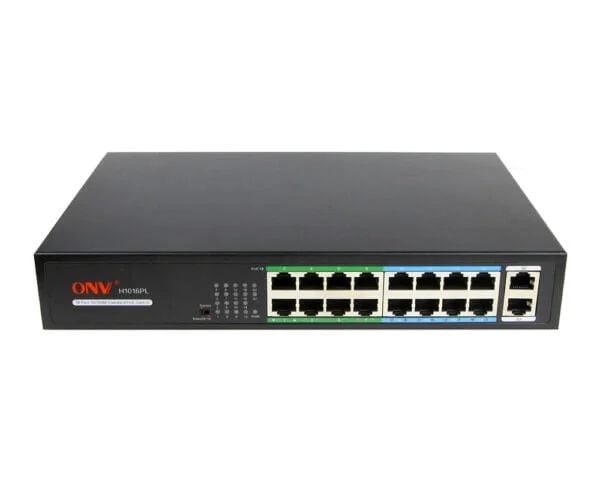

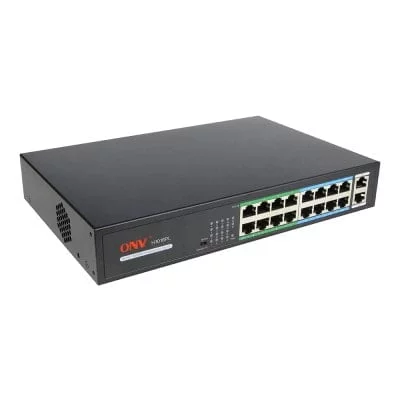

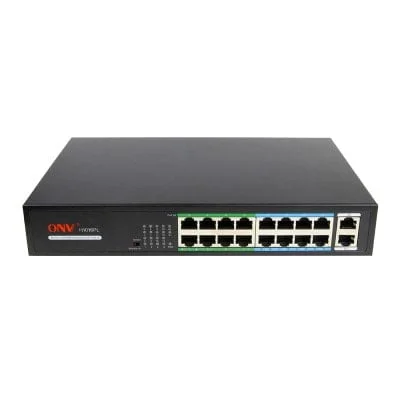

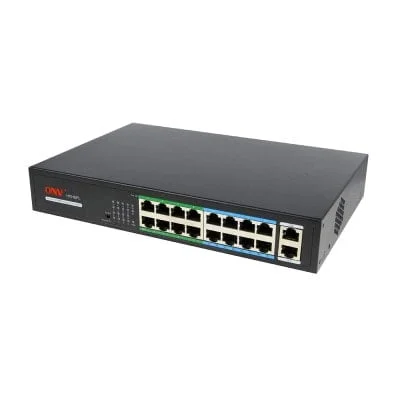

ONV-H1016PL 18 Port Unmanaged Poe Switch for Small & Medium Businesses

ONV
Availability:

2 in stock


Got A Question? Contact Us.

We Offer Good Discount      Expert Technical Support

Key feature

  • 16*10/100M Poe ports,802.3af/at+2*10/100/1000M RJ45 ports
  • Max power per Poe port:30W.
  • Port 9-16 support 10M@long transmission distance 250 meters
  • Supply power with the spare line pair
  • Built-in power supply

ONV-H1024PL Datasheet (PDF)
ONV Warranty Terms (PDF)
  H1024PL Application (JPEG)

$91.50

2 in stock

Compare
$221.50 for 3 item(s)

ONV-H1016PL 18 Port Unmanaged Poe Switch

With its 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports, the ONV-H1016PL has its 1 to 6 Ports support IEEE 802.3af/at standard PoE power supply, and single port PoE power of up to 30W. What is more interesting about this device is that because it is unmanaged, it functions without a complex setup, such that ethernet devices can communicate with one another, simply via a connection to the network. It also allows for the addition of temporary groups of devices to a larger network.  Asides its maximum POE output power being 200W, it also transmits long distance, up to 250 meters, as well as supplies power with the spare line pair (1,2(+)/3,6 (-) method default4,5(+)/7,8(-) optional

FEATURE

10/100M access, Gigabit uplink

  • Has 16*10/100M PoE ports and 2*10/100/1000M RJ45 ports for easy connection
  • It is suitable for various networking requirements
  • Support non-blocking wire-speed forwarding.
  • Compatible with full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Stable and reliable, easy tuse

  •  CCC,CE, FCC, RoHS.
  •  Supports 1U-19 inch cabinet rack.
  • No setup required, simple plug and play.
  • Galvanized steel case, low power consumption, no fan.
  • Displays devices status through the LED indicator of power.
  • Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
  • PoE ports 17-24 supports 10M/250 meters long distance transmission mode when one key is opened.

TECHNICAL SPECIFICATION

Model ONV-H1016PL ONV-H1024PL
Interface Characteristics
Fixed Port 16*10/100Base-TX PoE ports (Data/Power)

2*10/100/1000Base-T uplink RJ45 ports (Data)

24*10/100Base-TX PoE ports (Data/Power)

2*10/100/1000Base-T uplink RJ45 ports (Data)

Ethernet Port Port 1-16 can support 10/100Base-TX, Port 17-18 can support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing Port 1-24 can support 10/100Base-TX, Port 25-26 can support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing
Functional Switch After opening, port 9-16 can support 10M/250 meters long distance transmission. After opening, port 17-24 can support 10M/250 meters long distance transmission.
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤250 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)

Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x

Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 14.8Gbps (Non-blocking)
Forwarding

Rate@64byte

5.36Mpps 6.55Mpps
MAC 16K
Buffer Memory 4M
Jumbo Frame 9.6K
LED Indicator Power:PWR (green), network : Link(yellow),PoE: PoE (green)
PoE & Power
PoE Port Port 1 to 16 Port 1 to 24
Power Supply Pin Default 1/2(+), 3/6(-), optional 4/5(+), 7/8(-)
Max Power Per Port 30W, IEEE802.3af/at
Total PWR / Input Voltage 200W (AC100-240V) 250W (AC100-240V)
Power Consumption Standby<15W, Full load <240W Standby <20W, Full load <250W
Power Supply Built-in switching power supply, AC100~240V 50-60Hz 4.1A
Physical Parameter
Operation TEMP / Humidity -20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+75°C;5%~95% RH Non condensing
Dimension (L*W*H) 270*181*44.5mm 330*204*44mm
Net /Gross Weight <1.7kg / <2.2kg <2.3kg / <3kg
Installation Desktop, wall mounted
Certification & Warranty
Lightning protection / protection level Lightning protection: 4KV 8/20us; Protection level: IP30
Certification CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS
Warranty 1 year, lifelong maintenance.
