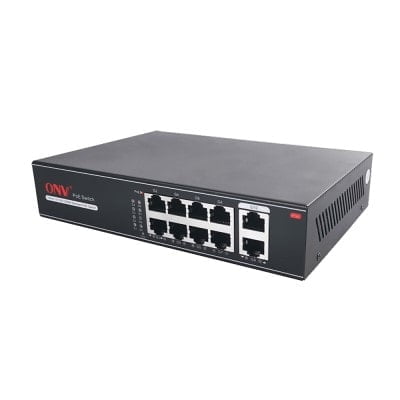

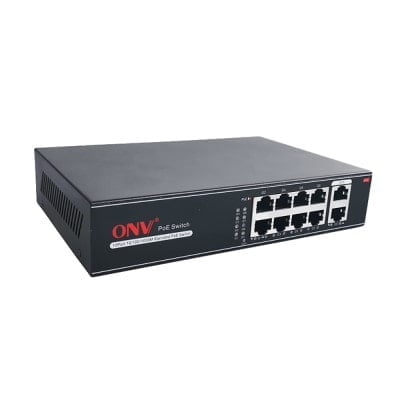

ONV-H1108PL Fast Ethernet PoE Switch, Unmanaged Full Gigabit

ONV
Availability:

4 in stock


Key feature

  • 8*10/100M Poe ports,802.3af/at+2*10/100/1000M RJ45 ports
  • Max power per Poe port:30W.
  • Built-in power supply
  • Port 1-8 support [email protected] transmission distance 250 meters and VLAN optional

ONV Warranty Terms (PDF)
ONV-H1108PL Datasheet.pdf
  ONV-H3016PF Application (JPEG)

$50.00

4 in stock

$235.00 for 3 item(s)

ONV-H1108PL Fast Ethernet PoE Switch, Unmanaged Full Gigabit

The ONV-H1108PL 10 port 10/100M unmanaged poe switch is a great choice for small and medium businesses looking for an affordable and easy-to-use Ethernet switch. This switch offers 10 ports, each of which can be used to connect to a 10/100M Ethernet network. The switch also includes a built-in power over Ethernet (PoE) feature, which makes it easy to power devices such as IP cameras and VoIP phones.

FEATURE

10/100M access, Gigabit uplink

  • Has 8*10/100M PoE ports and 2*10/100/1000M RJ45 ports for easy connection
  • It is suitable for various networking requirements
  • Support non-blocking wire-speed forwarding.
  • Compatible with full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Stable and reliable, easy tuse

  •  CCC,CE, FCC, RoHS.
  •  Supports 1U-19 inch cabinet rack.
  • No setup required, simple plug and play.
  • Galvanized steel case, low power consumption, no fan.
  • Displays devices status through the LED indicator of power.
  • Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

TECHNICAL SPECIFICATION

Model ONV-H1064PL ONV-H1108PL
Interface Characteristics
Fixed Port 4*10/100Base-TX PoE ports (Data/Power)

2*10/100Base-TX uplink RJ45 ports (Data)

8*10/100Base-TX PoE ports (Data/Power)

2*10/100Base-TX uplink RJ45 ports (Data)

Ethernet Port Port 1-6/1-10 can support 10/100Base-TX auto-detection, full/half-duplex MDI/MDI-X auto-sensing
Functional Switch 1*(Extend+VLAN)
Note:When the switch state changes, it must be restarted before the PoE switch function can take effect
Twisted Pair Transmission 10BASE-TX: Cat5 or later UTP(≤250 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX, IEEE802.3x

Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 1.6Gbps (Non-blocking) 2Gbps (Non-blocking)
Forwarding

[email protected]

0.98Mpps 1.488Mpps
MAC 1K
Buffer Memory 768K
Jumbo Frame 9.6K
LED Indicator Power:PWR (Green), network : L/A(Yellow), PoE : PoE (Green)

Functional switch: EXTEND (Green)

PoE & Power Supply
PoE Port Port 1 to 4 Port 1 to 8
Power Supply Pin Default 1/2(+), 3/6(-)
Max Power Per Port 30W, IEEE802.3af/at
Total PWR / Input Voltage 65W/ (AC100-240V) 120W/ (AC100-240V)
Power Consumption Standby<3W, Full load <65W Standby <5W, Full load <120W
Power Supply Built-in power supply, AC100~240V 50-60Hz 1A Built-in power supply, AC100~240V 50-60Hz 2.2A
Physical Parameter
Operation TEMP / Humidity -20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+75°C;5%~95% RH Non condensing
Dimension (L*W*H) 140*115*40mm 195*130*40mm
Net /Gross Weight <0.6kg / <1kg <0.8kg / <1.2kg
Installation Desktop, wall-mounted
Certification & Warranty
Lightning Protection / Protection Level Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CCC, CE mark, commercial, CE/LVD EN60950

FCC Part 15 Class B, RoHS

Warranty 1 year, lifelong maintenance.
