VOLTAGE PROTECTOR OR VOLTAGE REGULATOR

VOLTAGE PROTECTOR

Add to Wishlist
Compare
The voltage protector is designed such that when  power situation is not stable, it’s regulatory function will  automatically activate. When  the voltage exceeds the required range of a product, it will automatically cut off power supply the gadget to ensure  and  protect the safety of electrical equipment.
Green indicator light means when the power  supply is okay.
Red indicator  light means when  power/voltage is either over voltage or under voltage.



Main Technical Specification:
1. Rated AC voltage 230V±10% and frequency 50/60Hz
2. Passing Max Current: 32A
3. Max. Loading power: 8.8KVA
4. Over-voltage action cut-off value: >275VAC ± 5V
5. Normal-voltage value: 165-275VAC
6. Under-voltage action cut-off value: <160VAC ± 5V
7. Over voltage and under voltage cut-off:< 1s
8. Electricity transmitting delay after cut-off: < 60s
9. Self power consumption<2W
10. Electric machinery life=100000 times

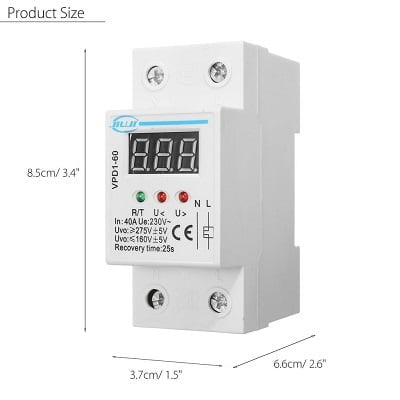

11. Dimension:37L*86W*66Hmm
12. Installing: 35mm Din rail

$13.04

Compare
$450.04 for 2 item(s)

VOLTAGE PROTECTOR



Over voltage and Under voltage protector with a reliable voltage regulators.
At initial installation of the  protector,  you have to be patient for about 1 minute, after the red light is off, then the product will start working.
This automatic recovery  voltage regulator protect your appliances against over voltage and under voltage with modular design standards,the circuit boards of products adopt good quality electronic components with reliable performance.
The voltage protector is designed such that when  power situation is not stable, it’s regulatory function will  automatically activate. When  the voltage exceeds the required range of a product, it will automatically cut off power supply the gadget to ensure  and  protect the safety of electrical equipment.
Green indicator light means when the power  supply is okay.
Red indicator  light means when  power/voltage is either over voltage or under voltage.



Main Technical Specification:
1. Rated AC voltage 230V±10% and frequency 50/60Hz
2. Passing Max Current: 32A
3. Max. Loading power: 8.8KVA
4. Over-voltage action cut-off value: >275VAC ± 5V
5. Normal-voltage value: 165-275VAC
6. Under-voltage action cut-off value: <160VAC ± 5V
7. Over voltage and under voltage cut-off:< 1s
8. Electricity transmitting delay after cut-off: < 60s
9. Self power consumption<2W
10. Electric machinery life=100000 times
11. Dimension:37L*86W*66Hmm
12. Installing: 35mm Din rail



















Related Products Topics



SKU: DNT-5487FB52 Category:
Main Technical Specification:
1. Rated AC voltage 230V±10% and frequency 50/60Hz
2. Passing Max Current: 32A
3. Max. Loading power: 8.8KVA
4. Over-voltage action cut-off value: >275VAC ± 5V
5. Normal-voltage value: 165-275VAC
6. Under-voltage action cut-off value: <160VAC ± 5V
7. Over voltage and under voltage cut-off:< 1s
8. Electricity transmitting delay after cut-off: < 60s
9. Self power consumption<2W
10. Electric machinery life=100000 times
11. Dimension:37L*86W*66Hmm
12. Installing: 35mm Din rail
