Enhance Productivity with Yealink SIP-T46U IP Phone: 16 VoIP Accounts, 4.3-Inch Color Display, Dual USB 2.0, Dual-Port Gigabit Ethernet, 802.3af PoE.

Yealink
Add to Wishlist
Compare

Features of Yealink SIP-T46U

  • 4.3″ colour display
  • Dual USB ports
  • Up to 16 SIP accounts
SKU:SIP-T46U
Brand: Yealink



$177.00

Compare
$244.17 for 3 item(s)

Enhance Productivity with Yealink SIP–T46U IP Phone: 16 VoIP Accounts, 4.3–Inch Color Display, Dual USB 2.0, Dual–Port Gigabit Ethernet, 802.3af PoE.

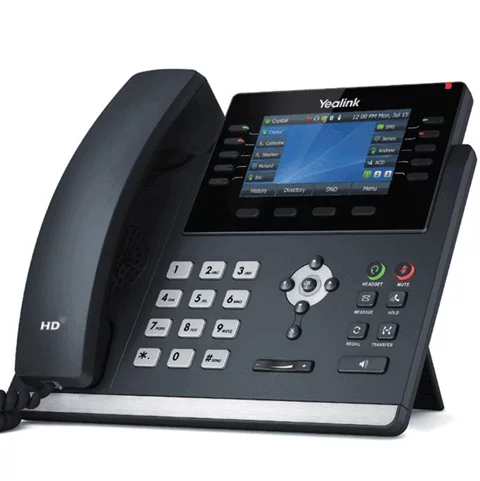

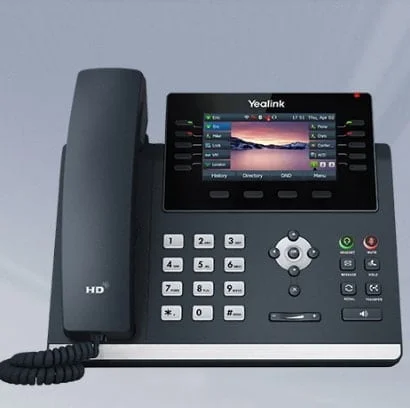

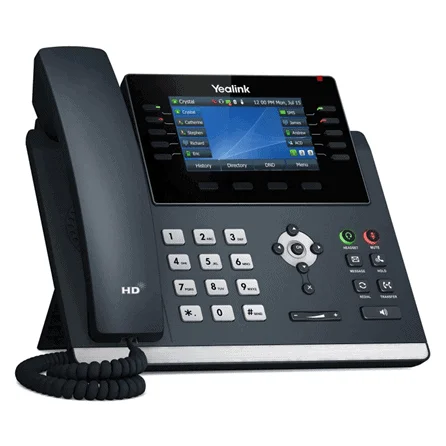

The Yealink SIP-T46U IP phone is an advanced communication device with exceptional overall performance. Featuring an attractive high-resolution TFT colour display, the phone offers a vivid and vibrant visual experience. Utilising Yealink Optima HD Voice technology and Opus wideband codec, the Yealink SIP-T46U IP phone ensures superior audio quality and crystal-clear voice communication. Additionally, T46U provides dual USB ports that enable Bluetooth, Wi-Fi, USB headset, and USB recording capabilities; users can freely use any two of these features according to their needs. The Yealink T4U series boasts the same sleek design as the T4 line, but with enhanced interoperability and collaboration.

Yealink SIP-T46U IP phone Main Feature

  • 4.3″ 480 x 272-pixel colour display with backlight
  • Opus codec support
  • Dual USB ports
  • Dual firmware images
  • T4U Auto-P template unified
  • T4U firmware unified
  • Up to 16 SIP accounts
  • Dual-port Gigabit Ethernet
  • PoE support
  • USB headset and EHS support
  • Wi-Fi via WF40/WF50
  • Bluetooth via BT40/BT41
  • USB recording
  • Supports color-screen expansion modules
  • Stand with two adjustable angles
  • Wall mountable

Easy Customization and High Expansivity
The Yealink SIP-T46U IP phone is a powerful and feature-rich VoIP phone, providing users with two Gigabit Ethernet ports, one of which is suitable for Power over Ethernet (PoE). Accompanied by two USB ports, the T46U enables Bluetooth, Wi-Fi, USB headset and USB recording capabilities, and users can choose any two of these features to customize their experience. In addition, the phone features three pages of flexible buttons which can be programmed with up to 27 paperless DSS keys. Moreover, the T46U can be connected to up to three expansion modules, providing an additional 180 buttons with a screen-based LCD display and LED system.

HD Audio
Yealink SIP-T46U IP phone Optima HD Voice technology employs cutting-edge hardware and software with wideband technology for maximum acoustic performance. The open, versatile audio codec Opus is designed to deliver superior HD audio quality in high network bandwidths. Moreover, even in a poor network quality, Opus provides better audio quality than other narrowband codecs. The hearing aid compatible (HAC) handset also helps people with hearing loss to hear the voice more clearly.

Efficient Installation and Provisioning
Yealink’s SIP-T46U IP phone enables effective provisioning and hassle-free bulk deployment with the use of Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism. This eliminates the need for complex manual configuration, making the T4U series simple to deploy, easy to manage and upgrade. Additionally, a unified firmware and auto-p template that is applicable to all T4U phone models saves time and cost for businesses, and simplifies the management and maintenance.

Secure Transport and Interoperability
The Yealink T4U series uses the latest network security technology, SIP over Transport Layer Security (TLS/SSL). It is also compatible with leading soft switch providers such as 3CX, Broadsoft Broadworks. Moreover, the series is equipped with dual firmware images, providing enterprise-level protection and preventing system bricking in the event of an upgrade failure.

For technical support: Contact Us

SKU: T46U Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Yealink SIP-T46U Technical Specification

Audio Features

  • HD voice: HD handset, HD speaker
  • Hearing aid compatible (HAC) handset
  • Acoustic Shield
  • Codecs: AMR-WB (optional), AMR-NB (optional), Opus, G.722, G.711(A/µ), G.723.1, G.729AB, G.726, iLBC
  • DTMF:  In-band, Out-of-band(RFC 2833) and SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

  • 16 VoIP accounts
  • Call hold, mute, DND
  • One-touch speed dial, hotline
  • Call forward, call waiting, call transfer
  • Group listening, SMS, emergency call
  • Redial, call return, auto answer
  • 10-way conferencing
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Set date time manually or automatically
  • Dial plan, XML Browser, Action URL/URI
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
  • Dual USB ports (2.0 compliant):
    – Bluetooth earphone through BT40/BT41
    – Contact synchronization through BT40/BT41
    – Wi-Fi through WF40/WF50
    – USB call recording through USB flash drive
    – USB headset
    – Expansion Module EXP43
    – Wireless Headset Adapter EHS40
  • Enhanced DSS key

Directory

  • Local phonebook up to 1000 entries
  • Black list
  • XML/LDAP remote phonebook
  • Smart dialing
  • Phonebook search/import/export
  • Call history: dialed/received/missed/forwarded

IP-PBX Features

  • Busy Lamp Field (BLF)
  • Bridged Line Apperance (BLA)
  • Anonymous call, anonymous call rejection
  • Hot-desking, voice mail
  • Flexible seating
  • Call park, call pickup
  • Executive and Assistant
  • Centralized call recording
  • Visual voice mail
  • Call recording

Display and Indicator

  • 4.3″ 480 x 272-pixel colour display with backlight
  • 16 bit depth colour
  • LED for call and message waiting indication
  • Dual-colour (red or green) illuminated LEDs for line status information
  • Wallpaper
  • Intuitive user interface with icons and soft keys
  • Multilingual user interface
  • Caller ID with name and number
  • Screensaver
  • Power saving

Feature keys

  • 10 line keys with LED
  • 10 line keys can be programmed up to 27 paperless DSS keys (3-page view)
  • 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
  • 4 context-sensitive “soft” keys
  • 6 navigation keys
  • Volume control keys
  • Illuminated mute key
  • Illuminated headset key
  • Illuminated hands-free speakerphone key

Interface

  • Dual-port Gigabit Ethernet
  • Power over Ethernet (IEEE 802.3af), class 3
  • 2 x USB port (2.0 compliant)
  • 1 x RJ9 (4P4C) handset port
  • 1 x RJ9 (4P4C) headset port

Other Physical Features

  • Colour: Classic Grey
  • Stand with 2 adjustable angles
  • Wall mountable
  • External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
  • USB output currency: 5V 1A
  • Power consumption (PSU): 1.2-3.0W
  • Power consumption (PoE): 1.6-3.8W
  • Dimension (W*D*H*T): 244mm*213mm*185mm*54mm
  • Operating humidity: 10~95%
  • Operating temperature: -10~50°C (+14~122°F)

Management

  • Configuration: browser/phone/auto-provision
  • Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
  • Auto-provision with PnP
  • Broadsoft device management
  • Zero-sp-touch TR-069
  • Phone lock for personal privacy protection
  • Reset to factory, reboot
  • Package tracing export, system log

Network and Security

  • SIP v1 (RFC2543), v2 (RFC3261)
  • Call server redundancy supported
  • NAT traversal: STUN mode
  • Proxy mode and peer-to-peer SIP link mode
  • IP assignment: static/DHCP
  • HTTP/HTTPS web server
  • Time and date synchronization using SNTP
  • UDP/TCP/DNS-SRV(RFC 3263)
  • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
  • SRTP for voice
  • Transport Layer Security (TLS)
  • HTTPS certificate manager
  • AES encryption for configuration file
  • Digest authentication
  • OpenVPN, IEEE802.1X > IPv6, LLDP/CDP/DHCP VLAN, ICE

Package Features

  • Package content:
    – Yealink SIP-T46U IP phone
    – Handset with handset cord
    – Ethernet Cable (2m CAT5E UTP Cable)
    – Stand
    – Quick Start Guide
    – Power Adapter (Optional)
    – Wall Mount Bracket (Optional)
  • Qty/CTN: 5 PCS
  • N.W/CTN: 7.2 kg
  • G.W/CTN: 8.1 kg
  • Giftbox size: 274mm*255mm*128mm
  • Carton Meas: 660mm*286mm*263mm
