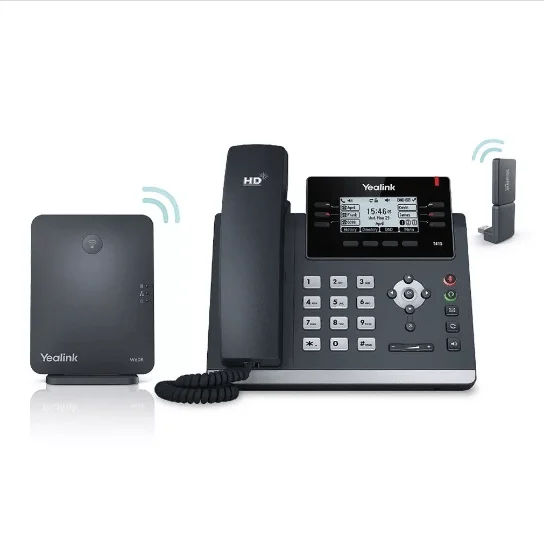

Yealink W41P DECT Desk Phone

Yealink W41P – Technical Specifications

Audio Features

• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• DTMF
• Full-duplex hands-free speakerphone with AEC
• Wideband codec: Opus, AMR-WB (optional), G.722
• Narrowband codec: PCMU, PCMA, G.723, G.726, G.729, iLBC

Phone Features

• Up to 2 simultaneous calls per handset
• Intercom
• Switching between calls
• Speed dial, voicemail, silence
• Local phonebook up to 800 entries (store in the base)
• Keypad lock
• Redial
• Call forward
• Call waiting
• Call transfer
• Call hold
• Mute
• DND3-way conference call
• Direct IP call without SIP proxy
• Ring tone selection
• Emergency call
• Set date time manually or automatically
• Dsskey: Line, SpeedDial, Retrieve Park
• Visual voice mail
• Anonymous call, anonymous call rejection

Directory

• Black list
• XML/LDAP remote phonebook
• Call history: dialed/received/missed

Display and Indicator

• 2.7″ 192×64-pixel graphical LCD with backlight
• LED for call and message waiting indication
• Notification Light: voice mail and missed call is signaled via display and illuminated power indicator
• Dual-color (red or green) illuminated LEDs for line status information
• Multilingual user interface

Feature keys

• 6 line keys with LED
• 6 line keys can be programmed up to 15 paperless DSS keys (3-page view)
• 5 features keys: message, headset, mute, redial, hands-free speakerphone
• 4 context-sensitive “soft” keys
• 6 navigation keys
• 2 volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key

Interface

• 2 x RJ45 10/100M Ethernet ports
• Power over Ethernet (IEEE 802.3af), Class 2
• 1 x USB port (2.0 compliant, connected to DD10K)
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port

Other Physical Features

• Colour: Classic Grey
• Stand with 2 adjustable angles
• Wall mountable
• External Yealink AC adapter (optional)： AC 100~240V input and DC 5V/1.2A output
• Power consumption (PSU): 1.3-3.0W
• Power consumption (PoE): 1.7-3.8W
• Dimension (W*D*H*T): 212mm*189mm*175mm*54mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)

Management

• Phone lock for personal privacy protection
• Reset to factory, reboot

DECT

• Frequency bands:
  – 1880 – 1900 MHz (Europe)
  – 1920 – 1930 MHz (US)
• DECT Standards: CAT-iq2.0
• DECT Phone upgrade: Over-The-Air (only supported when connected to W60B)
• DECT Range:
  – 50 meters indoor
  – 300 meters outdoor

Package Features

• Package content:
  – W60B Base Station
  – Two Stands (one for W60B, the other for T41S)
  – Two Power Adapters (one for W60B, the other for T41S)
  – Two Ethernet Cables
  – Quick Start Guides (W60B/T41S/DD10K)
  – DD10K DECT Dongle
  – Yealink SIP-T41S IP phone
  – Handset with handset cord
  – Wall Mount Bracket (Optional)
• Qty/CNT: 4 PCS
• Giftbox size: 228mm*195mm*257mm
• Carton meas: 470mm*407mm*268mm
• N.W: 7.4 kg
• G.W: 8.5 kg
