Fanvil C600 Android IP Video Phone with Touchscreen & Dual Gigabit Ports
[digitnet_promo_icons]
Key Note
HD Voice
2x 100/1000M Network Port (Power over Ethernet)
Camera- 5 mega pixel & Support Video Call
7ā TFT 800Ć480 Multi touch Screen
HDMI output
DSS Can Support Upto 100 Stations
On Line Recording & Message Forwarding
Call Conference Enhancement
DownloadsĀ Documents & Manuals
Ā Ā
- Brands: Fanvil
- Color: Black
- Additional Features: Android OS
- Network connection type: Ethernet, HDMI Cable, PoE, RJ-45 Standard
- Headset: Fanvil Headset
Click any tab above to view the information.
Description

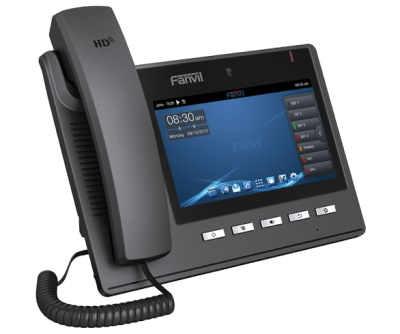

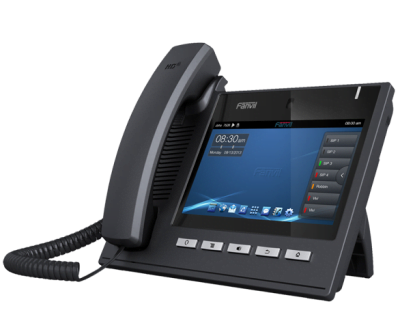

Fanvil C600 Android IP Video Phone with Touchscreen & Dual Gigabit Ports
Fanvilās smart C600 is built with the latest Freescale Core Quad solutions, 7ā Capacitor Multiple Touch Screen, Video Camera (C600), and Android 4.2 platform. A desktop phone, unlike a traditional IP Phone, offers the following highlights:
- 6 SIP line SIP accounts are available
- Contact/calendar sync from Google
- 720P video call
- Local 3-way video conference
- Full Programmable DSS Key and Soft Function Key
- DSS Can Support Up to 128 Stations
- Provide the DSS Template for Different Groups
- On-Line Recording & Message Forwarding
- Flexible Dial Plan with Auto Provision
- Support LDAP & XML Phone Book
- Support Hot Desk for different User
- Third IM/call Apps(skype/Lync/WeChat etc) might be run and assigned to make/answer calls as default, instead of SIP call manager
āThe C600 brings in brand new easy operation concepts and strategies targeting broadening the deployment of IP phones. Be more helpful in improving userās working efficiency are always what we dedicated, said Frank Gao, Product Manager of the C600.
Ā
Ā
Ā
ā¢ Android 4.2 OS
ā¢ Supports high-quality video call
ā¢ Supports SIP 2.0 (RFC3261) and correlative RFCs
ā¢ Supports 6 SIP servers and Backup SIP proxy servers.
ā¢ Supports SIP UDP/TCP/TLS
ā¢ Supports HDMI
ā¢ Supports USB Host
ā¢ Supports Acoustic echo cancellation (AEC) ā 128ms max filter length in duplex speakerphone mode
ā¢ Supports PLC & adaptive jitters buffer
Accessories
This section can show compatible accessories, installation kits, cables, brackets, batteries, or related add-ons.
Specifications
This section shows product attributes such as brand, model, SKU, power, size, material, color, and compatibility.
Fanvil C600 ā Technical Specifications
Main Features
- Call Forwarding
- Call Transfer(blind/attended/alert)
- Call Holding
- Call Waiting
- Call Conference
- BLF List
- Capable of 10 way conversation
- Join Call
- Pickup
- Call Completion
- Hot desk function
- Soft DSS Key (Upto 100)
- Auto Redial / un-redial
- Support multi line and pre-dial
- Support messaging and MWI
- Voice recording during talking /local
- Flexible dial plan
- Hotline/Warm-line
- Call Rejection
- Black List
- Barring function for outgoing calls
- Do Not Disturb
- Auto Answer (Hands- free / Headset)
- Caller ID display
- CLIR (rejects anonymous calls)
- CLIP (to make an anonymous call)
- Dial without registration
- Supports Call Logs with Missed / Incoming /
- Outgoing calls
- Intercom/Intercom barge
- Password dial
- Headset ring
- Direct IP call without SIP proxy
Display
- 7 inch TFT 800Ć480 capacitiveĀ multiple touch screen
Call Features
- Call Forwarding
- Call Transfer (blind/attended/alert)
- Call Holding
- Call Waiting
- Call Conference
- BLF List
- Capable of 10 way conversation
- Join Call
- Pickup
- Call Completion
- Hot desk function
- Soft DSS Key (Upto 100)
- Auto Redial / un-redial
- Support multi line and pre-dial
- Support messaging and MWI
- Voice recording during talking /local
- Flexible dial plan
- Hotline/Warm-line
- Call Rejection
- Black List
- Barring function for outgoing calls
- Do Not Disturb
- Auto Answer (Hands- free / Headset)
- Caller ID display
- CLIR (rejects anonymous calls)
- CLIP (to make an anonymous call)
- Dial without registration
- Supports Call Logs with Missed / Incoming /
- Outgoing calls
- Intercom/Intercom barge
- Password dial
- Headset ring
- Direct IP call without SIP proxy
Phone Features
- Android 4.2 OS
- Supports high quality video call
- Supports SIP 2.0 (RFC3261) and correlative RFCs
- Supports 6 SIP servers and Backup SIP proxy servers.
- Supports SIP UDP/TCP/TLS
- Supports HDMI
- Supports USB Host
- Supports Acoustic echo cancellation (AEC) ā
- 128ms max filter length in duplex speaker phone mode
- Supports PLC & adaptive jitter buffer
Audio Features
- Wideband codec: G.722
- Narrowband codec: G.711(A/Ī¼), G.723.1,
- G.729AB, iLBC, AMR
- DTMF: In-band, Out-of-band(RFC 2833) and
- SIP INFO
- Full-duplex hands-free speaker phone with
- AEC (Max filter length ā 128ms)
- Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Adaptive jitter buffer
- Packet loss concealment (PLC)
- Audio format: WAV/MP3/OGG
Video Features
- Video codec: H.264 / H.263
- Image codec: JPEG/PNG/BMP/GIF
- Video format: MP4/3GP/FLV
- Video call resolution: QCIF / CIF / VGA / 4CIF
- (1280x720P Optional)
- Bandwidth selection: 64kbps~4Mbps
- Frame rate selection: 10~30fps
- Picture-in-Picture (PIP)
- Video from remote site can be displayed in
full screen - Supports up to 4 video display mode
Network/Security Features
- WAN/LAN: support bridge mode
- Supports PoE (802.3af)
- Supports main DNS and secondary DNS server
- Supports VLAN
- Supports SNTP Client
- Supports VPN L2TP / PPTP / IPSec
- Supports SIP SRTP,
- Supports Web HTTP / HTTPS
- Supports QoS: 802.1p/q, DSCP
- Supports MD5 authentication
- Supports Web Filter
- DHCP/ static/ PPPoE
- STUN
Maintenance & Management
- Android 4.2
- Supports third party communication APP
- Supports Web, Telnet
- Web Management with different account right
- Supports automatic upgrades/
- configuration deployment
- Supports encrypted configuration files
download with AES - Supports pushing message
- Supports Auto-Provisioning (DHCP option/ PnP/ Phone flash)
- Supports TR-069
- Supports Web upgrade
- Supports U Disk/SD upgrade
- Supports backup/restore/factory reset data
Physical Features
- Adapter Input:100-240V
- Adapter Output:12V/1A
- WAN Port -10/100/1000 Base-T RJ-45 for LAN
- LAN Port- 10/100/1000 Base-T RJ-45 for PC
- HDMI Port ā Type A
- SD Interface ā TF Card Support Upto 32G
- USB Port- USB 2.0
- Power Consumption- Idle: 2.5W/Active: 5W
- LCD Size Diagonal: 7 inch (800 x 480) capacitive touch screen
- Camera- Adjustable Position
- Operation Temperature: 0~40ā
- Relative Humidity: 10ļ½65%
- CPU Freescale Core Quad 1 Ghz
- SDRAM ā 1GB DDR3 1066
- Flash- 4GB
- Weight- Phone:1.2Kg/Total:1.8Kg
Technical Specifications
| Brands | Fanvil |
|---|---|
| Color | Black |
| Additional Features | Android OS |
| Network connection type | Ethernet, HDMI Cable, PoE, RJ-45 Standard |
| Headset | Fanvil Headset |
| Number of phone lines | Multi-lines |
| Power Method | PoE, Power Adapter |
