- Smart Home, Access Control, Smart Door Lock
Fingerprint Doorlock
- Material: Stainless steel
- Opening Ways: Fingerprint, Card
- Battery: 3 Standard AAA alkaline batteries, 18 months in normal state
- Indication: Light, Sound(Mute or Music optional)
- Deadbolt Indication: No
- Low voltage warning: Yes
- Passage mode for meeting room: Yes
- Static consumption: 12uA
- Dynamic consumption: 300mA
- Humidity: 20%-80%
SKU: DNT-5487FB12
Smart Biometric Fingerprint Access Control
▪ Could Control 2 Gates
▪ Multiple Verification Modes
▪ Time Attendance & Access Control
$226.09

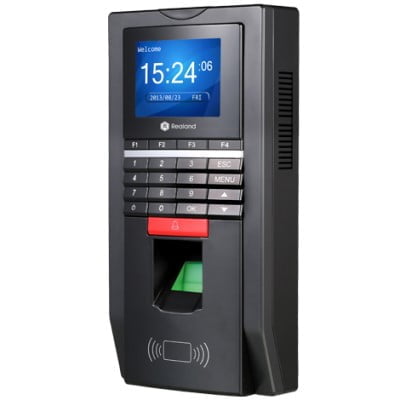

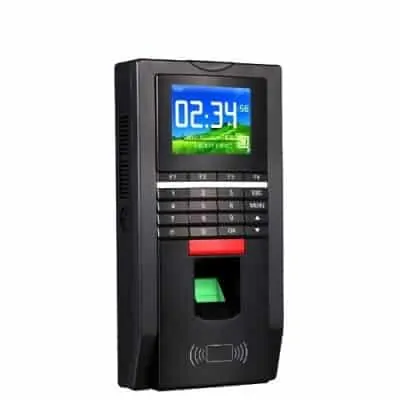

Biometric Fingerprint Access control
M-F131 is a professional high-end access control device which has RFID card & fingerprint authentication for access control.
It’s with the leading-edge fingerprint arithmetic in the world, automatically analyzes the tiny difference of the latest fingerprints vs the previous fingerprints and updates accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition.
Specifications | |
CPU | ARM926EJ-S processor, 32bit RISC Kernel, working frequency: 200MHz |
Display | 2.4 inch TFT color screen |
Fingerprint Sensor | 500DPI (optical sensor) |
Max User | 2,000 |
Fingerprint/ Card/ PIN Capacity | 2,000 |
Transaction Capacity | 100,000 |
Language | Chinese, English, Spanish… |
Communication | TCP/IP; USB Flash Drive, RS485 |
Proximity Card | Standard for RFID Card(125KHz); optional for MIFARE Card (13.56MHz) |
Bell | Built-in Timing Bell (Scheduled-bell); can connect to external timing bell |
Access Control Interface | Wiegand26/34; door lock; alarm; exit button; doorbell; door sensor |
Power Supply | DC 12V/1A |
Operation Environment | Operating Temp: 0 ℃ ~ 45℃, Humidity: 20% ~ 80% |
Dimension | 181 (L)*91(W)*36(H)mm |
Color | Black, Silver |
Related Products Topics .
ecifications | |
CPU | ARM926EJ-S processor, 32bit RISC Kernel, working frequency: 200MHz |
Display | 2.4 inch TFT color screen |
Fingerprint Sensor | 500DPI (optical sensor) |
Max User | 2,000 |
Fingerprint/ Card/ PIN Capacity | 2,000 |
Transaction Capacity | 100,000 |
Language | Chinese, English, Spanish… |
Communication | TCP/IP; USB Flash Drive, RS485 |
Proximity Card | Standard for RFID Card(125KHz); optional for MIFARE Card (13.56MHz) |
Bell | Built-in Timing Bell (Scheduled-bell); can connect to external timing bell |
Access Control Interface | Wiegand26/34; door lock; alarm; exit button; doorbell; door sensor |
Power Supply | DC 12V/1A |
Operation Environment | Operating Temp: 0 ℃ ~ 45℃, Humidity: 20% ~ 80% |
Dimension | 181 (L)*91(W)*36(H)mm |
Color | Black, Silver |
