Grandstream GWN7052 Dual-Band WiFi Router: Maximum Coverage | Robust Connectivity | Dual-band 2×2:2 MU-MIMO and Supports 100 concurrent Wi-Fi client devices


  • Built-in VPN support
  • Supports Mesh networking
  • Dual-band 2×2:2 MU-MIMO
  • Supports 100 concurrent Wi-Fi client devices
  • Powerful security features include guest network and network blacklist
  • Rich firewall features including Anti-DoS, traffic rules, NAT and ALG

$76.00

Compare
$102.84 for 3 item(s)

Grandstream GWN7052 Dual-Band WiFi Router: Maximum Coverage | Robust Connectivity | Dual-band 2×2:2 MU-MIMO and Supports 100 concurrent Wi-Fi client devices

Grandstream GWN7052 DualBand WiFi Router is a secure dual-band router powered by 802.11ac Wi-Fi technology. Ideal for small offices, home offices, and remote workers, the router provides dual-band 2 ×2 MU-MIMO and supports wireless Mesh networking and wired AP connections. Grandstream Wireless WiFi Router Powered by a dual-core 880MHz processor. Provides Wi-Fi speeds of up to 1.266 Gbps to 100 wireless devices.

The WiFi Enables bandwidth-demanding applications such as 4K Ultra HD video streaming, web meeting, video conference and online gaming. It supports VPN to allow remote employees to securely connect to the corporate network from home or branch offices. Grandstream wireless wifi router also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. The Grandstream Wireless WiFi Router is the ideal router for a growing a home and small business network .

Feature of Grandstream GWN7052 Dual-Band Wi-Fi Router:

  • Built-in VPN support
  • Supports Mesh networking
  • Dual-band 2×2:2 MU-MIMO
  • Supports 100 concurrent Wi-Fi client devices
  • Powerful security features include guest network and network blacklist
  • Rich firewall features including Anti-DoS, traffic rules, NAT and ALG
  • 1.27Gbps aggregate wireless throughput with 5x auto-sensing Gigabit ports
  • Antihacking secure boot & critical data/control lockdown via digital signatures, and more
BrandGrandstream
Memory and NAT Sessions128MB RAM, 30K NAT sessions
NAT Routing & IPSec VPN Performance1Gbps NAT routing and 300Mbps IPSec VPN performance
Wi-Fi StandardsIEEE 802.11 a/b/g/n/ac
Antennas4 individual external antennas, 2 per band

2.4GHz, gain 5.0dBi

5 GHz, gain 5.0dBi

Wi-Fi Data Rates5G:

IEEE 802.11ac: 6.5 Mbps to 867 Mbps

IEEE 802.11n: 6.5 Mbps to 300 Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

IEEE 802.11n: 6.5 Mbps to 300 Mbps

IEEE 802.11b: 1, 2, 5.5, 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands2.4GHz radio: 2400 – 2483.5MHz

5GHz radio: 5150 – 5850MHz

*Not all frequency bands can be used in all regions

Channel Bandwidth2.4G: 20 and 40 MHz

5G: 20, 40 and 80 MHz

Wi-Fi and System SecurityWPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO2×2:2 2.4GHz

2×2:2 5GHz

Maximum TX Power2.4G: 23dBm

5G: 24dBm*Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity2.4G

802.11b: -96dBm@1Mbps, -88dBm@11Mbps;

802.11g: -93dBm @6Mbps, -75dBm@54Mbps;

802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;

5G

802.11a: -92dBm @6Mbps, -74dBm @54Mbps;

802.11n: 20MHz: -73dBm @MCS7; 802.11 n 40MHz: -70dBm @MCS7

802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;

SSIDs16 SSIDs total, 8 per radio (2.4ghz and 5 ghz)
Concurrent ClientsUp to 100 concurrent clients

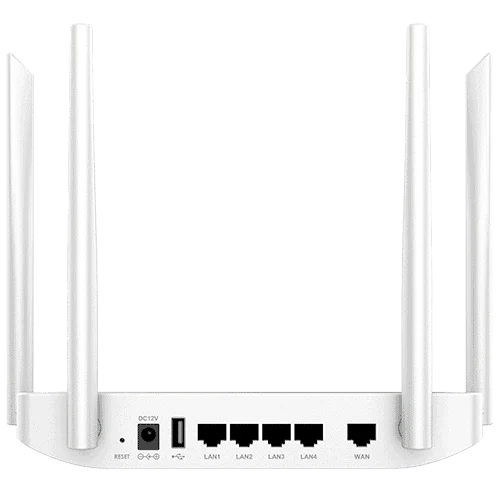

Network Interfaces1x Gigabit Ethernet WAN port and 4x Gigabit Ethernet LAN ports
Auxiliary Ports1x USB 2.0 port, 1x Reset Pinhole

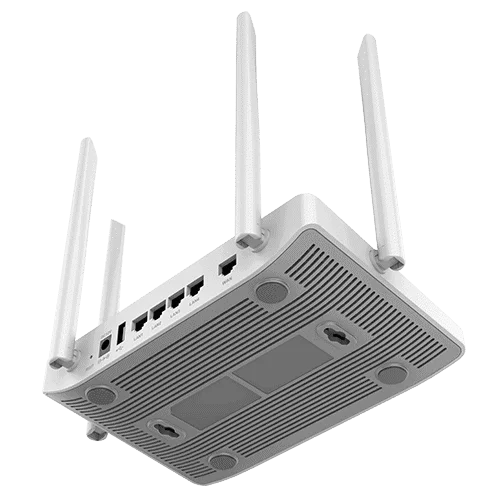

MountingDesktop and wall mounting
LEDs1 tri-color LED and 7x single-color LEDs for device tracking and status indication
Network ProtocolsIPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS802.11e/WMM, VLAN, TOS
FirewallDDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
VPNClient: L2TP, PPTP, IPSec,

OpenVPN Server: IPSec, OpenVPN

Network ManagementGWN7052 embedded controller can manage itself and up to 30 GWN APs; GWN.Cloud offers a free cloud management platform for unlimited GWN7052 routers and GWN APs (coming soon)
Power & Green Energy EfficiencyUniversal power adaptor included:

Input 100-240VAC 50-60Hz

Output: 12VDC 1A (12W);

EnvironmentalOperation: 0°Cto 50°C

Storage: -10°C to 60°C

Humidity: 10% to 90% Non-condensing

PhysicalUnit Dimension without antennas: 205mm(L)x130mm(W)x35.5mm(H);

Unit Dimension with antennas of 90°: 235.5mm(L)x145mm(W)x192mm(H); Unit Weight: 375g

Entire Package Dimension: 250mm(L)x251.5mm(W)x56mm(H); Entire Package Weight: 740g

Package ContentGWN7052/GWN7052F Router, Universal Power Supply, Network Cable, Quick Installation Guide
ComplianceFCC, CE, RCM, IC, UKCA
