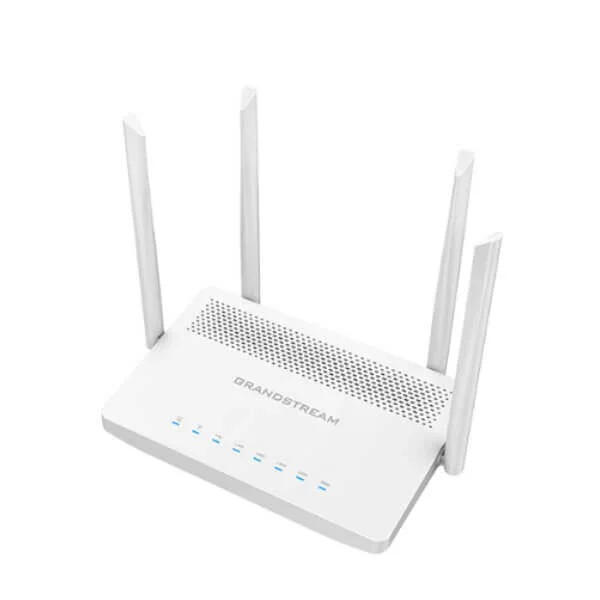

Grandstream GWN7052F Dual-Band Wi-Fi Router

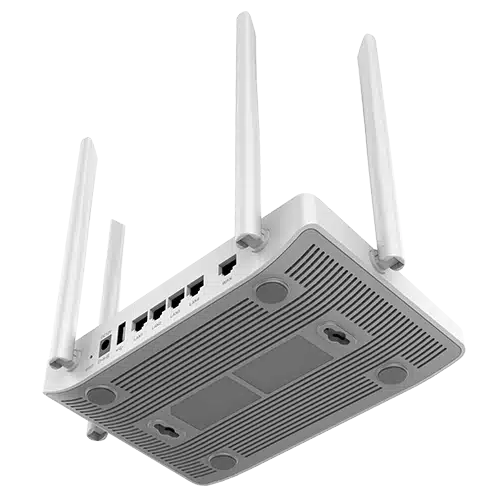

Grandstream GWN7052F Dual-Band 802.11ac, 2x2:2 MU-MIMO Wi-Fi Router - Image 2

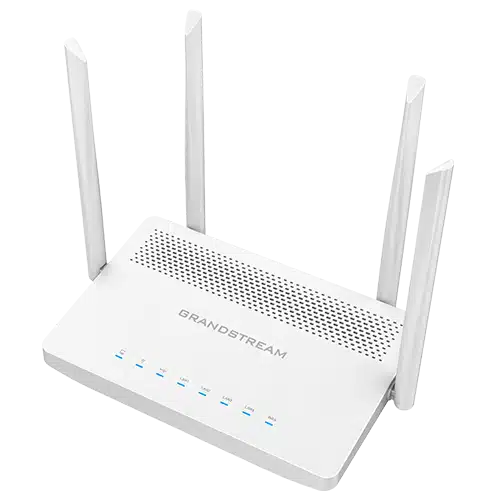

Grandstream GWN7052F Dual-Band 802.11ac, 2x2:2 MU-MIMO Wi-Fi Router - Image 3

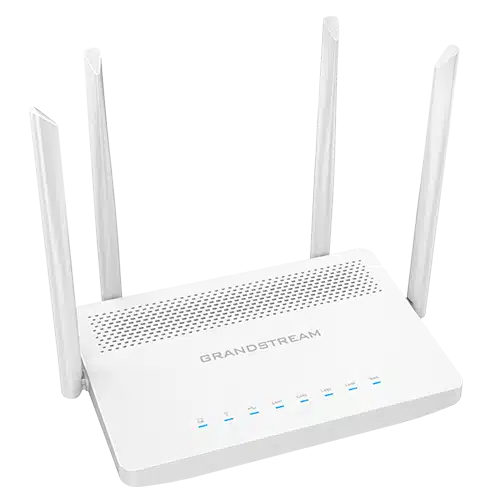

Grandstream GWN7052F Dual-Band 802.11ac, 2x2:2 MU-MIMO Wi-Fi Router - Image 4
, , , , ,

Grandstream GWN7052F Dual-Band 802.11ac, 2×2:2 MU-MIMO Wi-Fi Router

Grandstream
Compare

Got A Question? Contact Us.      Exclusive Offers
Great Deals And Huge Savings    Expert Technical Support

Grandstream GWN7052F_User_Guide (PDF)
Grandstream GWN7052F_QIG-1 Installation Guide (PDF)
Grandstream GWN7052F_English (PDF)







$82.00

Compare
$269.50 for 3 item(s)

The GWN7052/GWN7052F router offers dependable and secure networking solutions. Powered by 802.11ac Wi-Fi technology, it’s an ideal choice for small offices, home offices, and remote workers. With dual-band 2 × 2 MU-MIMO support, as well as wireless Mesh networking and wired AP connections, it ensures seamless connectivity for up to 100 wireless devices.

Driven by a dual-core 880MHz processor, this router delivers Wi-Fi speeds of up to 1.266 Gbps, making it perfect for bandwidth-demanding applications like 4K Ultra HD video streaming, web meetings, video conferences, online gaming, and more. Additionally, it supports VPN connections, allowing remote employees to securely access the corporate network from home or branch offices.

For enhanced security, the GWN7052/GWN7052F features enterprise-grade security measures, including unique security certificates and random default passwords. It also includes a built-in controller within the web user interface for easy installation and management. Plus, with upcoming support for GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform, managing your network will be even more convenient.

Key Features & Benefits of the GWN7052F Dual-Band Wi-Fi Router:

– Facilitates Dual-Band 802.11ac, 2×2:2 MU-MIMO Wi-Fi Router
– Equipped with 4 individual external antennas for optimal signal strength
– Supports up to 100 concurrent wireless clients and 16 SSIDs
– Provides 1.27Gbps aggregate wireless throughput
– Features 1 Gigabit SFP port and 4 Gigabit Ethernet ports
– Incorporates built-in VPN support for secure remote access
– Supports Mesh networking & wired AP connection for easy network expansion
– Implements powerful security features, including guest network and network block list
– Employs rich firewall features, including Anti-DoS and traffic rules
– GWN7052 embedded controller can manage itself and up to 50 GWN APs
– Comes with a 3-year warranty for peace of mind

Packaging Contents:

– GWN7052F Dual-Band Wi-Fi Router
– Power Supply Unit (EU PSU) 12V-1A (12W)
– Network cable
– Quick Installation Guide

Experience reliable and secure networking with the GWN7052/GWN7052F router, backed by Grandstream’s reputation for quality and performance.

Related Products

SKU: GWN7052F Categories: , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
Weight0.375 kg
Dimensions205 × 130 × 35.5 mm
Brands

Network connection type

Color

Grandstream GWN7052F Specifications

BrandGrandstream
Memory and NAT Sessions256MB RAM, 60K NAT sessions
NAT Routing & IPSec VPN Performance1Gbps NAT routing and 300Mbps IPSec VPN performance
Wi-Fi StandardsIEEE 802.11 a/b/g/n/ac
Antennas4 individual external antennas, 2 per band

2.4GHz, gain 5.0dBi

5 GHz, gain 5.0dBi

Wi-Fi Data Rates5G:

IEEE 802.11ac: 6.5 Mbps to 867 Mbps

IEEE 802.11n: 6.5 Mbps to 300 Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

IEEE 802.11n: 6.5 Mbps to 300 Mbps

IEEE 802.11b: 1, 2, 5.5, 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands2.4GHz radio: 2400 – 2483.5MHz

5GHz radio: 5150 – 5850MHz

*Not all frequency bands can be used in all regions

Channel Bandwidth2.4G: 20 and 40 MHz

5G: 20, 40 and 80 MHz

Wi-Fi and System SecurityWPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO2×2:2 2.4GHz

2×2:2 5GHz

Maximum TX Power2.4G: 23dBm

5G: 24dBm*Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity2.4G

802.11b: -96dBm@1Mbps, -88dBm@11Mbps;

802.11g: -93dBm @6Mbps, -75dBm@54Mbps;

802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;

5G

802.11a: -92dBm @6Mbps, -74dBm @54Mbps;

802.11n: 20MHz: -73dBm @MCS7; 802.11 n 40MHz: -70dBm @MCS7

802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;

SSIDs16 SSIDs total, 8 per radio (2.4ghz and 5 ghz)
Concurrent ClientsUp to 100 concurrent clients
Network Interfaces1x Gigabit SFP WAN port, 1x Gigabit Ethernet port (WAN/LAN configurable), and 3x Gigabit Ethernet LAN ports
Auxiliary Ports1x USB 2.0 port, 1x Reset Pinhole
MountingDesktop and wall mounting
LEDs1 tri-color LED and 7x single-color LEDs for device tracking and status indication
Network ProtocolsIPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS802.11e/WMM, VLAN, TOS
FirewallDDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
VPNClient: L2TP, PPTP, IPSec,

OpenVPN Server: IPSec, OpenVPN

Network ManagementGWN7052F embedded controller can manage itself and up to 50 GWN APs; GWN.Cloud offers a free cloud management platform for unlimited GWN7052F routers and GWN APs (coming soon)
Power & Green Energy EfficiencyUniversal power adaptor included:

Input 100-240VAC 50-60Hz

Output: 12VDC 1A (12W);

EnvironmentalOperation: 0°Cto 50°C

Storage: -10°C to 60°C

Humidity: 10% to 90% Non-condensing

PhysicalUnit Dimension without antennas: 205mm(L)x130mm(W)x35.5mm(H);

Unit Dimension with antennas of 90°: 235.5mm(L)x145mm(W)x192mm(H); Unit Weight: 375g

Entire Package Dimension: 250mm(L)x251.5mm(W)x56mm(H); Entire Package Weight: 740g

Package ContentGWN7052/GWN7052F Router, Universal Power Supply, Network Cable, Quick Installation Guide
ComplianceFCC, CE, RCM, IC, UKCA
