Grandstream GWN7062 Wi-Fi 6 Dual-Band Router: Experience Uninterrupted Network Performance | Provides Wi-Fi speeds up to 1.77 Gbps to Support up to 256 Wireless Devices

Add to Wishlist
Compare

$113.50

Compare
$156.27 for 3 item(s)

Grandstream GWN7062 Wi-Fi 6 Dual-Band Router: Experience Uninterrupted Network Performance | Provides Wi-Fi speeds up to 1.77 Gbps to Support up to 256 Wireless Devices

The Grandstream Wireless WiFi Router is a secure dual-band router powered by the latest Wi-Fi 6 (802.11ax) technology. This GWN7062 WiFi Router provides dual-band 2×2 MU-MIMO with DL/UL OFDMA technology and supports wireless Mesh networking and wired AP connections. Featuring a powerful 64-bit 1.2GHz quad-core processor to provide Wi-Fi speeds up to 1.77 Gbps is superb. It works for up to 256 wireless devices at the same time because of its powerful automation.

Grandstream Wireless WiFi Router features include 4K Ultra HD streaming, web meetings, video conferences, online gaming and more. The GWN7062 also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. Grandstream Wireless WiFi Router GWN7062 is the ideal router for a growing home network, small offices, and remote workers.

Features of Grandstream GWN7062 Wi-Fi 6 Dual-Band Router:

  • Dual-band 2×2 MU-MIMO with DL/UL OFDMA technology
  • 64-bit 1.2GHz quad-core processor
  • Provides Wi-Fi speeds up to 1.77 Gbps to support up to 256 wireless devices
  • Up to 32 total SSIDs, 16 per radio
  • 1x Gigabit Ethernet WAN port, 1x Gigabit Ethernet port (WAN/LAN configurable), and 3x Gigabit Ethernet LAN ports; 1x USB 3.0 port, 1x Reset button, 1x Sync button
  • Embedded controller can manage itself and up to 50 Grandstream GWN Series APs
  • Supports Mesh networks with Grandstream access points to provide network expansion
  • Built-in VPN support
SKU: GWN7062 Categories: , , , , ,
BrandGrandstream
Wi-Fi StandardsIEEE 802.11 a/b/g/n/ac/ax
Antennas4 individual internal antennas, 2 per band

2.4GHz: maximum gain 4.5dBi

5 GHz: maximum gain 5dBi

Wi-Fi Data Rates5G:

IEEE 802.11ax: 7.3 Mbps to 1201 Mbps

IEEE 802.11ac: 6.5 Mbps to 867 Mbps

IEEE 802.11n: 6.5 Mbps to 300 Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps

IEEE 802.11n: 6.5 Mbps to 300 Mbps

IEEE 802.11b: 1, 2, 5.5, 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands2.4GHz radio: 2400 – 2483.5 MHz

(2412-2472MHz are channel central frequency range; 2400-2483.5MHz is Frequency band)

5GHz radio: 5150 – 5850 MHz

*Not all frequency bands can be used in all regions

Channel Bandwidth2.4G: 20 and 40 MHz

5G: 20, 40 and 80 MHz

Wi-Fi and System SecurityWPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO2×2:2 2.4GHz

2×2:2 5GHz

Coverage RangeUp to 175 meters

*coverage range can vary based on environment

Maximum TX Power5G: 26dBm

2.4G: 27dBm*Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity2.4G

802.11b: -97dBm@1Mbps, -89dBm@11Mbps;

802.11g: -93dBm @6Mbps, -75dBm@54Mbps;

802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;

802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11

5G

802.11a: -93dBm @6Mbps, -75dBm @54Mbps;

802.11n: 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7

802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;

802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11

Memory and NAT Sessions512MB RAM, 120K NAT sessions
NAT Routing & IPSec VPN Performance2 Gbps NAT routing and 850Mbps IPSec VPN performance
SSIDs32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Wireless ClientsUp to 256 wireless clients

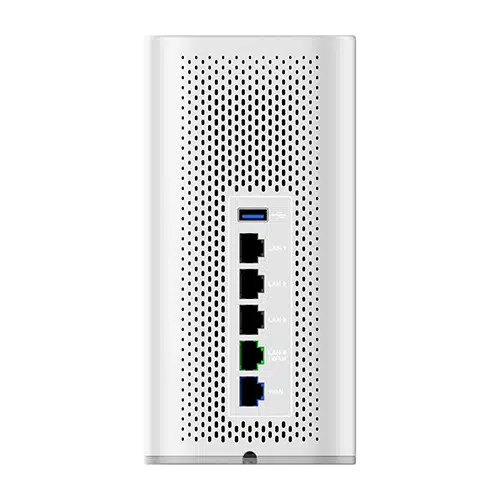

Network Interfaces1x Gigabit Ethernet WAN port, 1x Gigabit Ethernet port (WAN/LAN configurable), and 3x Gigabit Ethernet LAN ports
Auxiliary Ports1x USB 3.0 port, 1x Reset button, 1x SYNC button
MountingDesktop
LEDs1 tri-color LED and 7 single-color LEDs for device tracking and status indication
Network ProtocolsIPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS802.11e/WMM, VLAN, TOS
FirewallDDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
VPNClient: L2TP, PPTP, IPSec, OpenVPN

Server: IPSec, OpenVPN

Network ManagementGWN7062 embedded controller can manage it self and up to 50 GWN Aps

GWN.Cloud offers a free cloud management platform for unlimited GWN7062 routers and GWN APs (coming soon)

Power and Green Energy EfficiencyUniversal power adaptor included:

Input 100-240VAC 50-60Hz

Output: 12VDC 1.5A (18W);

EnvironmentalOperation: 0°Cto 50°C

Storage: -30°C to 60°C

Humidity: 10% to 90% Non-condensing

PhysicalUnit Dimension: 95mm(L)x95mm(W)x193mm(H); Unit Weight: 690g

Entire Package Dimension: 286mm(L)x126.5mm(W)x105mm(H); Entire Package Weight: 960g

Package ContentGWN7062 Router, Universal Power Supply, Network Cable, Quick Installation Guide
ComplianceFCC, CE, RCM, IC, UKCA
