Grandstream GWN7603 WiFi 5 Dual-Band Access Point

Grandstream GWN7603 WiFi 5 Dual-Band Access Point - Image 2

Grandstream GWN7603 WiFi 5 Dual-Band Access Point - Image 3

Gigabit Ethernet Switches, Grandstream Network Devices, IT Hardware Solutions, Network Switches, Networking Infrastructure, Outdoor Access Point, PoE Switches, Smart Switches, Wifi Access Point, Wifi Access Point Outdoor, Wifi Access Point PoE, Wifi Access Point Router, Wifi Access Point TP Link

Grandstream GWN7603 WiFi 5 Dual-Band Access Point

Name: Grandstream GWN7603 WiFi 5 Dual-Band Access Point
SKU: GWN7603
Availability: InStock

Datasheet_GWN7603_English

GWN76xx-User-Manual

GWN_AP_Deployment_Guide

Dual-band 2.4GHz & 5GHz WiFi with speeds up to 1.27 Gbps 2×2:2
MU-MIMO technology for optimal wireless performance
Supports over 100 concurrent WiFi clients
Integrated Gigabit Ethernet port for fast wired connections
WPA3 & WPA2-Enterprise security protocols for robust protection
Easy setup via Grandstream GWN.Cloud or GWN Manager
Seamless roaming and advanced QoS for uninterrupted connectivity

$63.55

Grandstream GWN7603 WiFi 5 Dual-Band Access Point

The Grandstream GWN7603 WiFi Access Point is a compact, dual-band 802.11ac Wave-2 wireless access point designed for small to medium-sized businesses, hotels, offices, and retail spaces. Offering strong WiFi coverage, integrated Gigabit network ports, and advanced security, it ensures reliable and high-speed wireless performance for modern networking environments.

Built for performance and efficiency, the Grandstream GWN7603 WiFi delivers powerful dual-band WiFi connectivity with speeds up to 1.27 Gbps. It supports up to 100 concurrent clients, advanced QoS, and secure WPA3 encryption, making it ideal for high-density indoor deployments.

Key Features of Grandstream GWN7603

Dual-band 2.4GHz & 5GHz WiFi with speeds up to 1.27 Gbps 2×2:2
MU-MIMO technology for optimal wireless performance
Supports over 100 concurrent WiFi clients
Integrated Gigabit Ethernet port for fast wired connections
WPA3 & WPA2-Enterprise security protocols for robust protection
Easy setup via Grandstream GWN.Cloud or GWN Manager
Seamless roaming and advanced QoS for uninterrupted connectivity
Compact and stylish design for discrete indoor placement

SKU: GWN7603 Categories: Gigabit Ethernet Switches, Grandstream Network Devices, IT Hardware Solutions, Network Switches, Networking Infrastructure, Outdoor Access Point, PoE Switches, Smart Switches, Wifi Access Point, Wifi Access Point Outdoor, Wifi Access Point PoE, Wifi Access Point Router, Wifi Access Point TP Link Tags: advanced wifi device, ap for large homes, dual band wifi access point, dual band wireless device, enterprise grade wifi, fast home wifi, fast wifi access point, gigabit ethernet access point, Grandstream GWN7603, grandstream network device, grandstream wifi 6 device, home networking device, home office wifi solution, home tech gear, home wifi upgrade, indoor wifi access point, long range wifi access point, mesh compatible wifi, Networking Equipment, networking gear for home, office networking equipment, poe wifi access point, professional wifi setup, router alternative, secure wifi device, small business wifi, smart tech gift, tech gift for IT pros, wifi 6 access point, wifi 6 ap, wifi 6 coverage extender, wifi 6 for businesses, wifi 6 for gaming, wifi 6 for smart home, wifi 6 network extender, wifi 6 with qos, wifi access point with poe, wifi for multiple devices, wifi for streaming, wifi for video conferencing, wifi mesh booster, wifi signal booster, wifi with mesh support, wireless access point for home, wireless access point for office, wireless access solution, wireless network gear, wireless upgrade solution, wpa3 wifi security Brand: Grandstream

Brands	Grandstream
Supported Cellular Technology	4G & 5G
Color	White
Network connection type	Wifi

Grandstream GWN7603 Technical Specifications

brand	Grandstream

Wi-Fi Standards	IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas	2 dual band internal antennas. Antenna 1 – 2.4GHz: gain 3.0dBi, 5GHz: gain 3.5dBi Antenna 2 – 2.4GHz: gain 3.5dBi, 5GHz: gain 3.0dBi
Wi-Fi Data Rates	IEEE 802.11ac: 6.5 Mbps to 867Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps; 400Mbps with 256-QAM on 2.4GHz IEEE 802.11b: 1, 2, 5.5, 11Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands	2.4 GHz Radio: 2412 – 2484 MHz 5 GHz Radio: 5150-5250 MHz, 5250-5350 MHz, 5470-5725 MHz, 5725-5850 MHz *Not all frequency bands can be used in all regions. The band 5150-5350 MHz is restricted to indoor use only in all EU states.
Channel Bandwidth	2.4G: 20 and 40MHz 5G: 20, 40, 80MHz
System Security	WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO	2×2:2 2.4GHz, 2×2:2 5GHz
Coverage Range	Up to 100 meters *Coverage range can vary based on environment
Maximum TX Power	5G: 22dBm 2.4G: 24dBm *Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity	2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs	16 SSIDs total, 8 per radio (2.4ghz and 5 ghz)
Concurrent Clients	100+

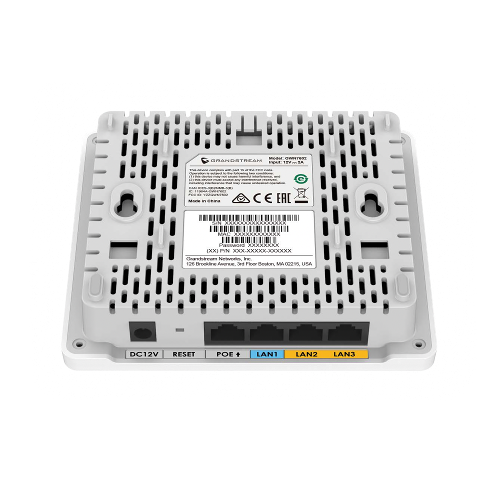

Network Interfaces	1 x 10/100/1000M uplink Ethernet port with POE/POE+ 2 x 10/100/1000M Ethernet port with PSE 1 x 10/100/1000M Ethernet port
Auxiliary Ports	1x Reset Pinhole, 1x Kensington lock
Mounting	Indoor wall mount, kits included
LEDs	1x tri-color LEDs for device tracking and status indication
Network Protocols	IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS	802.11e/WMM, VLAN, TOS
Network Management	Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN.Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency	PoE 802.3af/ 802.3at PSE max output: Total 12W power budget for LAN2/LAN3 Maximum Power Consumption: 6.5W (Excluding PoE Output)
Environmental	Operation: 0°C to 45°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing
Physical	Unit Dimension:135 x 115 x 30mm; Unit Weight: 215g Entire Package Dimension: 171 x 140 x 33mm; Entire Package Weight: 295g
Package Content	GWN7603 AP, Mounting Kits, Quick Installation Guide
Compliance	FCC, CE, RCM, IC
