Grandstream GWN7604 Indoor Wi-Fi 6 Access Point – Dual-Band, High-Speed Connectivity

Grandstream

Datasheet_GWN7604_English 11.10.2024 v1.3

GWN7604-QIG-ML

GWN76xx-User-Manual

GWN_AP_Deployment_Guide

  • 3Gbps Wireless Throughput with 4x Gigabit ports
  • 100m Coverage Range for large spaces
  • PoE/PoE+ Auto Detection for power adaptation
  • Secure Boot & Digital Signatures with unique device security
  • Supports 256 Concurrent Clients for high device capacity
  • Advanced QoS for low-latency app performance
  • Wi-Fi 6 (802.11ax) for faster speeds and better efficiency
  • Dual-Band Support (2.4GHz & 5GHz) for fast, reliable connectivity
  • Gigabit Ethernet Ports for high-speed wired connections

$70.72

Compare

Grandstream GWN7604 Indoor Wi-Fi 6 Access Point – Dual-Band, High-Speed Connectivity

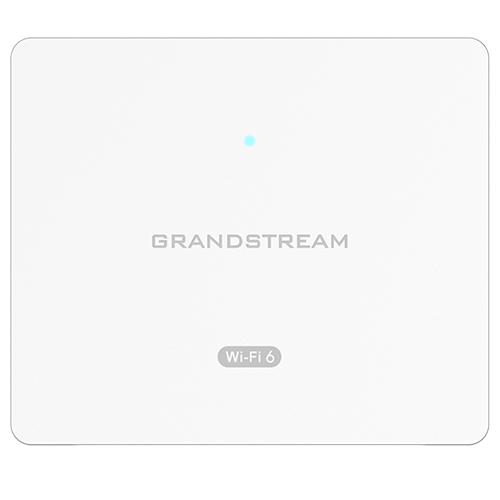

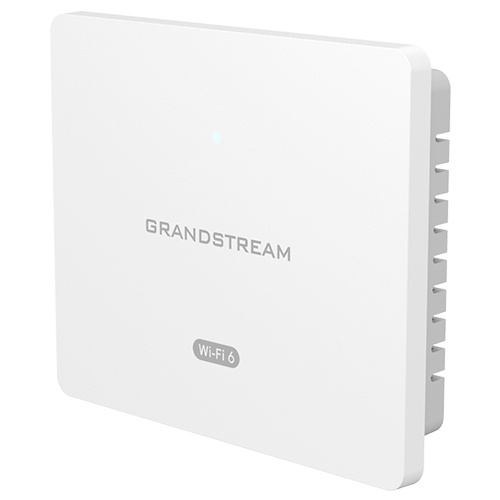

The Grandstream GWN7604 is a compact indoor WiFi 6 access point. It delivers fast, reliable dual-band wireless performance. Wi-Fi 6 boosts speed, range, and device capacity. Ideal for homes and small offices. Handle HD streaming, video calls, and online tasks with ease. Simple setup makes it user-friendly. Built for stability in high-demand networks.

Enjoy seamless coverage with advanced mesh support with the Grandstream GWN7604 Wi-Fi 6 Access Point. Dual-band ensures smooth switching between 2.4GHz and 5GHz. Gigabit ports allow fast wired connections. WPA3 security keeps your network safe. Perfect for growing smart environments. Upgrade to future-ready Wi-Fi with the GWN7604.

Key Features of Grandstream GWN7604

  • 3Gbps Wireless Throughput with 4x Gigabit ports
  • 100m Coverage Range for large spaces
  • PoE/PoE+ Auto Detection for power adaptation
  • Secure Boot & Digital Signatures with unique device security
  • Supports 256 Concurrent Clients for high device capacity
  • Advanced QoS for low-latency app performance
  • Wi-Fi 6 (802.11ax) for faster speeds and better efficiency
  • Dual-Band Support (2.4GHz & 5GHz) for fast, reliable connectivity
  • Gigabit Ethernet Ports for high-speed wired connections
  • Enhanced Capacity for simultaneous device handling
  • Automatic Band Steering for optimal device management
  • High Coverage Range for medium to large areas
  • Easy Setup & Management via user-friendly platform
  • Mesh Network Support for extended coverage
  • WPA3 Security for strong network protection
SKU: GWN7604 Categories: , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
Brands

Supported Cellular Technology

4G & 5G

Color

Communication Standard

802.11ax

Network connection type

Grandstream GWN7604 Technical Specifications

brandGrandstream
Wi-Fi StandardsIEEE 802.11a/b/g/n/ac/ax
Antennas2 x dual-band internal antennas,1x 5G internal antenna

Antenna1, 2.4G gain 3.0dBi, 5G gain 3.5dBi

Antenna2, 2.4G gain 3.5dBi, 5G gain 3.0dBi

5G Antenna, gain 4.5dBi

Wi-Fi Data Rates5G:

IEEE 802.11ax: 7.3 Mbps to 2402 Mbps;

IEEE 802.11ac: 6.5 Mbps to 1732 Mbps;

IEEE 802.11n: 6.5Mbps to 300Mbps;

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;

IEEE 802.11n: 6.5Mbps to 300Mbps;

IEEE 802.11b: 1, 2, 5.5, 11 Mbps;

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands2.4 GHz Radio: 2412 – 2483.5 MHz

5GHz Radio: 5150 – 5895 MHz

*Not all frequency bands can be used in all regions. The band 5150-5350 MHz is restricted to indoor use only in all EU states.

Channel Bandwidth2.4G: 20 and 40 MHz

5G: 20, 40, 80, and 160 MHz

System SecurityWEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO2×2:2 2.4GHz

3×3:2 5GHz

Coverage RangeUp to 100 meters

*Coverage range can vary based on environment

Maximum TX Power5G: 26dBm

2.4G: 24dBm

*Maximum power varies by country, frequency band, and MCS rate

Receiver Sensitivity5G

802.11a: -92dBm @6Mbps, -74dBm @54Mbps;

802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;

802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 ; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @ MCS11;802.11ax 160MHz: -52dBm@ MCS11

2.4G

802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;

802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;

802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;

SSIDs32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent Clients256

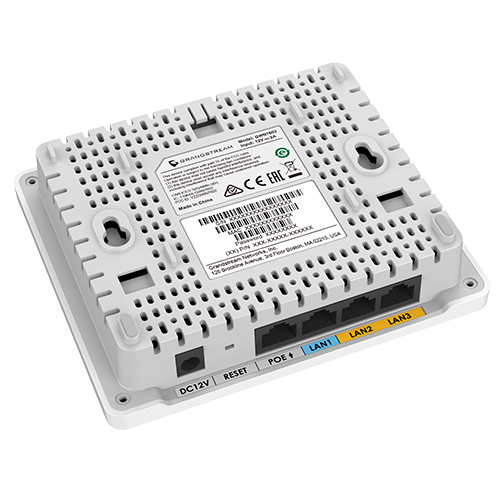

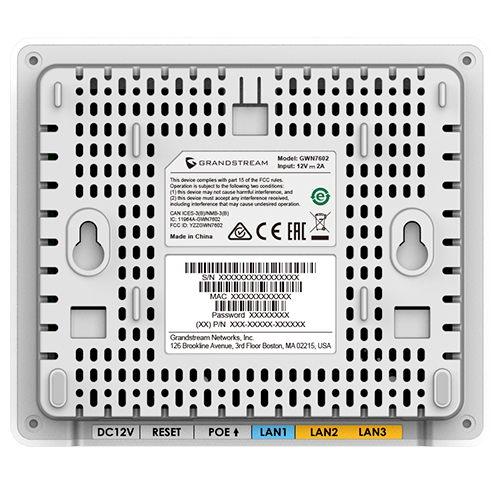

Network Interfaces1 x 10/100/1000M uplink Ethernet port with POE/POE+

2 x 10/100/1000M Ethernet port with PSE

1 x 10/100/1000M Ethernet port

Auxiliary Ports1x Reset Pinhole, 1x Kensington lock
MountingIndoor wall mount, kits included
LEDs1x tri-color LEDs for device tracking and status indication
Network ProtocolsIPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS802.11e/WMM, VLAN, TOS
Network ManagementEmbedded controller can manage up to 50 local GWN APs

GDMS Networking offers a free cloud management platform for unlimited GWN APs

GWN.Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy EfficiencyPoE 802.3af/ 802.3at

PSE max output: Total 12W power budget for LAN2/LAN3

Maximum Power Consumption: 7.5W (Excluding PoE Output)

EnvironmentalOperation: 0°C to 45°C

Storage: -10°C to 60°C

Humidity: 10% to 90% Non-condensing

PhysicalUnit Dimension:135 x 115 x 30mm; Unit Weight: 253g

Entire Package Dimension: 171 x 140 x 33mm; Entire Package Weight: 358g

Package ContentGWN7604 AP, Mounting Kits, Quick Installation Guide
ComplianceFCC, CE, RCM, IC
