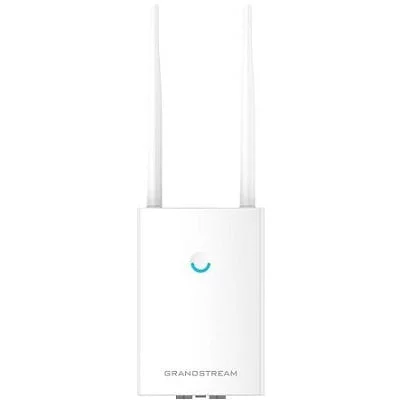

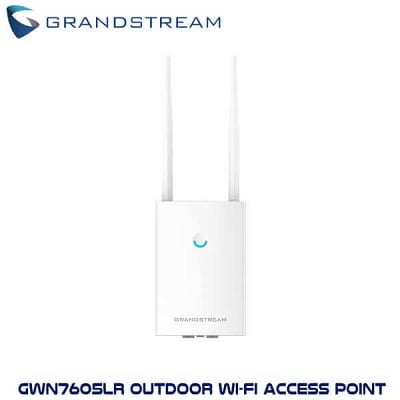

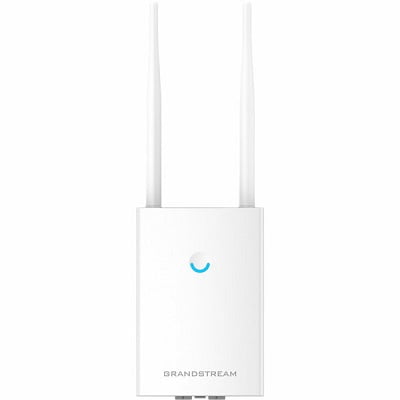

Grandstream GWN7605LR Outdoor Long Range Dual Band Access Point

Grandstream GWN7605LR Technical Specifications

WiFi Standards

• IEEE 802.11a/b/g/n/ac (Wave-2)

Antennas

• 2 dual band external antennas
• 2.4GHz, gain 3.5dBi
• 5 GHz, gain 3.5dBi

WiFi Data Rates

• IEEE 802.11ac: 6.5 Mbps to 867 Mbps
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• IEEE 802.11n: 6.5Mbps to 300Mbps
• IEEE 802.11b: 1, 2, 5.5, 11Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

• 2.4GHz Radio: 2412 – 2484 MHz
• 5 GHz Radio: 5180-5825 MHz
• *Not all frequency bands can be used in all regions

Channel Bandwidth

• 2.4G: 20 and 40MHz
• 5G: 20, 40 and 80 MHz

System Security

• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

• 2×2:2 2.4GHz (MIMO)
• 2×2:2 5GHz (MU-MIMO))

Coverage Range

• Up to 250 meters
• *coverage range can vary based on the environment

Maximum TX Power

• 2.4G: 24 dBm
• 5G: 22dBm
• *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

• 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
• 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

SSIDs

• 8 SSID per radio

Concurrent Clients

• 100+

Network Interfaces

• 2x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

• 1x Reset Pinhole

Mounting

• Outdoor metal bar mount or wall mount, kits included

LEDs

• 1x tri-color LEDs for device tracking and status indication

Network Protocols

• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

• 802.11e/WMM, VLAN, TOS

Network Management

• Embedded controller can manage up to 50 local GWN APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN APs
• GWN Manager (BETA) offers premise-based software controller for up to 3,000 GWN APs

Power And Green Energy Efficiency

• PoE 802.3af/ 802.3at;
• Maximum Power Consumption: 10.16W

Environmental

• Operation: -30°C to 70°C
• Storage: -30°C to 80°C
• Humidity: 5% to 95% Non-condensing

Physical

• Unit Dimension: 358.3mm(L)*115mm(W)*45.3mm(H)
• Unit Weight: 500g
• Entire Package Dimension: 258 × 247× 86mm
• Entire Package Weight: 655.3g

Package Content

• GWN7605LR 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide

Weatherproof Grade

• IP66-level weatherproof capability when installed vertically

Compliance

• FCC, CE, RCM, IC
