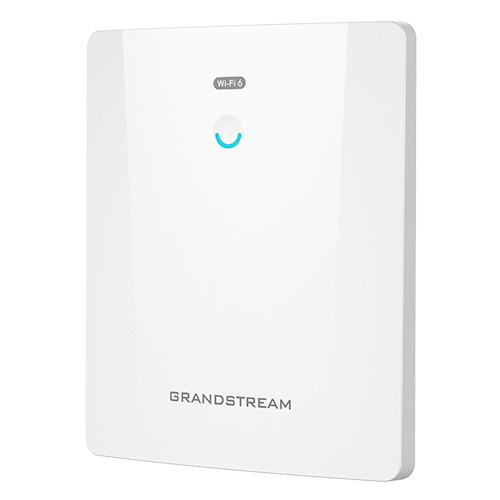

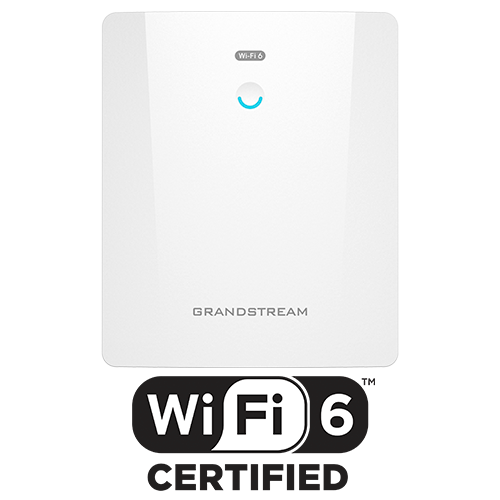

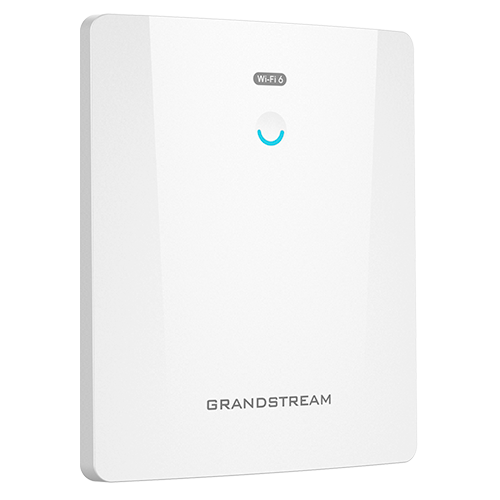

Grandstream GWN7664ELR Dual-Band Outdoor Wi-Fi 6 Access Point
Grandstream GWN7664ELR Dual-Band Outdoor Wi-Fi 6 Access Point - Image 2
Grandstream GWN7664ELR Dual-Band Outdoor Wi-Fi 6 Access Point - Image 3
Grandstream GWN7664ELR Dual-Band Outdoor Wi-Fi 6 Access Point - Image 4
Grandstream GWN7664ELR Dual-Band Outdoor Wi-Fi 6 Access Point - Image 5
, , , , , , , , , , , ,

Grandstream GWN7664ELR Dual-Band Outdoor Wi-Fi 6 Access Point

Grandstream
Compare

Datasheet_GWN7664ELR_English

GWN76xx-User-Manual

GWN7664ELR-QIG-ML

  • Wi-Fi Standard: 802.11ax (Wi-Fi 6) with dual-band support (2.4GHz and 5GHz)
  • High Capacity: Supports over 750+ concurrent clients
  • Long Range: Extended outdoor coverage with built-in antennas
  • Wireless Speed: Up to 3.55 Gbps aggregate throughput
  • MU-MIMO Technology: 4×4:4 MIMO on both bands for high client density

$187.50

Compare

Grandstream GWN7664ELR Dual-Band Outdoor Wi-Fi 6 Access Point

The Grandstream GWN7664ELR Wi-Fi 6 Access Point is a high-performance 802.11ax Wi-Fi 6 outdoor access point designed for large-scale deployments that require powerful, long-range coverage. With support for dual-band 4×4:4 MU-MIMO, advanced QoS, and seamless roaming, the GWN7664ELR is ideal for campuses, enterprise environments, and outdoor public spaces.

Extend your network outdoors with the Grandstream GWN7664ELR. This long-range Wi-Fi 6 access point delivers blazing-fast speeds, wide coverage, and reliable performance in any weather. Perfect for business parks, school campuses, and outdoor venues, it supports up to 750+ concurrent clients and ensures smooth connectivity wherever you need it most.

Key Features of Grandstream GWN7664ELR

  • Wi-Fi Standard: 802.11ax (Wi-Fi 6) with dual-band support (2.4GHz and 5GHz)
  • High Capacity: Supports over 750+ concurrent clients
  • Long Range: Extended outdoor coverage with built-in antennas
  • Wireless Speed: Up to 3.55 Gbps aggregate throughput
  • MU-MIMO Technology: 4×4:4 MIMO on both bands for high client density
  • Seamless Roaming: Ideal for deployments with mobile users
  • Durability: Weatherproof and dustproof IP67-rated enclosure
  • Power Options: Supports PoE and PoE+ for flexible deployment
  • Security: Enterprise-grade security features including WPA3
  • Management: GWN.Cloud and embedded controller for centralized or local management
SKU: GWN7664ELR Categories: , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
Brands

Supported Cellular Technology

4G & 5G

Color

Network connection type

Grandstream GWN7664ELR Technical Specifications

brandGrandstream
Wi-Fi StandardsIEEE 802.11 b/g/n/ac/ax
Antennas8 individual internal antennas

2.4GHz, gain 5.5dBi

5GHz, gain 6.5dBi

Wi-Fi Data Rates5G:

IEEE 802.11ax: 7.3 Mbps to 4804 Mbps

IEEE 802.11ac: 6.5 Mbps to 3467 Mbps

IEEE 802.11n: 6.5Mbps to 600 Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

IEEE 802.11ax: 7.3 Mbps to 1147 Mbps

IEEE 802.11n: 6.5Mbps to 600Mbps

IEEE 802.11b: 1, 2, 5.5, 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands2.4GHz radio: 2400 – 2483.5 MHz

5GHz radio: 5150-5850 MHz

*Not all frequency bands can be used in all regions.

Channel Bandwidth2.4G: 20 and 40 MHz (x4)

5G: 20, 40,80 and 160 MHz (x4)

System SecurityWPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password

per device

MU-MIMO4×4:4 2.4GHz, 4×4:4 5GHz
Coverage RangeUp to 300 meters

*Coverage range can vary based on environment

Maximum TX Power5G: 23.5dBm

2.4G: 24.5dBm

*Maximum power varies by country, frequency band, and MCS rate

Receiver Sensitivity2.4G

802.11b: -97dBm@1Mbps, -89dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;

802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;

802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11

5G

802.11a: -93dBm @6Mbps, -75dBm @54Mbps;

802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7

802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;

802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11;

802.11ax 160MHz:-55dBm@MCS11;

SSIDs32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients512

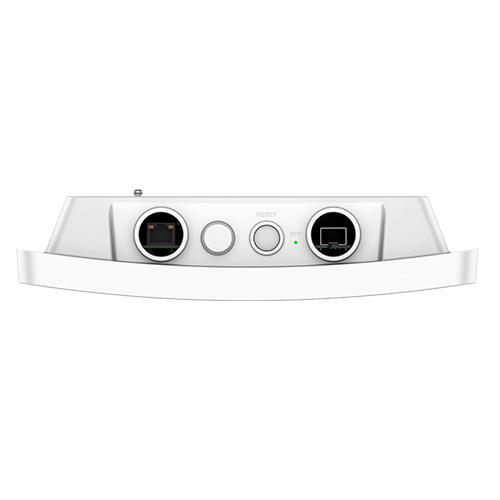

Network Interfaces1x 2.5G RJ45 Port and 1x 2.5G SFP Port
Auxiliary Ports1x Reset Button

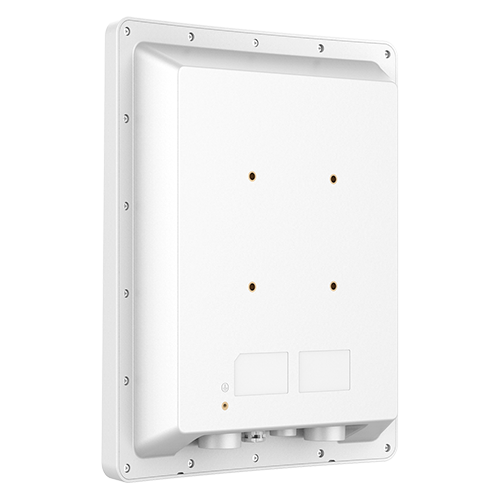

MountingWall mount or pole mount, kits included (The mounting kits can be rotated and adjusted by 60°)
LEDs1 tri-color LEDs for device tracking and status indication, 1 single-color LED for SFP indication
Network ProtocolsIPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS802.11e/WMM, VLAN, TOS
Network ManagementEmbedded controller can manage up to 50 local GWN APs

GWN.Cloud offers a free cloud management platform for unlimited GWN APs

GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy EfficiencyPoE 802.3at;

Maximum Power Consumption: 24W

EnvironmentalOperation:-30°Cto 60°C

Storage: -30°C to 60°C

Humidity: 10% to 90% Non-condensing

PhysicalUnit Dimension: 260mm(L)x310mm(W)x59mm(H); Unit Weight: 1.445kg

Entire Package Dimension: 469mm x 377mm x 137mm; Entire Package Weight: 3.06kg

Package ContentGWN7664ELR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
Weatherproof GradeIP67-level weatherproof capability
ComplianceFCC, CE, RCM, IC
