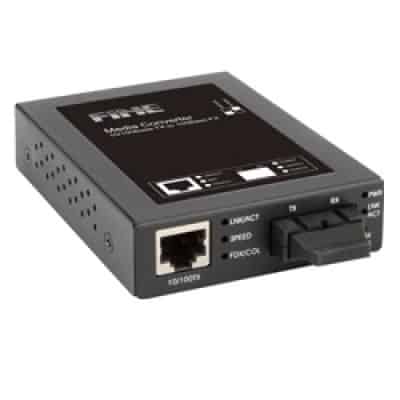

Media Converter

Name: Media Converter
SKU: 5487FB8/28-9-1-1-1
Availability: InStock

Availability:

100 in stock

$83.46 ~~$104.35~~

100 in stock

This product: Media Converter - $83.46

Magnetic Lock for Glass Doors Designed for Frameless Doors - $29.57

RFID Proximity Access Card, Mifare , Blank Printable Swipe Cards Compatable With the Vast Majority of Access Control Systems - $0.70

$113.72 for 3 item(s)

FEC-202 Series

Compliant with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX/100BaseFX Standards
One 10/100BaseTX Ethernet TP Port and One 100BaseFX Ethernet Fiber Port
One 100BaseFX Fiber Port can support either Multi (SC) or Single (SC) Mode
TP Port can support Half/Full-Duplex, Auto-MDI/MDI-X and Auto-Negotiation
Providing a slide switch for Full- and Half-Duplex selection on FX Port
Multiple Fiber Connectors
Providing 19” Converter Chassis for up to 16 slots with redundant power supply for optional expansion use

Related Products Topics .

SKU: 5487FB8/28-9-1-1-1 Category: Accessories

Standards	IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX/100BaseFX
Features	Number of Ports: 1 × 10/100BaseT with RJ-45 Connector 1 × 100BaseFX with Fiber Connector (Multi/Single Mode, ST/SC, LC, MT-RJ Connector)
Transmission Media	10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m 100BaseTX Cat. 5 UTP/STP, up to 100 m
Transmission Media	100BaseFX: 50/125μm or 62.5/125μm multi mode ST/SC-Type Fiber optic cable, up to 2 km 9/125μm or 10/125μm Single Mode Fiber optic cable
Data Transfer Rate	Ethernet: 10Mbps/Half-Duplex 20Mbps/Full-Duplex Fast Ethernet: 100Mbps/Half-Duplex 200Mbps/Full-Duplex
Led Indicators	Per Port:(TX): Link/Act, Speed, FDX/COL (FX): Link/Act, FDX/COL Per Unit: Power
Power Requirement	DC 5V/2A
Power Consumption	10 Watts (Max)
Dimensions	130 × 77 × 24 mm (L x W x H)
Weight	0.28 kg
Operating Temperature	0 to 40℃
Storage Temperature	-20 to 90℃
Humidity	10 to 90% RH (non-condensing)
