Infrared Touchless Exit Button
Exit Touchless buttons are an essential part of access control applications. It is a spring-loaded, button which is often mounted on the wall of exit door or gate. The button comes in different styles. It can be a simple or large button, green, or button that illuminate LED lights. The exit button is used to “request to exit” devices in the access control system that are used on doors, exits, gates, automation control, etc.
One of the advantages of the push to exit button is the versatility it offers. Touchless Exit buttons are suitable for use in electronic locking solution which needs to provide a free exit option on the door. The exit button can be used on fire doors, gates, or anywhere you can install an access control system. It can be used as exit devices in residential, commercial, and industrial buildings.
In some cases, Touchless to exit buttons can be used when the access control panel fails to unlock the door. It can be used when the door’s handle isn’t suitable, or the user is not able to use the handle physically. However, the button must be able to hold enough power for the door to open freely.
SKU: DNT-5487FB16-1 - Access Control, Accessories
Metal Exit button
Features & Benefits
- Dimensions: 86Lx86Wx20H(mm)
- Standard Structure: Fireproof Material,
- Current Rating: 3A@36VDC Max
- Output Contact: NCCOM
- Mechanical Life: 1000000 tested
- Suitable for Door: Hollow Door
- Operating temp: 10~+55.C(14-131F)
- Operating Humidity: 0-95% (non- condensing)
- Panel Material: Fireproof Material
- Weight: 0.15kg
SKU: DNT-5487FB15-1
Door Push Buttons
Compare

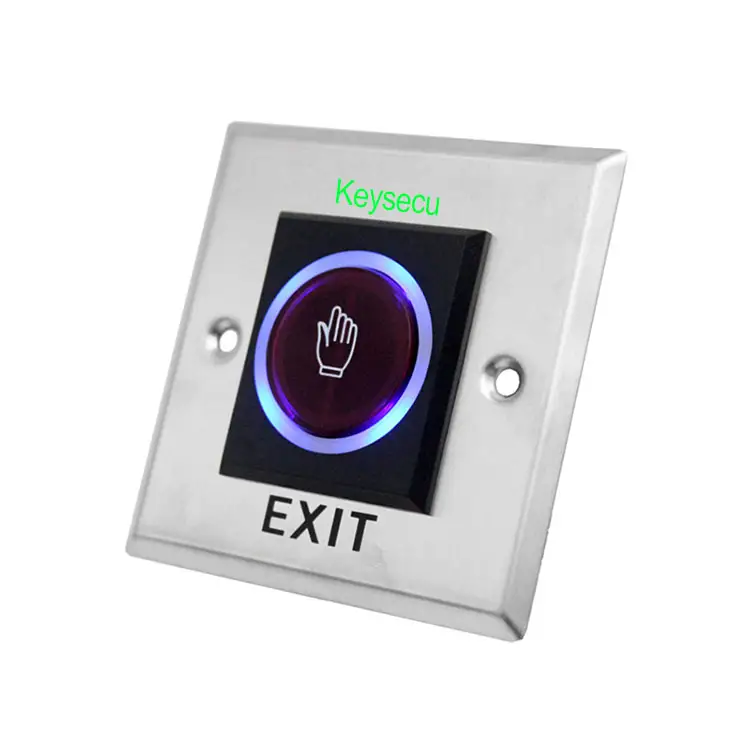

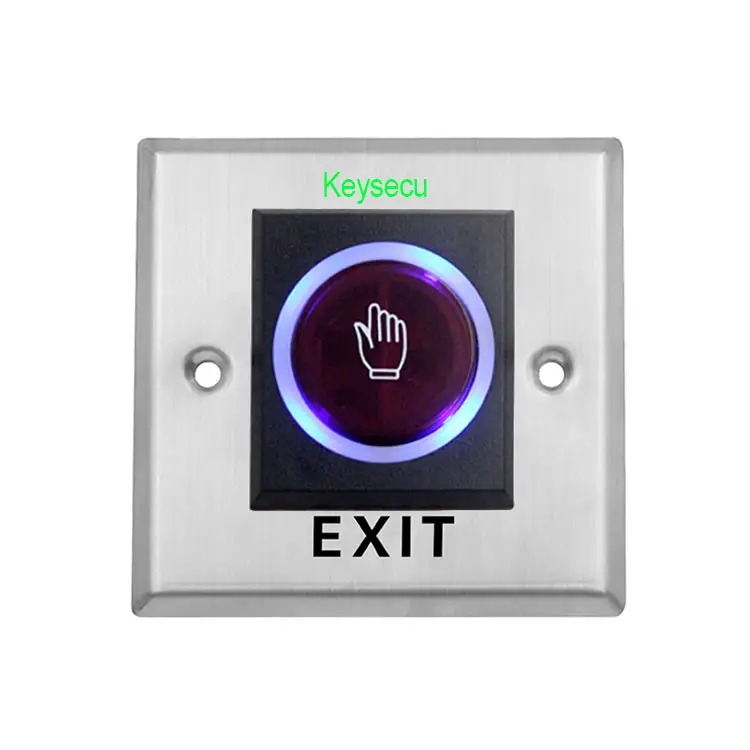

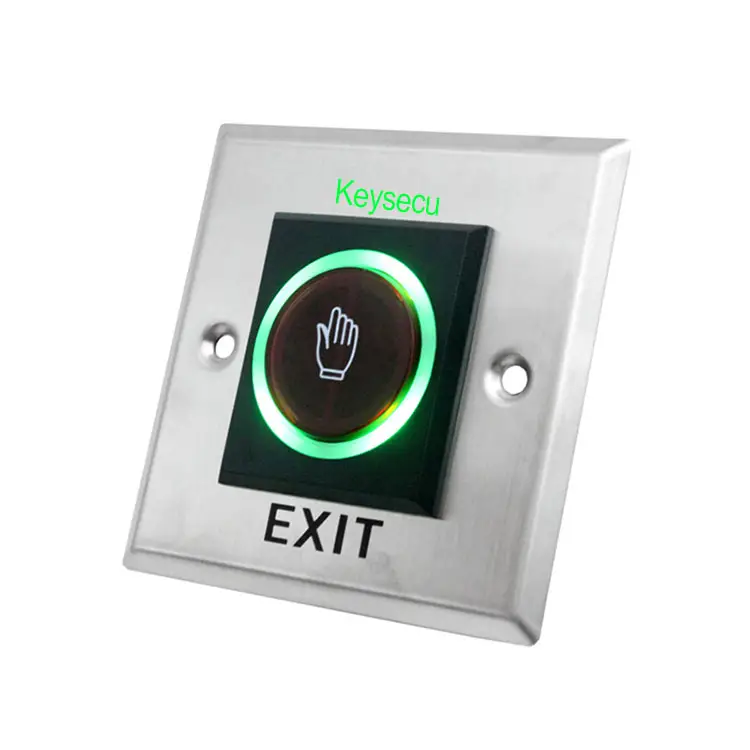

Keysecu Automatic Door Realeas Access Control Exit Button Infrared Sensor NO Touch Touchless Exit Switch For Door Opening
Availability:
5 in stock
Key Features:
$6.00
5 in stock
$26.78 for 3 item(s)
For Support Contact Us
Brands | |
---|---|
Case Material | Metal |
Color | |
Application | Indoor, Exposed Mounting |
Product Paramenters
Model Number | K-K2 |
Product Name | Infrared Sensor NO Touch Touchless Exit Switch |
Material | Stainless Steel |
Product size | 86*86mm |
Power supply voltage | 12-24V |

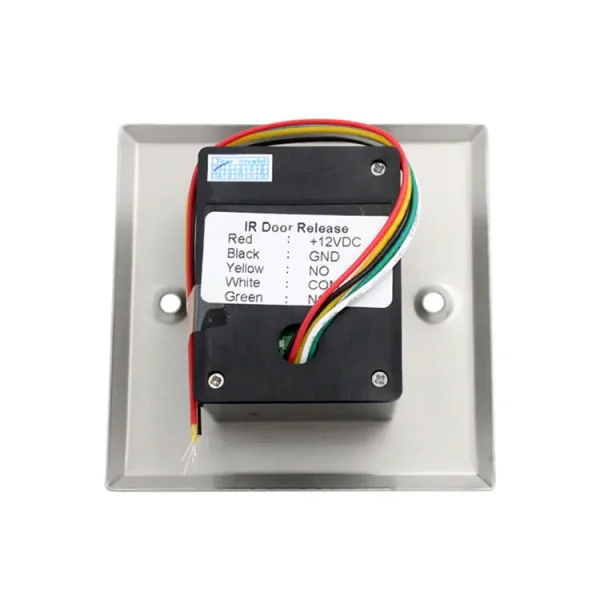

Contact output | NO/NC/COM /LED |
Maximum current | 3A / 125-250VAC |
Endurance test | 100,000 times |
Installation: | hollow door frame (concealed installation) |
Packing parameters | 100pcs/15kg/51*43*33cm/ctn |
