100A GXPR GXB1-125 Smart Breaker Wifi MCB 3-Pole Without Energy Monitor

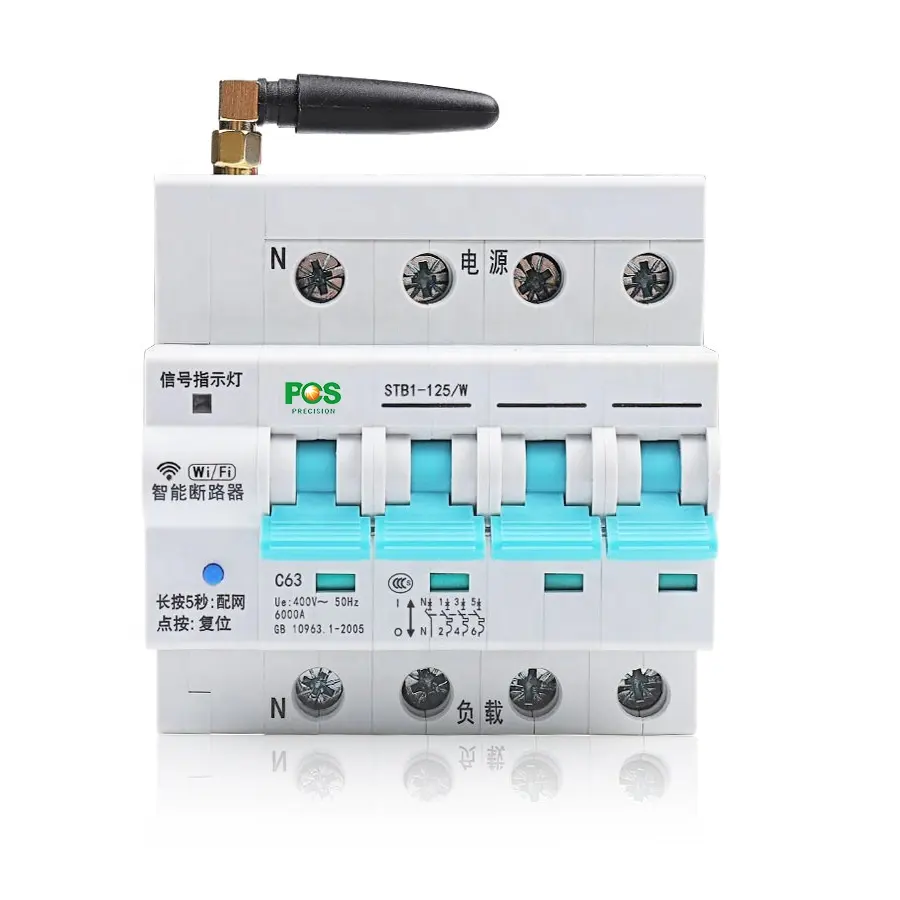

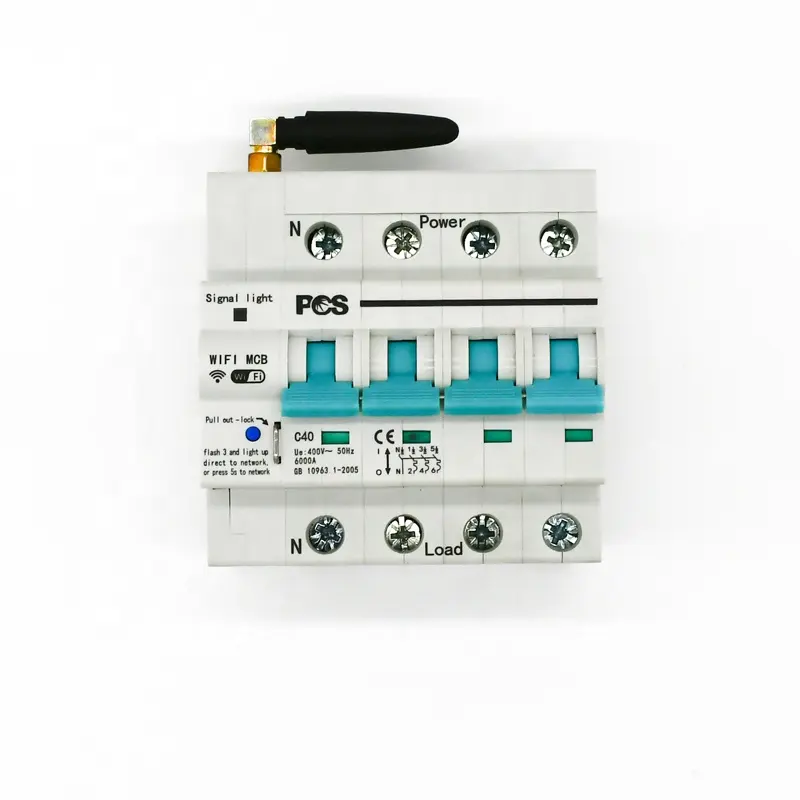

External Antena
Overload Protection
On/ Off Remotely /Auto shut off when fault is detected
Real Time Status Monitoring
Android & iOS Compatible
Set Schedule/Countdown
Alexa, Google Assistance, Smart Specs etc
Rated Load: 230-400V/
Breaking Capacity: 6KA.
Rated Current: 100A.
Protection Degree: IP20,IP40
Insulation Voltage: 500V

$68.00

This product: 100A GXPR GXB1-125 Smart Breaker Wifi MCB 3-Pole Without Energy Monitor - $68.00

GXPR GXB1-63M 2P Smart WIFI Circuit Breaker - $20.00

Single phase overload short circuit mcb circuit breaker with energy meter - $140.30

$228.30 for 3 item(s)

GXPR GXB1-125 Smart Breaker Wifi MCB 3p 100A Relay Timer Without Energy Monitor

Smart circuit breakers are a new and innovative way to help protect your home from electrical hazards. These devices automatically shuts off your power if they detect an abnormality in your electrical current.

Smart Breaker Wifi is the perfect solution for those looking for a reliable and safe way to protect their electrical systems. This innovative piece of technology offers superior overload protection, along with a built–in GFCI (ground fault circuit interrupter) for added safety. You can rest easy knowing that Smart Breaker Wifi will automatically shut down power in the event of an overload, and its GFCI will protect you from electrical shocks. Plus, you don‘t have to worry about energy monitoring, as this cutting–edge device comes without that capability.

So if you’re looking for a smarter, safer way to power your home or office, the WiFi Smart Circuit Breaker is the perfect solution.

Product Paramenters

Rated voltage	AC230v(1p,2p) AC400V(3p,4p)
Rated frequency	50Hz
Number of poles	1P,2P,3P,4P
Frame rated current	125A
Rated current (In)	10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A
Instantaneous tripping curve	C
Rated short-circuit breaking capacity(Ics)	6KA
Rated impulse withstand voltage	6kv
Mechanical life	10,000 times
Electrial life	6000 times
Standard	GB/T10963.1/IEC 60989-1
Pollution level	Level 2
Protection level	IP20
EMC performance	in line with GB/T18449
Surge withstand	in accordance with GB/T17626.5 voltage 4.0KV
Salt spray bearing	in line with GB/T2423.17 48h
Dust bearing	in line with GB/T4208 8h
Specified use temperature	-25℃~+65℃
Maxi mum wiring capacity	50mm2
Tightening torque	4-5Nm
