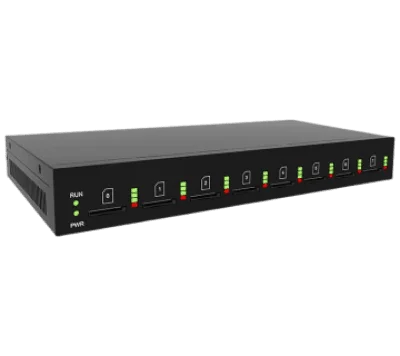

Dinstar UC2000-VE-8B 8 Port GSM VoIP Gateway

Availability:

Out of stock


Key Features

    • Support to different mobile networks
    • GSM: 850/900/1800/1900MHz
    • SMS to Email and Email to SMS

Downloads Documents & Manuals
 Dinstar UC2000 VE Datasheet (PDF)

$953.00 $955.84

Out of stock

The Dinstar UC2000-VE-8B 8 Port GSM VoIP Gateway  provides voice quality with high definition security and flexibility. In addition, the unit supports a wide range of SIM cards from different providers, making it compatible with most networks in the world.

The Dinstar UC2000-VE-8B 8 port multi-functional gateway helps to effectively implement calls between 2G/3G mobile networks and VoIP networks. Furthermore, with its newly designed pop-up SIM card slot, users can change the SIM card easily without dismantling the device. Moreover, with the opened API feature of this gateway, you can build your application software that will allow for sending SMS messages or USSD messages. This product has excellent features and hardware design performance at a low cost! If you’re looking for an efficient but affordable solution, consider this product today.

Dinstar UC2000-VE-8G 8 Port GSM VoIP Gateway is an ideal gateway for small or large offices as it provides the flexibility of usage with its wide range of features and benefits:

Dinstar UC2000-VE-8B 8 Port GSM VoIP Gateway Key Features

  • 4 or 8 GSM/CDMA/WCDMA Channels supported on UC2000-VE
  • Support to different mobile networks:
  • GSM: 850/900/1800/1900MHz;
  • CDMA: 800MHz; WCDMA: 850/900/1900/2100MHz
  • HTTP API for SMS Application Integration
  • SMS to Email and Email to SMS
  • Flexible Dial Rules and Manipulation Rules
Category:

Dinstar UC2000-VE-8G-M – Technical Specifications

Voice Processing

  • Protocol: SIP v2.0, RFC3261
  • Codecs:G.711A/U law, G.723.1, G.729A/B
  • Silence Suppression
  • Comfort Noise Generator(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation: G.168 with up to 128ms
  • Dynamic Jitter Buffer
  • DTMF: RFC2833, SIP Info
  • Call Progress Tone Generation
  • Programmable Gain Control
  • NAT: STUN, Dynamic NAT, Static NAT

Mobile

  • SIM Interface: 1.8v, 3.0v SIM Interface
  • Frequency Range:
    GSM: 850/900/1800/1900MHz;
    CDMA: 800MHz
    WCDMA:850/900/1900/2100MHz
  • USSD Encoding: Unicode/ASCII
  • HTTP API for SMS
  • Polarity Reversal
  • PIN Modify
  • CID/CLIR
  • SMS Send and Receive
  • SMS to Email
  • Call Waiting/Call Back
  • Call Forward
  • GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR

Software Features

  • Calling Type:
    Mobile to VoIP, VoIP to Mobile
  • SIP Trunk and Trunk Group
  • Caller/Called Number Manipulation Rules
  • SIP Codes Mapping
  • White/Black List
  • PSTN Hotline
  • VoIP Hotline
  • Abnormal Call Monitor
  • Call Minutes Limitation for Ports/Single Call
  • Balance Check
  • Low Balance Alarm
  • Auto Update SIM Number
  • Random Call Interval
  • Auto CLIP
  • Signaling & RTP Encryption
  • SMPP for SMS

Network

  • Static IP, DHCP Client, PPPoE
  • Network Protocols:
  • TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS
  • Static/Dynamic ARP Request
  • PPTP VPN

Maintenance

  • Web/Telnet Configuration
  • Configure Backup/Restore
  • Firmware Upgrade by HTTP/TFTP
  • Factory Reset
  • CDR (10000 Lines CDRs Storage Locally)
  • Syslog/Filelog
  • Ping and Tracert
  • Traffic statistics: TCP,UDP,RTP
  • VoIP Call Statistics
  • PSTN Call statistics: ASR,ACD,PDD
  • Voice Diagnose with Loopback
  • GSM Network Test
  • IVR Customization
  • Auto Provisioning
  • SIP/RTP/PCM Capture

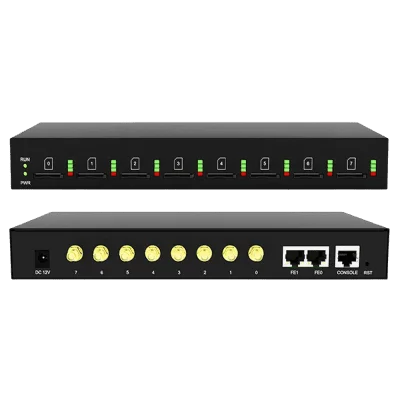

Physical Interface

  • Mobile: 4/8 Channels
  • Antennas Connectors: SMA
  • Ethernet Interfaces:2*10/100 Base-T, RJ45
  • LED Indicators: Power, RUN, Signal Strength Indicators
  • Console:1* RS232 115200bps

Environmental

  • Power Supply
    Input:100-240V,50-60Hz
    Output: DC12V 4.0A
  • Power Consumption:
    UC2000-VE-4G: 20w
    UC2000-VE-8G: 25w
  • Temperature(Operation): 0 ℃ ~ 45 ℃(Storage): -20 ℃ ~80 ℃
  • Operation Humidity: 10%-90% No Condensation
  • Dimension(W/D/H): 250*156*32.5mm
  • Weight: 1.069kg
  • Package Weight: 2.05kg
