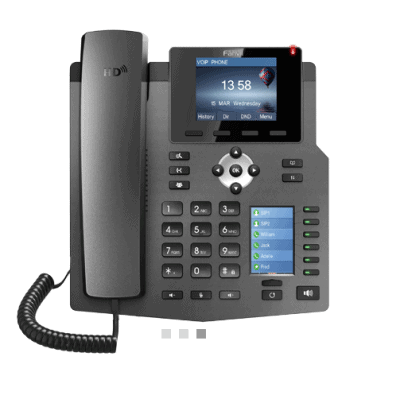

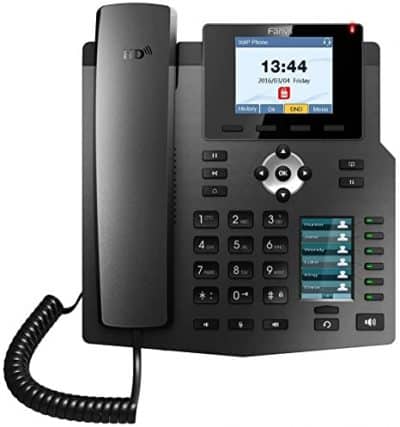

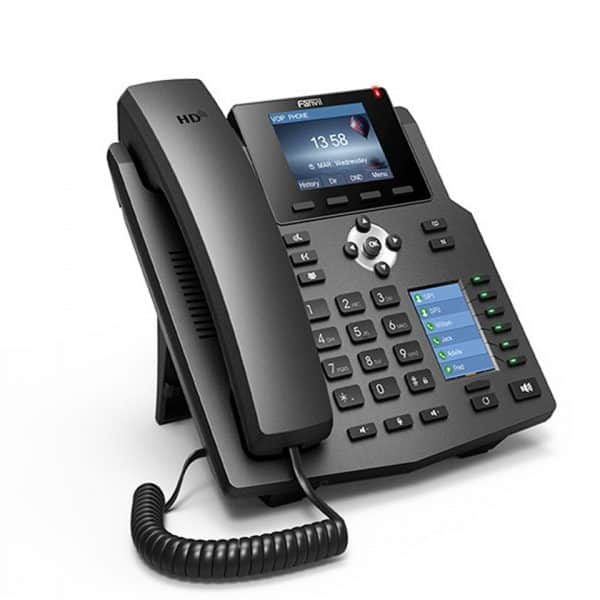

Fanvil X4 Enterprise IP Phone
[digitnet_promo_icons]
Fanvil X4 Key Features
- DSS key-mapping LCD colour screen β 6 DSS keys
- 2.8 inch (320 x 240) LCD colour screen
- Fast Ethernet with PoE enabled
- Elegant design with environmentally friendly packaging
- High interoperability β compatible with major platforms: 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.
- Brands: Fanvil
- Number of phone lines: Multi-lines, Single-line
- Network connection type: Ethernet
- Color: Black
- Power Method: PoE, Power Adapter
Click any tab above to view the information.
Description
The X4/X4G is a feature-rich sip phone for business. The 4-Line IP Phone has been designed by pursuing ease of use in even the tiniest details. Dual 10/100 Mbps(X4G: 10/100/1000 Mbps) network ports with integrated PoE are ideal for extended network use.
Delivering a superb sound quality as well as rich visual experience. With second DSS color screen, the IP Phone supports up to 30 DSS keys which improve work efficiency. Using standard encryption protocols to perform highly secure remote provisioning and software upgrades.
Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β
Support EHS Wireless HeadsetSupport EHS Wireless Headset, Professional Enterprise VoIP phone.
Fanvil X4 Technical Specification
Generic
- 4 SIP Lines
- HD Voice
- PoE Enabled
- 2 LCD Colour Screens (Main + DSS)
- Handset(HS) / Hands-free (HF) / Headphone(HP) mode
(EHS support for Plantronics headsets) - Intelligent DSS Keys
- Desktop / Wall-mount installation
- Optional External Power Supply
- Economical and Environmental friendly package
- Industrial Standard Certifications: CE/FCC
Call Features
- Call out / answer / reject
- Mute / Unmute (microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Forwarding Calls (Always/Busy/No Answer)
- Transfer Call (Attended/Unattended)
- Call Parking/Pick-up (depending on server)
- Redial/Auto-Redial
- Do-Not-Disturb (per line / per phone)
- Auto-Answering (per line)
- Voice Message (on server)
- Local 3-way Conference
- Hot Line
- Hot-Desking
Phone Features
- Phonebook (500 entries)
- Remote Phonebook (XML/LDAP)
- Call log (100 entries, in/out/missed)
- Black/White List Call Filtering
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronisation
- Action URL / Active URI
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ΕΏΔ‘7KHz
Frequency Response) - Wideband ADC/DAC 16KHz Sampling
- Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband CODEC: G.722
- Full-duplex Acoustic Echo Canceller (AEC) β Hands-free Mode,
96ms tail-length - Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /
Background Noise Estimation (BNE) / Noise Reduction (NR) - Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In-band, Out-of-Band β DTMF-Relay (RFC2833) / SIP INFO
Networking
- Physical: 10/100Mbps(X4), 10/100/1000Mbps (X4G) Ethernet, dual
bridged port for PC bypass - IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP (Basic Unencrypted) / OpenVPN
- VLAN
- QoS
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- PPPoE
- 802.1x
- L2TP (Basic Unencrypted)
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR069
RFCs
- 354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976
/3261/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/
5865
Deployment & Maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR069 - Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications
- Main LCD x1: 2.8 inch (320×240) LCD colour screen
- DSS key-mapping LCD x1: LCD colour screen
- Keypad: 38 keys, including:
– 4 Soft-keys
– 6 Function keys
– 5 Navigation keys
– 12 Standard Phone Digits keys
– 3 Volume Control keys, Up/Down/Mute(Microphone)
– 1 Hands-free key
– 6 DSS Keys with tri-colour LED
– 1 Page-Jump/Configuration (PJC) key - Hands-free Speaker (HD)Β (0 ΕΏΔ‘7KHz) x1
- HD Hands-free Microphone (0 ΕΏΔ‘7KHz) x1
- HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT5 Ethernet Cable x1
Ν»RJ9 Phone Jacket x2: Handset x1, Headphone x1 - RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 2 Enabled),
PC x1 (Bridged to Network) - Main Chipset: Broadcom
- DC Power Input: 5V/1A
- Power Consumption: (X4) Idle β ΕΏ 1.3W, Peak β ΕΏ4.3W
(X4G) Idle β ΕΏ 1.7W, Peak β ΕΏ5.7W - Working Temperature: 0 ~ 40Ι
- Working Humidity: 10
- Colour: Black
- Package Dimensions: 285 x 270 x 65mm (W x H x L)
Related Products Topics .
Accessories
This section can show compatible accessories, installation kits, cables, brackets, batteries, or related add-ons.
Specifications
This section shows product attributes such as brand, model, SKU, power, size, material, color, and compatibility.

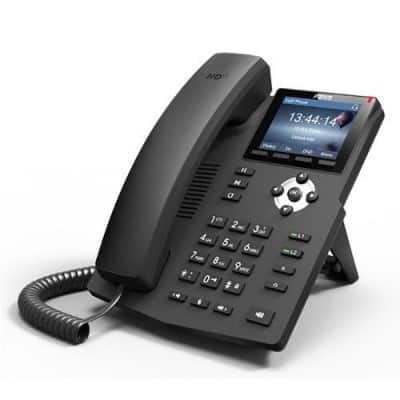

Fanvil New X3S Physical Specifications
Main LCD x1: 2.4-inch (320×240) Colour Screen
Keypad: 34 keys, including:
– 4 Soft-keys
– 7 Function keys (Hold/Transfer/Conference/Phonebook /MWI/Headset/Redial)
– 2 Line keys (With LED Indicator Light)
– 4 Navigation keys
– 1 OK key
– 12 Standard Phone Digits keys
– 3 Volume Control keys (Up/Down/Mute (Microphone))
– 1 Hands-free key (With LED Indicator Light)
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1
Others Functions Physical Functions
Status Indicator Light x1 (Red)
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
Safety Keyhole x1
DC Power Input: 5V/0.6A
Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W
Working Temperature: 0~45β
Working Humidity: 10~95%
Technical Specifications
| Brands | Fanvil |
|---|---|
| Number of phone lines | Multi-lines, Single-line |
| Network connection type | Ethernet |
| Color | Black |
| Power Method | PoE, Power Adapter |
