Fanvil New X3S VoIP Phone PoE


Fanvil X3SP V2 Key Features

  • 4 SIP lines, 3-way conference, SIP hotspot
  • 500 local phonebook, caller ID, call hold, call transfer
  • 2.4” main colour display
  • HD audio on speakerphone and handset
  • Support EHS wireless headset
  • Dual Fast ports, integrated PoE
  • Stand with 2 adjustable angles of 45 and 50 degrees
  • Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc

 23,500.00  24,000.00

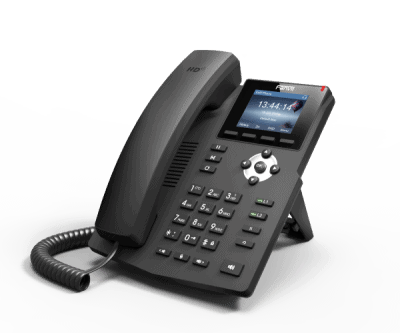

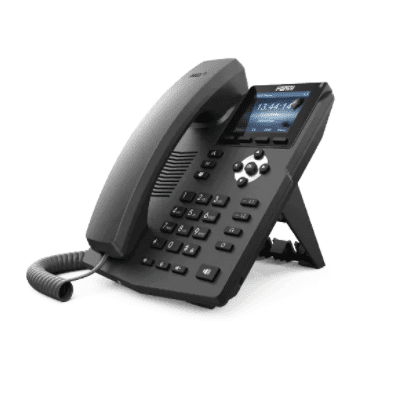

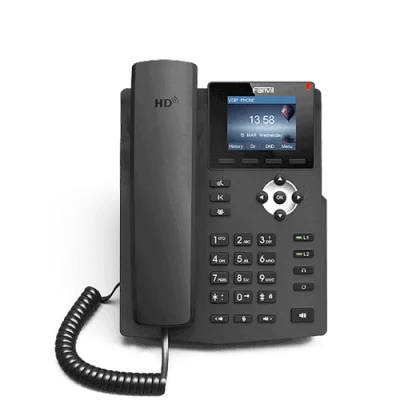

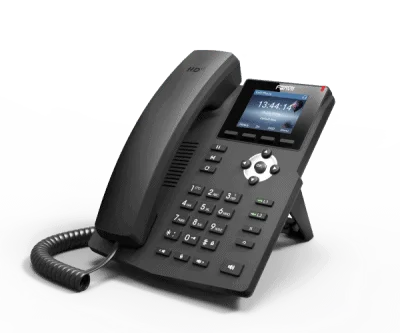

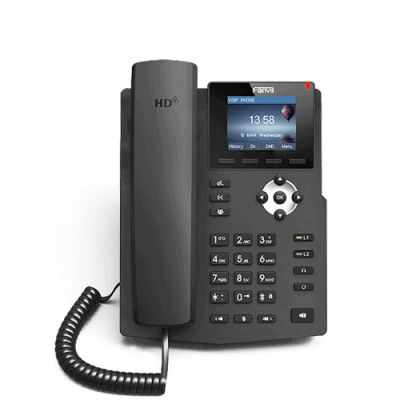

Fanvil New X3S

                                                                                                                                                                                                                                                        Fanvil X3S  is an entry-level IP Phone featuring a 2.4-inch colour LCD and newly added function keys. The X3SP new version aims to provide a more productive operation method for business. The X3S Phone has improved HD audio and more SIP lines. It supports EHS headset and thi smakes  X3S an efficient business tool in office. With all the necessary VoIP features and other extended features, it provides the high-quality and convenient experience for users at an affordable price.

Dual 10/100 Mbps(X3G: 10/100/1000 Mbps) network ports with integrated PoE are ideal for extended network use. The X3S series supports two VoIP accounts, simple, flexible and secure installation options, Open VPN.

X3S support SRTP/ HTTPS and TLS, 802.1x. It is very cost-effective and powerful IP solution. X3s IP Phone is suitable for both small and large office environments.



Fanvil New X3S

                                                                                                                                                                                                                                                           Fanvil X4G

Support EHS Wireless HeadsetSupport EHS Wireless Headset, Professional Enterprise VoIP phone.

Fanvil X3SP V2 – Technical Specifications

Generic
4 SIP Lines
HD Voice
PoE Enabled (Only X3SP)
2.4-inch colour screen
Handset / Hands-free / Headset mode
Desktop Stand / Wall-mounted (need an additional wall hanging parts)
Optional External Power Supply

Phone Functions

Local Phonebook (500 entries)
Remote Phonebook (XML/LDAP, 500 entries)
Call logs (In/Out/Missed, 600 entries)
Black/White List Call Filter
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronisation
Plantronics wireless headset support(Through Plantronics APD-80 EHS Cable)
It supporst Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Server)
Action URL / Active URI
uaCSTA

Call Functions

Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Forwarding Call  (Always/Busy/No Answer)
Transfer Calls (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (With server)
3-way Conference
Hot Line
Hot desking

Audio

HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
HAC handset
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723, G.726-32K, G.729AB, iLBC
Wideband Codec: G.722
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Fanvil New X3S Network

Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
IP Mode:IPv4
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Management
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade
Syslog

Physical Specifications

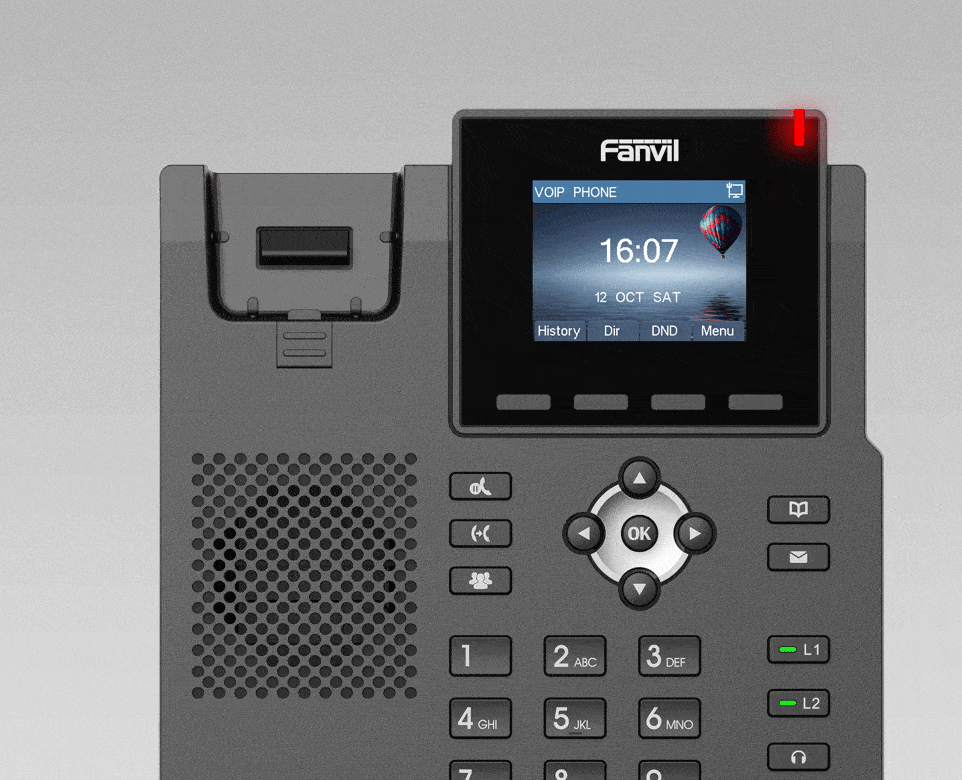

Main LCD x1: 2.4-inch (320×240) Colour Screen
Keypad: 34 keys, including:
– 4 Soft-keys
– 7 Function keys (Hold/Transfer/Conference/Phonebook /MWI/Headset/Redial)
– 2 Line keys (With LED Indicator Light)
– 4 Navigation keys
– 1 OK key
– 12 Standard Phone Digits keys
– 3 Volume Control keys (Up/Down/Mute (Microphone))
– 1 Hands-free key (With LED Indicator Light)
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1

Others Functions Physical Functions
Status Indicator Light x1 (Red)
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
Safety Keyhole x1
DC Power Input: 5V/0.6A
Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W
Working Temperature: 0~45℃
Working Humidity: 10~95%

Installation:
– Desktop Stand
– Wall-mounted (need an additional wall hanging parts)
Colour: Black
Device Dimensions:
– Desktop Stand (Angles 1): 169×186.3×174.5 mm
– Desktop Stand (Angles 2): 169×177.6×183.7 mm
– Wall-mounted: 169×115.6×212.5 mm
Gift Box Dimensions: 274x215x68 mm
Outer CTN Dimensions: 450x360x294 mm (10 PCS)

Related Products Topics .

SKU: 5487FB8/28-4-52-4 Category:

Fanvil New X3S Physical Specifications
Main LCD x1: 2.4-inch (320×240) Colour Screen
Keypad: 34 keys, including:
– 4 Soft-keys
– 7 Function keys (Hold/Transfer/Conference/Phonebook /MWI/Headset/Redial)
– 2 Line keys (With LED Indicator Light)
– 4 Navigation keys
– 1 OK key
– 12 Standard Phone Digits keys
– 3 Volume Control keys (Up/Down/Mute (Microphone))
– 1 Hands-free key (With LED Indicator Light)
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1

Others Functions Physical Functions
Status Indicator Light x1 (Red)
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
Safety Keyhole x1
DC Power Input: 5V/0.6A
Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W
Working Temperature: 0~45℃
Working Humidity: 10~95%
