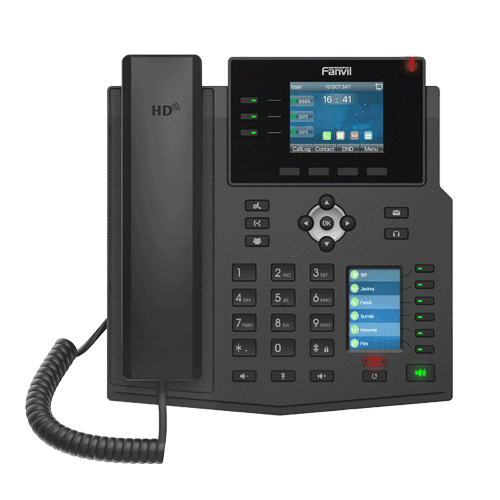

Fanvil X4U Enterprise IP Phone


Fanvil X4U Enterprise IP Phone



            • 12 SIP Lines & 3 Line Keys
            • Dual color LCD screens ( 2.8″ main screen and a secondary 2.4″ DSS screen)
            • Dual Gigabit ports and 30 DSS Keys, Bluetooth & Wi-Fi (Via USB Dongle)
            • Can be powered through a PoE Switch, Injector or Power Supply (Optional and Sold Separately)
            • Harman Kardon Speaker





 32,000.00  35,000.00

The X4U is a next-generation (an updated model of Fanvil X4) and feature-rich sip phone for business. 12 SIP Line with 3 Line Key has been designed by pursuing ease of use in even the tiniest details. Dual 10/100/1000 Mbps network ports with integrated PoE are ideal for extended network use. This delivers a superb high definition sound quality , supporting Opus Codec, and rich visual experience. With the second DSS color screen, the IP Phone supports up to 30 DSS keys which improves work efficiency. This uses  standard encryption protocols to perform highly secure remote provisioning and software upgrades.

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                     Fanvil X4U Enterprise IP Phone

Fanvil  provides the direct access to instructions with two high-resolution 320×240 color displays, which is an ideal option for enterprises to improve the flexibility and have a greater productivity on daily work. Harman speaker and wideband codec of G.722 and Opus in this device,  delivers  immersive High Definitio (HD) audio experience in both high band and low band with the network.



Fanvil X4U



                                                                                                                                                                                                                                                                                        Elegant Outlook
Easy Operation

Adopting a more intuitive design with a 2.8-inch color LCD, a 2.4-inch color side LCD and 3 line keys with LED light, Fanvil X4U allows a more user-friendly feature customization.











Phone functions

  • Local Phonebook (1000 entries)
  • Remote Phonebook (XML/LDAP, 1000 entries)
  • Call logs (In/Out/Missed, 1000 entries)
  • Black/White List Call Filter
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronisation
  • Bluetooth headset (Through USB Dongle BT20)
  • Wi-Fi Dongle
  • Supports Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
  • Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Flash Drive or Server)
  • Action URL / Active URI
  • uaCSTA

Call functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (With server)
  • 3-way Conference
  • Hot Line
  • Hot desking

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
  • Wideband Codec: G.722, AMR-WB, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

  • Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode: IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static IP / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • Main LCD x1: 2.8-inch (320×240) Colour Screen
  • DSS Key-mapping LCD x1: 2.4-inch (240×320) Colour Screen
    Keypad: 41 keys, including
    – 3 Line keys (with LED indicator light)
    – 4 Soft-keys
    – 6 Function keys (Hold, Call forward, Conference, MWI, Headset, Redial))
    – 4 Navigation keys
    – 1 OK key
    – 12 Standard Phone Digits keys
    – 3 Volume Control keys (Up/Down/Mute (Microphone)
    – 6 DSS keys (With LED Indicator Light)
    – 1 Page-Switch (PS) key (With LED Indicator Light)
    – 1 Hands-free key
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • Back Rack x1
  • Status Indicator Light x1 (Red)
  • RJ9 Port x2: Handset x1, Headset x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • USB2.0 Port x1: Standard A, Connect with USB dongle(BT or Wi-Fi) or Flash Driver
  • Safety Keyhole x1
  • DC Power Input: 5V/0.6A
  • Power Consumption: (PoE): 1.7W~10.46W
  • Power Consumption: (Adapter): 1.38W~9.13W
  • Working Temperature: 10~95℃
  • Working Humidity: 10~95%
  • Installation:
    – Desktop Stand
    – Wall-mounted (need an additional wall hanging parts)
  • Color: Black
  • Device Dimensions:
    – Desktop Stand (Angles 1): 214×188.6×181.1 mm
    – Desktop Stand (Angles 2): 214×180.5×190.1 mm
    – Wall-mounted: 214×119.4×219.1 mm
  • Gift Box Dimensions: 315x228x84 mm
  • Outer CTN Dimensions: 476x440x335 mm (10 PCS)

Related Products Topics .

SKU: 5487FB8/28-4-50 Category:

Fanvil X4U IP Phone – Technical Specifications

Generic

  • 12 SIP Lines
  • HD Voice
  • PoE enabled
  • 2 LCDs (Main + DSS)
  • Handset / Hands-free / Headst mode
  • Intelligent DSS Keys
  • Desktop stand/ Wall-mounted installation (needs additional wall handing parts)
  • Optional external power supply
