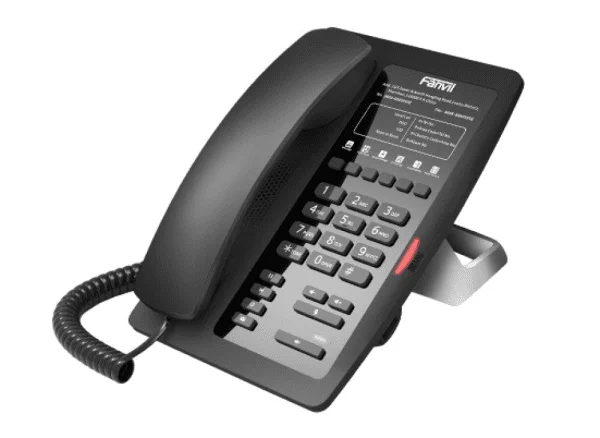

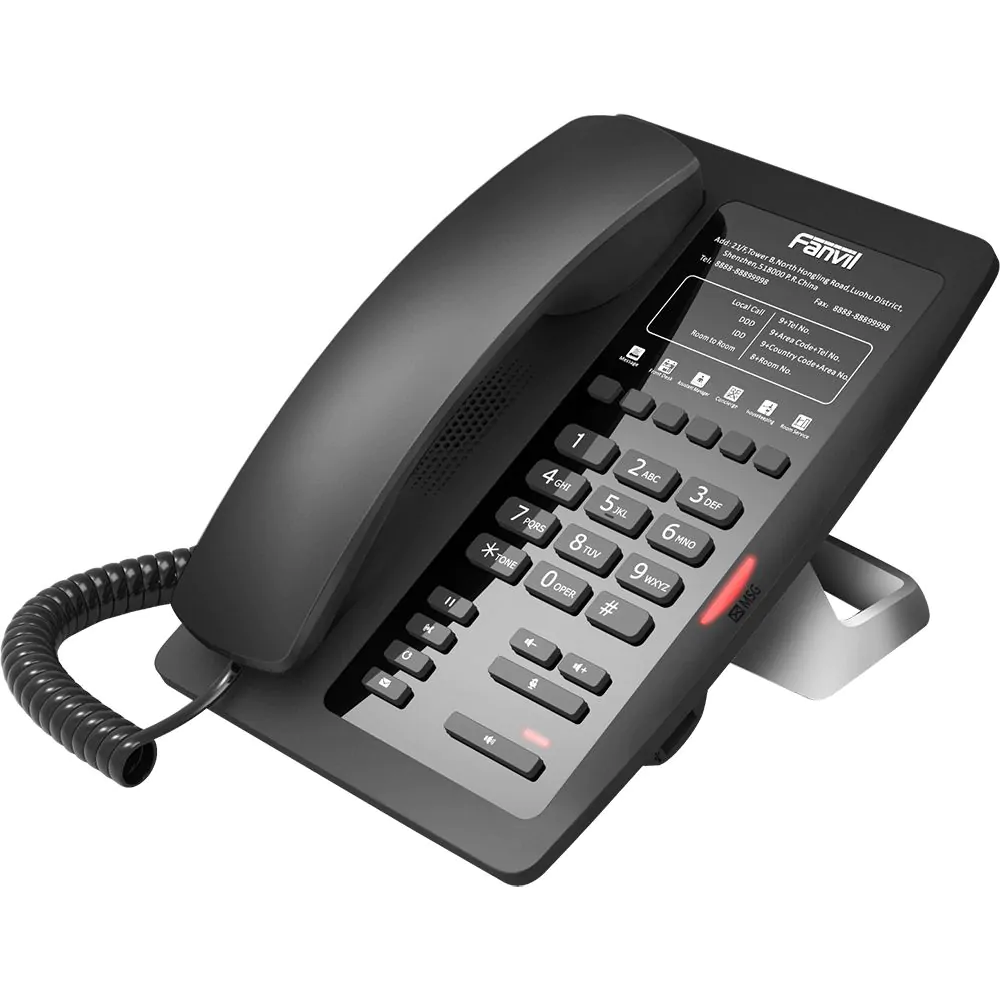

Fanvil H3 Hotel Room IP Phone: Support SIP protocol, G.722 HD codec, PoE, Programmable keys and LCD message display and Do Not Disturb

Phone Features

• vxworks OS
• Support SIP2.0 (RFC3261) and correlative RFCs
• SIP support 1 SIP servers, and backup
• SIP proxy servers
• Supports SIP UDP / TCP/ TLS
• SIP support SIP domain, SIP authentication (none, basic, MD5) , DNS name of server, Peer to Peer / IP Call
• 6 soft keys programmable
• Multi languages displayed (web)

Audio Features

• HD voice: HD handset
• Codec: G.711A/U, G.723.1 high/low, G.729AB, G.722, G.726-32
• DTMF: in-band, RFC2833 and SIP INFO
• Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Background Noise Estimation (BNE)
• Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Advanced Features

• Call transfer ( unattended/ attended/ semi-attended )
• Call holding
• Call waiting
• Redial
• Call completion
• Predial MWI
• Flexible dial plan
• Barring function for outgoing calls
• Do not disturb
• Auto answer
• CLIR (rejects anonymous calls)
• CLIP (to make an anonymous call)
• Dial without registration
• Call logs with missed calls/ incoming calls/ outgoing calls. Each support 300 records (web)
• Speed Dial
• Hotline/Warm-line
• Password dial
• DTMF hidden
• Action URL/ active URI
• Multicast
• Web dial
• Emergency call

Network/ Security Features

• WAN / LAN: 10/100M Ethernet ports (Bridge mode)
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Firmware Upgrade
• Syslog

Physical Features

• Screen: None (H3)
• Adapter Input: AC100-240V
• Adapter Output: DC 5V/1A
• WAN Port -10/100 BASE-T RJ-45 for LAN LAN Port-10/100 BASE-T RJ-45 for PC
• Handset: RJ9
• Power consumption: IDLE: 2.5W Active: 2.8W
• Operation Temperature: 0〜40℃
• Relative Humidity: 10〜65％
• Main Chipset: Broadcom
• SDRAM: 16MB
• FLASH: 8MB

Dimension: 213 x 170 x 130 mm
