Fanvil H2U Phone

HIKVISION

Key Features

    • 2 SIP Lines and ten speed dial buttons
    • 3-way Conference and one programmable DSS button
    • Desk/wall-mounted mode
    • Handset / Hands-free mode
    • 10/100 Mbps
    • PoE/Power adaptor
    • Portable and fashionable product

$60.00

Compare

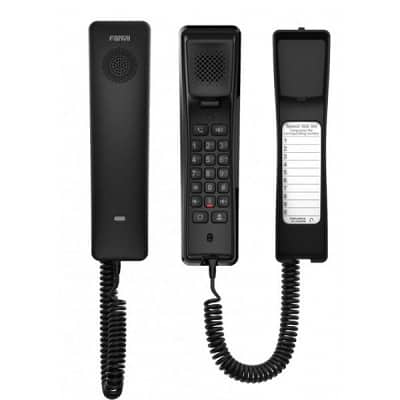

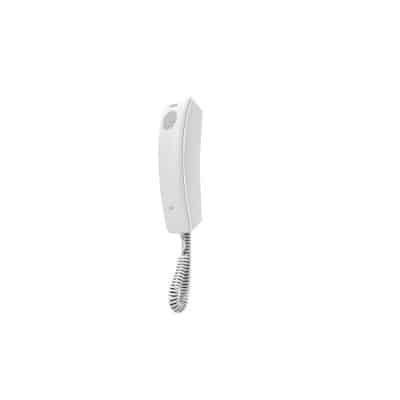

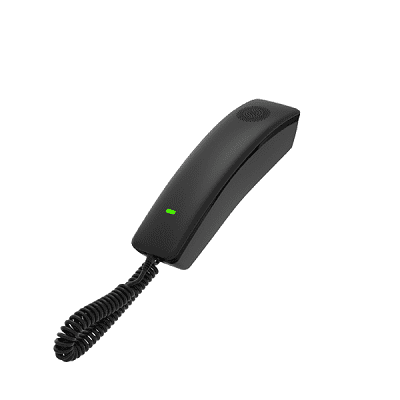

Fanvil H2U Phone

The Fanvil H2U is a portable and user friendly phone, that comes with brand new features such as 2 SIP lines, 10 speed dial buttons, with a programmable DSS button and high definition speakerphone in the handset. Supporting desktop and wall mount mode, PoE and power adapter charging mode, Fanvil H2U is more than a hotel phone and can also be used in multiple scenarios such as school, hospital, supermarket and apartment building.

Features of Fanvi H2U Phone

  • 2 SIP Lines and ten speed dial buttons
  • HD Audio quality
  • 3-way Conference and one programmable DSS button
  • Desk/wall-mounted mode
  • Handset / Hands-free mode
  • 10/100 Mbps
  • PoE/Power adaptor
  • Portable and fashionable product
  • Easy installation and configuration
  • Economical, Environmental and user friendly
  • Can store 10 shortcut numbers, long press to achieve speed dial
  • Adaptive 10/100Mbps network port, support POE power supply



SKU: XPK-5487FB97 Categories: ,

Fanvil H2U Technical Specifications

  • 2 SIP Lines
  • HD Voice
  • PoE Enabled
  • Handset / Hands-free mode
  • Intelligent DSS Keys
  • Desktop/wall mount mode
  • Optional External Power Supply

Phone Functions

  • Call logs (In/Out/Missed, Max support 600 records in the web)
  • Programmable DSS
  • Action URL / Active URI
  • Web dial

Call Functions

  • Call out / Answer
  • Mute / Unmute
  • Hands-free / Cancel hands-free
  • Call Hold / Resume
  • Speed Dial
  • Redial
  • Auto-Answering
  • 3-way Conference
  • Hot Line
  • Hot desking

Audio

  • Narrowband Codec: G.711a/u, G.726, G.729A, iLBC
  • Wideband Codec: G.722, Opus
  • Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

  • 10/100 Mbps Ethernet
  • IP Mode:IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • Keypad: 19 keys, including:
    – 12 Standard Phone Digits keys(0-9: Speed dial configuration on webpage)
    – 3 Function keys (Hands-free , Redial ,Hold)
    – 3 Volume Control keys, Up/Down/Mute(with red colour LED)
    – 1 DSS key
  • Status indicator (two-colour LED) x1
  • HD Handset (RJ11) x1
  • Standard RJ11 Handset Cord x1
  • RJ11 Port x1
  • RJ45 Port x1
  • Power: 5V/2A or PoE
  • Power Consumption(PoE): 1.58W~3.47W
  • Power Consumption(Adapter): 0.87~2.23W
  • Working Temperature: 0~45°C
  • Working Humidity: 10~90%
  • Installation: Desktop/wall mount
  • Colour: Black/white
  • Device Dimensions: 55.8 x 215 x 57.8mm
  • Gift Box Dimensions: 224 x 75 x 62 mm
  • Outer CTN Dimensions: 335 x 323 x 243 mm(20 PCS)
