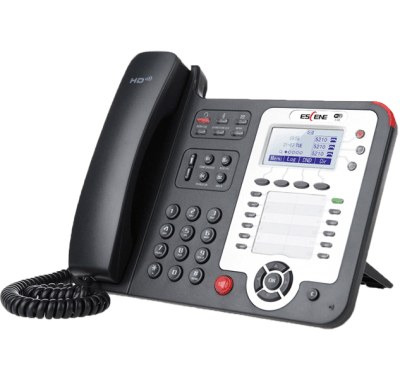

Escene WS330 Wireless IP Phone

Escene

Escene WS330 Key Features
• Wireless working frequency 5.8GHz.
• HD Voice: HD Codec, HD Speaker, HD Handset.
• Multi-language, e.g. Chinese, English, Russian, France etc .
• SIP accounts and support three-way conference, SMS.
• Excellent adjustable bracket and wall-mountable.
• 2xLAN, PoE, RJ9Headset.
• Support 15 paperless programmable keys.
• XML/LDA, BLF/BLA, Search someone in the Phone book.
• Auto-provision, HTTP/TFTP/FTP, TR069.

$100.81

Compare
$220.31 for 3 item(s)

Escene WS330 Wireless IP Phone

WS330-PEGv4 is a small screen cordless IP phone with the most advanced technology with excellent sound quality, functions and performance, and a powerful new reconfiguration device. The IP telephone is fitted with communication functionality such as call forwarding, telephone lines, three-party conferences, etc.,
Escene WS330 Key Features
• Wireless working frequency 5.8GHz.
HD Voice: HD Codec, HD Speaker, HD Handset.
• Multi-language, e.g. Chinese, English, Russian, France etc .
• SIP accounts and support three-way conference, SMS.
• Excellent adjustable bracket and wall-mountable.
• 2xLAN, PoE, RJ9Headset.
• Support 15 paperless programmable keys.
• XML/LDA, BLF/BLA, Search someone in the Phone book.
• Auto-provision, HTTP/TFTP/FTP, TR069.
SKU: XPK-5487FB49 Category:

Escene WS330 – Technical Specifications

Phone Features
• 3 SIP accounts, Hotline
• Call hold, Call waiting, Call forward, Call return
• Call transfer (blind/busy/ask)
• Caller ID display, Redial, Mute, DND
• Auto-answer, 3-way conferencing
• Speed dial, SMS, Voicemail
• Message Waiting Indication LED
• Tone scheme, Volume control
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Black list, Hand-free indicator.
• Call history: dialed/received/missed (50 -entries);
• Multi-Language
• Soft keys programmable, Supports PC control
Advanced Features
• XML Phone Book search and input & output
• Enterprise phone book(800 entries)
• LDAP phone book
• Functions customizable keys
• Support up to 15 paperless programmable keys
IP PBX System Integration
• Busy lamp field (BLF), BLF list
• Bridged line appearance (BLA)
• DND & Forward synchronization
• Intercom, Paging, Music on hold
• Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection
• Network conference, Distinctive ringtone
Codes and Voice Features
• Wideband Codec: G.722
• Narrowband codec: G.711μ/A, G.723.1
• G.726, G.729AB,iLBC
• VAD, CNG, AEC, AGC
• Full-duplex,
Security
• LLDP, VLAN QoS (802.1pq),VPN(L2TP)
• Transport Layer Security (TLS)
• Digest authentication using MD5/MD5-sess
• Secure configuration file via AES encryption
• Phone lock for personal privacy protection
• Admin/User 2-level configuration mode
Network Features
• SIP v1 (RFC2543), v2 (RFC3261)
• DNS SRV (RFC3263)
• NAT Traversal: STUN mode
• DTMF: In-Band, RFC2833, SIP Info, Auto
• HTTP/HTTPS Web Management
• IP Assignment: Static/DHCP/PPPoE
• Bridge/Router mode for PC port
• TFTP/DHCP/PPPoE client
• DNS client, NAT/DHCP server
• WIFI: 802.11 a/b/g/n/ac
Management
• Auto-provision via FTP/TFTP/HTTP/HTTPS
• SNMP V1/2 , TR069 optional
• Configuration: browser/phone/auto-provision
• Trace package and system log export
Physical Features
• 132×64 graphic LCD
• 50 keys, including 12 programmable keys
• 23 LEDs: 1* headset light, 3* account lights, 1* message light, 1* headset light, 12*programmable lights, 4* function lights, 1* speaker lights, Wall-mountable
• 1* RJ-9 handset port
• 1*RJ-9 headset port
• 2*3.5mm PC headset port
• 2xRJ45 10/100/1000M Ethernet ports
• WIFI 5.8GHz
• Power adapter: AC 100~240V input and
• DC 12V/1A output
• USB only support DC 5V feature.
• Power over Ethernet ,IEEE 802.3af,class 0
• Power consumption: 2.5-3.5W
• Net weight: 1.2KG
• Dimension: 287x214x90MM
• Operating humidity: 10~95%
• Storage temperature: up to 60°C
Package Features
• Qty/CTN: 10 PCS
• N.W/CTN: 12KG
• G.W/CTN: 15.24KG
• Carton Meas: 485*460*300Mm
