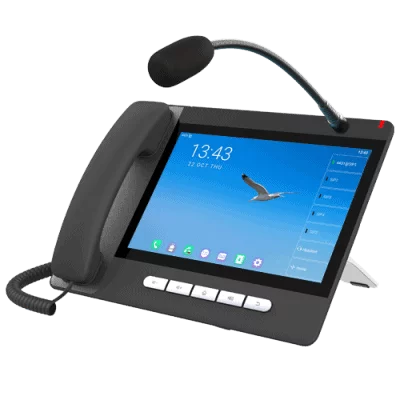

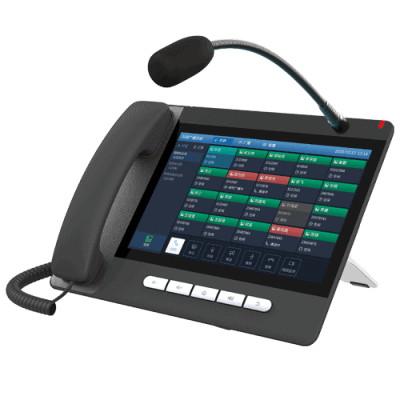

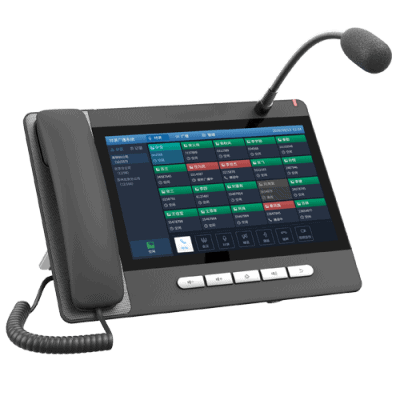

Fanvil A32i Android Console IP Phone

Fanvil A32i – Technical Specifications

Generic

• 20 SIP lines
• HD Voice
• Support receiving Video Call
• PoE Enabled
• 10.1-inch (1280×800) colour touch screen
• Handset / Hands-free / Headphone mode
• Intelligent DSS Keys (virtual buttons)
• Optional External Power Supply

Operation System

• Android 9.0 OS with higher security and better compatibility
• Built-in Applications: Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music
• Support 3rd Party Applications
• Secondary Development of API

Phone Functions

• Local Phonebook (2000 entries)
• Remote Phonebook (XML/LDAP, 2000 entries)
• Intelligent Search for Contacts and Call Log
• Call logs (In/out/missed, 1000 entries)
• Black/White List Call Filter
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Built-in Bluetooth 5.0: Support Bluetooth headset/ Bluetooth of Mobile Device
• Built-in Wi-Fi: 2.4GHz, 802.11 b/g/n; 5GHz, 802.11 a/n/ac
• Support Recording
• Action URL / Active URI
• UaCSTA
• Audio/Video Recording
• SIP Hotspot
• Group Broadcasting
• Action Plan
• Group listening

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server)
• 3-way Conference
• Hot Line
• Hot desking
• BLF

Video

• Video decoding: H.264 /H.265(Optional)
• Video call resolution: CIF/VGA/4CIF/720P/1080P
• Image format: JPEG/PNG/BMP
• Video format: MP4
• Bandwidth selection: 64kbps~4Mbps
• Frame rate selection: 5~30fps
• Video from remote site can be displayed in full screen
• 3-way Video Call with External Camera Fanvil CM60
• Optional Fanvil CM60 USB Camera: 2 Mega Pixel, Plug and Play, Flexible Placement and Angle Adjustment
• Video Preview

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.729AB, iLBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode:IPv4
• IP Configuration: Static / DHCP
• Network Access Control: 802.1x
• VPN: OpenVPN (Requires third-party app support)
• VLAN
• LLDP
• CDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• CDP
• LLDP
• PPPoE
• 802.1x
• OpenVPN (Requires third-party app support)
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Supports the third party communication APP
• Supports Web, Telnet
• Supports encrypted configuration files download with AES
• Supports Web upgrade
• Supports factory reset data

Physical Specifications

• Colour: Dark grey
• LCD x1: 10.1- inch (1280×800) colour touch screen
• Physical keys x5: Volume -/Volume +/Home/Hands-free/Return
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Gooseneck Microphone x1: Directional microphone, Frequency response: 20Hz~20KHz, SNR: ≥60 dB.1kHz at 1 Pa
• Back Rack x1
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1: Standard A, Connect with Flash Driver
• Safety keyhole x1
• Power: 5V/2A or PoE
• Power Consumption (PoE): 2W ~ 9.77W
• Power Consumption (Adapter): 1.2W ~ 7.75W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Installation: Desktop Stand
• Device Dimensions:
  – Desktop Stand (Angles 1): 309 x 214 x 187mm
  – Desktop Stand (Angles 2): 309 x 226 x 167mm
• Gift Box Dimensions: 323 x 301 x 71mm
• Outer CTN Dimensions: 624 x 383 x 348mm (10 PCS)
