Fanvil i56A SIP Indoor Station

Fanvil i56A SIP Indoor Station Touchscreen Android Indoor Vidoe Doorphone and Intercom Station

Add to Wishlist
Compare

Got A Question? Contact Us.

We Offer Good Discount      Expert Technical Support

Feature Highlights

· Android 9.0 OS
· 10.1-inch color touch screen
· Built-in 1W double speakers with AEC

Downloads Documents & Manuals

$410.87

Compare

Fanvil i56A SIP Indoor Station, Touchscreen Android Indoor Video  Doorphone

Fanvil i56A is a 10.1-inch color touch screen indoor SIP station with an Android 9.0 operating system, which can be used in various indoor environments. Get remote access control capabilities for residential areas. It can also connect to alarm systems and other smart security devices through multifunctional interfaces.

Fanvil i56A belongs to the family of i Series Indoor Station with super High Definition (HD) video and voice quality.

Fanvil i56A Main Features

  • Runs on Android 9.0 Operating System (OS)
  • Robust 10.1-inch color touch screen
  • Built-in 1W double speakers with AEC
  • Support visual intercom and remote access control
  • Allows real-time monitoring of the door phone and cameras
  • Has an in-built 2.4G/5G WiFi and Bluetooth 5.0
  • 1 pair of RS-485 interfaces
  • 8 alarm input interfaces and 2 short circuit output interfaces

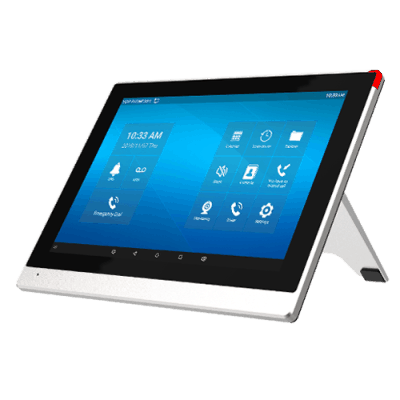

  • Support wall-mount and desktop installation methods (with  the external desk stand)
  • Works seamlessly with major platforms: 3CX, Avaya, Asterisk,  BroadSoft, Metaswitch, Elastix and etc.
Fanvil i56A SIP Indoor Station

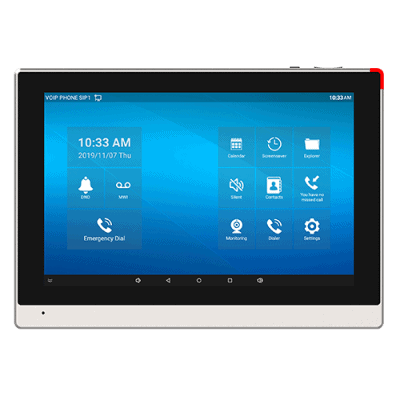

Sleek Design with 10.1 ”Color Touchscreen. i56A is easy to use with an elegant look and attractive 10.1” color touch screen.

Android 9.0 Operation System is designed to supports greater compatibility and more powerful functions.

Easier Operation With a clear touch screen. The Fanvil i56A simplifies the key functions for a seamless operation and user experience.

Unbeatable HD Audio and Video Communication. Users get in touch with visitors with excellent audio
and clear video images.
Fanvil i56A SIP Indoor Station
i56A supports  2.4G/5G Wi-FiFanvil &  built-in 2.4G/5G Wi-Fi.  It allows users to make a choice of wireless connection mode for different functions or requirements.

Fanvil i56A has a robust user interface and room to connect more security devices.
Fanvil i56A SIP Indoor Station

For Technical Support on this product, kindly complete our Contact US  Form, or If you require additional assistance with product installation, you can reach our support center at [email protected].

Category:

Fanvil i56A Technical Specifications

General

  • 6 SIP Lines
  • HD Voice
  • PoE
  • External Power Supply(Optional)

Display

  • 1 x LCD: 10.1-inch 1280×800 Colour Touch Screen

Audio

  • Wideband ADC/DAC 16KHz sampling
  • Narrowband Codec: G.711a/u, G.729AB, iLBc
  • Wideband Codec: G.722, opus
  • Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive litter Buffer up to 300ms
  • DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO

Video

  • Hardware video decoding: H.264
  • Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

  • 10/100 Mbps Ethernet
  • IP Mode:IPv4
  • IP Configuration: Static / DHCP
  • Network Access Control: 802.1x
  • VPN: OpenVPN (Requires third-party app support)
  • VLAN
  • LLDP
  • CDP
  • QoS
  • WiFi

Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • DNS A/SRV/NAPTR
  • RTP/RTCP/SRTP
  • RTSP
  • STUN
  • DHCP
  • CDP
  • LLDP
  • CDP
  • 802.1x
  • OpenVPN (Requires third-party app support)
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web management portal
  • Supports Web
  • Supports encrypted configuration files download with AES
  • Supports Web upgrade
  • Supports factory reset data

Physical Specification

  • 2 keys (Power, volume +/-)
  • 10 Pin Cable x1
  • 6 Pin Cable x1
  • 4 Pin Cable x1
  • Wall-mount Bracket x1
  • Screws Kit x1
  • RJ45 interface x1
  • Micro USB interface x1
  • TF Slot x1
  • RS-485 interface x1
  • 2 embedded short circuit output interface
  • 2 relays: MAX DC30V / 2A, AC125V / 0.5A
  • Alarm input interface x8
  • Power: DC12V/1A or PoE
  • Housing material: ABS
  • Installation:

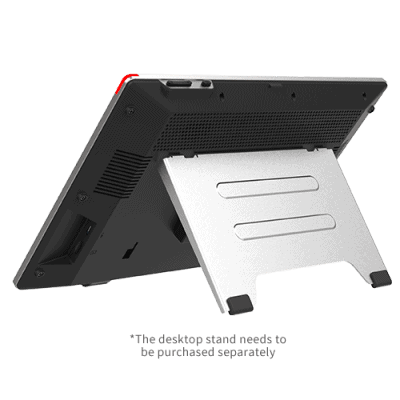

    – Desktop (Need to purchase stand separately)
    – Wall-mounted
  • Working temperature: 0 ~ 45℃
  • Relative humidity: 10% – 90%
  • Equipment Dimension: 258x183x19mm
  • Packing Dimension: 318x217x75mm
  • Outer CTN Dimension: 450x393x338mm (10 pcs)
