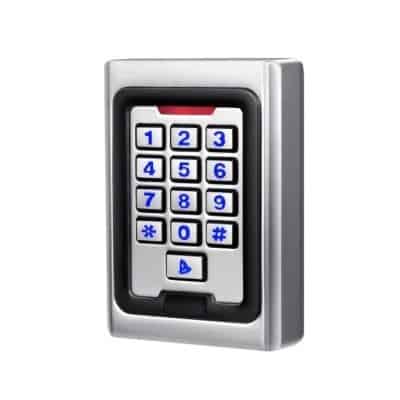

Standalone Keypad Access Control


1 in stock

  • Waterproof: Conforms to IP68
  • Strong Zinc Alloy Electroplateed anti-vandal case
  • Full Programming freo the keypad
  • 2000 Users, supports card, PIN, Card+Pin
  • Can be use as standalone
  • Backlight key
  • wiegand 26 output for connection to a contronller, wiegand 26 input for connection to external reader
  • Ajustable alarm output time and Relay output time
  • Very low power consumption (30mA)
  • Fast operation speed 20ms with 2000 user
  • Lock output current shor circuit protection

$142.61 for 3 item(s)
SKU: DNT-5487FB27 Categories: , Tags: , ,
Model ZDAC-2300
Card Types EM or EM compatible
Alarm output load <20mA
Operating Voltage DC 12V±10%
User Capacity 2000
Card Reading Distance 3~6cm
Active Current <60mA
Idle Current 25±5 mA
Lock Output Load Max 3A
Alarm Output Load Max 20A
Operating Temperature -45ºC~60ºC
Operating Humidity 10%- 90% RH
Adjustable Door Relay time 0 -99 seconds
Adjustable Alarm Time 0- 3 minutes
Wiegand Interface Wiegand 26 bit
Wiring Connections Electric Lock, Exit Button, External Alarm, External reader
Keypad Housing Metal
Water Proof  Conforms to IP68
Weight 500g
