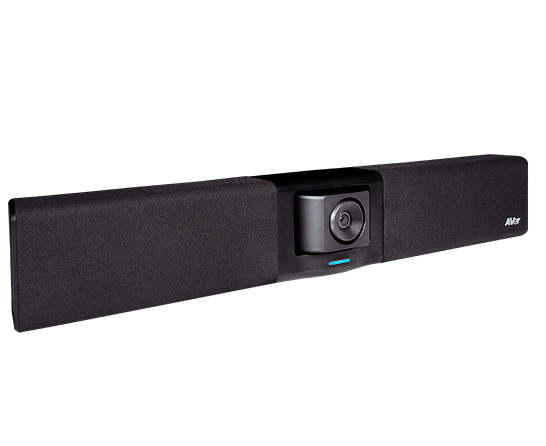

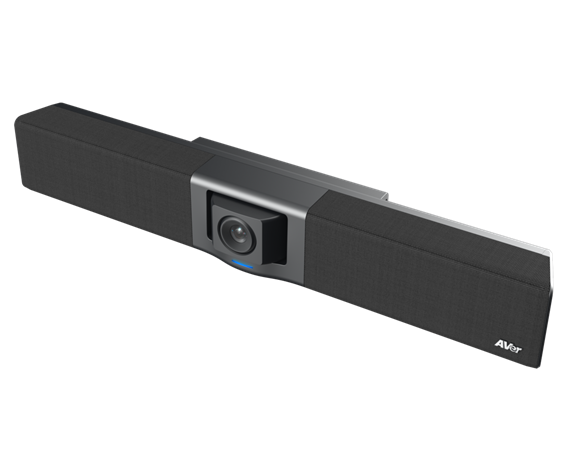

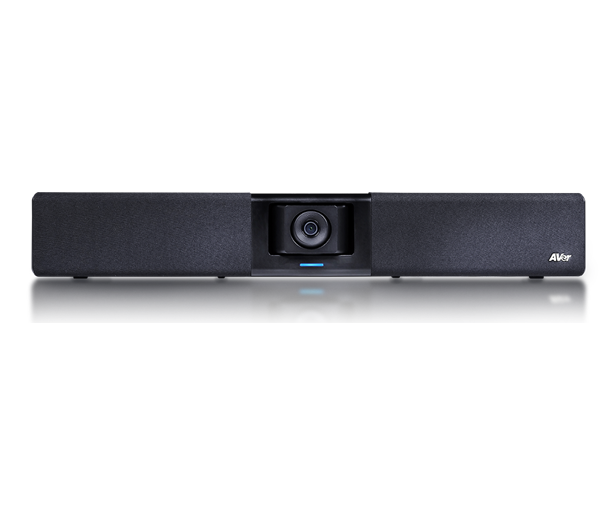

AVer VB342 Pro – Intelligent 4K PTZ Camera & Microphone Video Bar

• 4K 3X optical zoom lens with 15X zoom
• Field of view (D/H/V): 92°/84°/53°
• Sony 4K True WDR sensor: ultra-crystal-clear image in any lighting
• Frame rate: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720,960 x 540, 848 x 480, 800 x 448, 640 x 360 at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360 at 60, 30, 15fps
• Adjustable audio fence: Block outside noise; freely define your meeting area
• True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• SmartFrame & SmartSpeaker: automatic tracking and field of view adjustment to fit all participants and focus on the speaker
• Presentation tracking: Tracking speaker with both preset area and participant tracking
• Smart gallery* function for great visibility
• Gesture control for intuitive camera control
• Mirror, Flip, AE, white balance: Auto, manual override via PTZApp 2
• Minimum focus distance: 80 cm
• People counting API: Enterprises and third-party software providers can obtain people-counting data and meeting interval for better understanding of meeting space usage

*Please download PTZApp 2 to set up Smart gallery function

• Pan: total horizontal viewing area 180°
• Tilt: total vertical viewing area 105°
• 10 camera presets (via remote control and IP web page)

• 10-element beamforming microphone array
• 8 meters (27 ft) pickup range
• Stereo speaker with output power 12W (6W x 2 pcs)
• Volume up to 96 dB SPL at 1/2 m
• Echo cancellation
• Noise suppression

• USB Display Adapter: built-in USB 3.1 (Gen 1) to HDMI adapter

• 12V/5A power adaptor
• Mini DIN 6 for RS-232 connection
• USB 3.1 Type-C port, backward compatible with USB 2.0
• HDMI out connection (USB Display Adapter)
• Phone in (3.5 mm audio Jack)/Speaker out for HA system*
• Two RJ45 ports (one for Ethernet, one for audio expansion speakerphone/ microphone)
• USB 2.0 Type-A*2 : One for Wireless connection**; one for IFP USB Touch back

*Need to set up via PTZApp 2 and purchase an audio-out converter from AVer
**Wireless dongle (optional item) to connect with mobile phone or AVer Fone540

• YUV, YUY2, M-JPEG
• Network video compression formats: H.264, H.265

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB Video); UAC 1.0 (USB Audio); UVC 1.5*
  *For UVC1.5, it involves in different platform environment and requires extra FW upgrade. Please contact technical supportr more details.

• IR remote control
• WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
• VISCA/Pelco P/Pelco D via RS-232; Visca over IP
• UVC/UVA plug-and-play
• PTZApp 2

• Camera wall-mount bracket included
• TV VESA mount kit (optional)
• Foldable TV mount (optional)
• Kensington security lock

• Windows 7/10/11
• Mac OS X 14.4 or later
• Chromebox 3 version 94.0.4606.114 or later

Hardware:

• 3.2 GHz Intel® Core™ i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

• AC 100V–240V, 50/60 Hz
• Consumption: 12V/5A

• Remotely group FW/SW upgrades, control the camera, and manage settings

• View live video, people counting number, meeting interval information
• Enable Skype for Business far-end control
• Upgrade firmware automatically or manually
• Control the camera
• Set parameters and adjust the camera image
• Diagnose operating status
• Smart Gallery/ Virtual USB streaming/ Preset Link

• Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

• Operation temperature: 0 ~ 40°C
• Operation humidity: 20 ~ 80%
• Storage temperature: -20 ~ 60°C
• Storage humidity: 20 ~ 80%

• VB342 Pro unit
• Power cable 10 ft (3 m)
• USB 2.0 Type-B to Type-A Cable 5m
• USB 3.1 Type-A to Type-C adapter
• QR code card
• Wall-mount bracket and screws
• Remote control
• Velcro (x2)(pre-install on the device)
• Wall-mount drill paper

• Mini DIN 6 to RS-232 adapter
• TV VESA mount for mounting on top of TV and beneath TV
• Foldable TV mount
• 10 m/20 m expansion microphone
• 10 m/20 m expansion Speakerphone
• 3 m USB 2.0 extender cable
• Wireless dongle (for connecting with mobile phone or AVer Fone540)
• Audio-out converter (TRS female to TRRS male)

• Package dimensions: 824 x 190 x 238mm
• Package weight: 5.33 kg / 9.3 lbs

• Camera: 737.8 x 125.5 x 115.5mm / 3.1 kg
• Remote control: 149.72 x 42.3 x 19.3mm / 50g

*For 4K UHD support, please check system/hardware requirements with your software application provider.
**Specifications may vary depending on countries and are subject to change without notice
