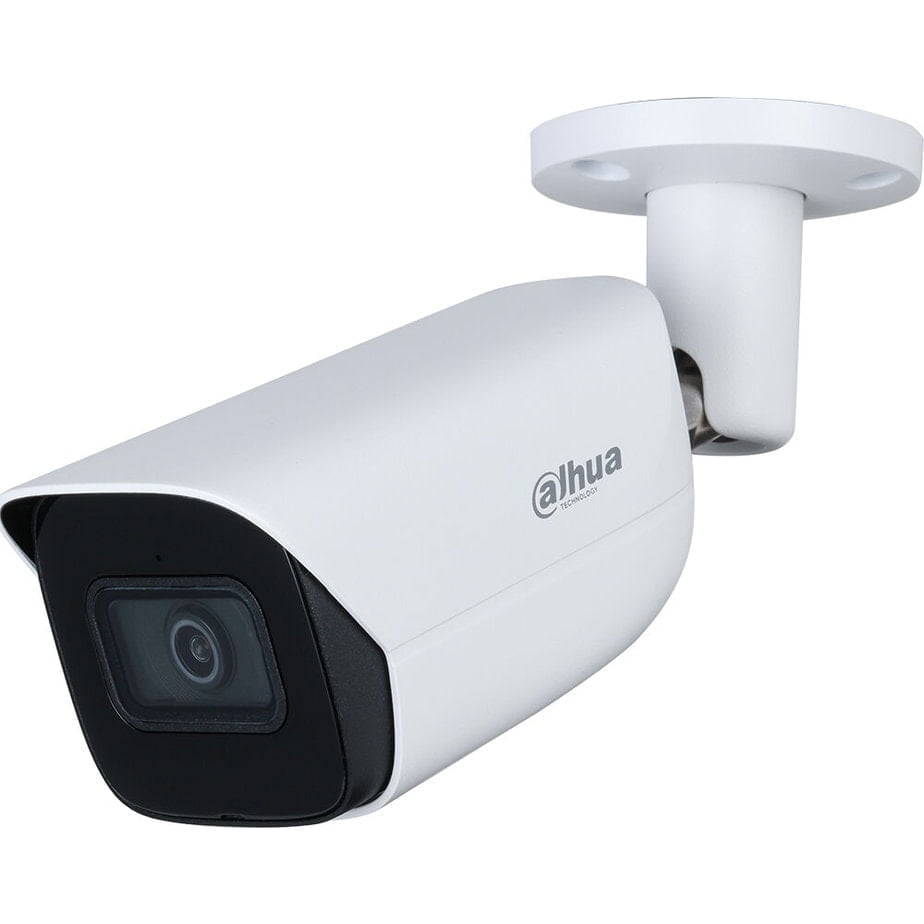

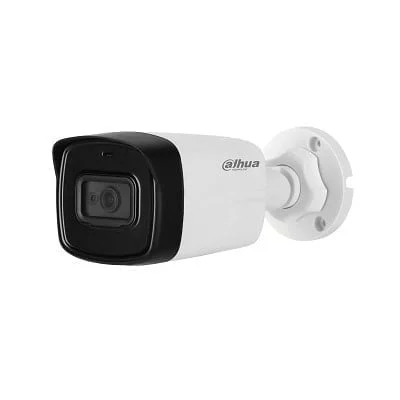

Camera | |
Image Sensor | 1/3-in. 4 MP CMOS |
Effective Pixels | 2688(H) x 1520(V) |
RAM/ROM | 512 MB/128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
Minimum Illumination | Color: 0.005 lux at F1.6 0 lux at F1.6 (IR on) |
S/N Ratio | > 56 dB |
IR Distance | Up to 50.0 m (164.04 ft) |
IR On/Off Control | Auto, Manual |
IR LEDs | One (1) |
Lens | |
Lens Type | Fixed Focal |
Iris Type | Fixed Aperture |
Mount Type | M12 |
Focal Length | 2.8 mm |
Maximum Aperture | F1.6 |
Angle of View | Horizontal: 103°
Vertical: 55°
Diagonal: 122° |
Close Focus Distance | 0.90 m (2.95 ft) |
DORI Distance – 2.8 mm – Detect | 56.0 m
(183.73 ft) |
DORI Distance – 2.8 mm – Observe | 22.40 m
(73.49 ft) |
DORI Distance – 2.8 mm – Recognize | 11.20 m
(36.75 ft) |
DORI Distance – 2.8 mm – Identify | 5.60 m
(18.37 ft) |
Installation Angle | |
Range | Pan: 0˚ to 360˚
Tilt: 0˚ to 90˚
Rotation: 0˚ to 360˚ |
Video | |
Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
H.264H, MJPEG (Sub Stream only) |
Streaming Capability | Three (3) Streams |
Resolution | 4 MP (2688 x 1520), 3 MP (2304 x 1296),
1080p (1920 x 1080), 1.3 MP (1280 x 960),
720p (1280 x 720), D1 (704 x 480),
VGA (640 x 480), CIF (352 x 240) |
Frame Rate | Main Stream: 4 MP (2688 x 1520) at 30 fps |
Frame Rate | Sub Stream 1: D1 (704 x 480) at 30 fps |
Frame Rate | Sub Stream 2: 720p (1280 x 720) at 30 fps |
Bit Rate Control | CBR/VBR |
Bit Rate | H.264: 3 Kbps to 8192 Kbps
H.265: 3 Kbps to 8192 Kbps |
Day/Night | Auto (ICR), Color, B/W |
BLC Mode | BLC, HLC, True WDR (120 dB), SSA |
White Balance | Auto, Natural, Street Lamp, Outdoor, Manual,
Regional Custom |
Gain Control | Auto, Manual, Shutter Priority, Gain Priority |
Noise Reduction | 3D DNR |
Motion Detection | Off, On (4 Zones, Rectangular) |
Region of Interest | Off, On (4 Zones) |
Advanced Features | Smart IR |
Image Rotation | 0°, 90°, 180°, 270°
(supports 90°, 270° at 1920 x 1080 resolution) |
Mirror | Off, On |
Privacy Masking | Off, On (4 Areas, Rectangular) |
Audio | |
Compression | G.711a, G.711Mu, AAC, G.726, PCM |
Network | |
Ethernet | RJ-45 (10/100 Base-T) |
Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
Interoperability | ONVIF Profile S and G, CGI, Milestone, Genetec, P2P |
Auto Register | Support |
Self-adaptive Scene | Support |
Streaming Method | Unicast, Multicast |
Maximum User Access | 20 Users (total bandwidth: 64 Mbps) |
Edge Storage | Network Attached Storage (NAS)
FTP, SFTP,
Micro SD Card Slot, maximum 256 GB |
Web Viewer | IE (Version 8 and higher), Chrome, Firefox, |
Management Software | Smart PSS, DSS, DMSS |
Mobile Operating System | IOS, Android |
Certifications | |
Safety | UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07 EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (Second Edition) |
Electromagnetic Compatibility
(EMC) | 47 CFR FCC Part 15, Subpart B, Class B EN 55032:2015, Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010+A1:2015; EN 55035:2017; EN 50130-4:2011+A1:2014 |
Interface | |
Audio – Input | One (1) Channel, RCA plus a Built-in Microphone |
Audio – Output | One (1) Channel, RCA |
Audio – Input | One (1) Channel (5 mA, 3 to 5 VDC) |
Audio – Output | One (1) Channel (300 mA, 12 VDC) |
Electrical | |
Power Supply | 12 VDC or PoE (IEEE 802.3af, Class 0) |
Power Consumption | < 5.4 W |
Environmental | |
Operating Conditions | –40° C to +60° C (–40° F to +140° F),
Less than 95% RH |
Storage Conditions | –40° C to +60° C (–40° F to +140° F) |
Ingress Protection | IP67 |
Construction | |
Casing | Metal |
Dimensions | 192.70 mm x 70.50 x 66.40 mm (7.59 in. x 2.77 in. x 2.61 in.) |
Net Weight | 0.59 kg (1.30 lb) |
Gross Weight | 0.78 kg (1.72 lb) |
Analytics+ Functions | |
Perimeter Protection | • Detects human or vehicle violations using the following
methods:
Tripwire: a target crosses a defined line.
Intrusion: a target enters or exits a defined perimeter.
• Monitors a combination of nine (9) detection methods.
• Search and retrieve video based on target type. |
Smart Motion Detection² | • Differentiates between and classifies human and
vehicle objects.
• Filters false alarms due to leaves, lights, animals, and
other inconsequential objects.
• Extracts human or vehicle objects from recorded video
for quick target search and retrieval. |
Intelligent Video System Functions | |
IVS triggers an alarm and takes a defined action for the following events: | |
Standard Features | • Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict |
Premium Features | |
Motion | An object moves through any part of the scene. |
Scene Change | A person or object moves the camera to change the
scene or covers the camera to obscure the scene. |
