Grandstream GBX20 Extension Module

Grandstream
Add to Wishlist
Compare

Key Features

  • 4.3 inch TFT color LCD
  • 20 SIP lines per page
  • 40 SIP lines per module

Downloads Documents & Manuals

  Grandstream GBX20 Datasheet (PDF)

$120.50

Compare
$239.19 for 3 item(s)

Grandstream GBX20 Extension Module

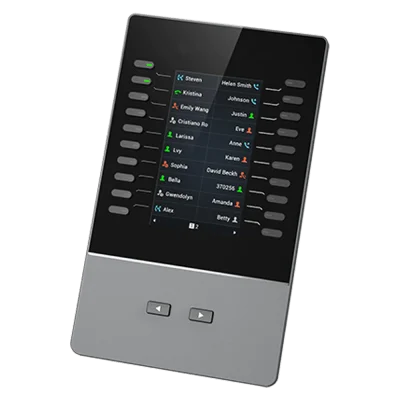

GBX20 is a backlit LCD expansion module compatible with GXV3350 and GRP2615. The module contains 20 two-color expansion buttons and 2 scroll arrow buttons (so each GBX20 can support up to 40 pins/expansion). Up to 40 contacts/extensions can be used. …A compatible fashion phone connects 4 GBX20 modules, with a total of 160 contacts/extensions. The

GBX20 is an add-on module that provides functionality, versatility, and flexibility for the Carrier Grade GRP2615 IP phone and the trendy GXV3350 IP video phone. 272×480 LCD, each module has a maximum of 40 pins and a maximum of 4160 pins. GBX20 supports BLF, park/answer, speed dial, online status, intercom, conference call, voice/broadcast, TD, and other advanced call functions. GBX20 maximizes productivity through effective call monitoring

Grandstream GBX20 Key Features:

  • 4.3 inch TFT color LCD screen
  • 20 lines per page (each module contains 2 pages, for up to 40 lines per module)
  • Combine up-to 4 daisy-chained modules for 160 contacts/extensions
  • BLF, call park /pick-up, speed-dial, presence, intercom, voice conferencing transfer/forward
SKU: GBX20 Categories: ,

Grandstream GBX20 EXT Technical Specification

Lines

  • 20 per page (each module contains 2 pages, for up to 40 lines per module Up to 160 with 4 daisy-chained modules

Compatible Grandstream Phones

  • GRP2615
  • GXV3350

Graphic Display

  • 4.3 inch (272×480) TFT color LCD

Feature Support

  • Local GUI with animation driven from the host GRP2615 or GXV3350 phone; Multiple line/call appearances

Power

  • A single GBX20 can be powered by host phone (GRP2615 or GXV3350); when 2 or more GBX20 is connected an included 12V/1A PSU is needed.

Firmware Upgrades

  • GBX20 firmware is upgraded by direct network download through host phone (GRP2615 or GXV3350)’s network connection and firmware upgrade setup

Physical

  • Dimension: 210mm*124mm*33.5mm
  • Unit weight: 360g
  • Package weight:700g

Package content

  • GBX20 Extension Board, base stand, Extension Board Connector Plate, Screws, USB cable, Quick Installation Guide

Temperature and Humidity

  • Operation: 0°C to 40°C
  • Storage: -10°C to 60°C
  • Humidity: 10% to 90% non-condensing

Compliance

  • FCC: Part 15 Class B
  • IC: ICES-003
  • CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1
  • RCM: AS/NZS CISPR32; AS/NZS 62368.1
