Grandstream GVC3202 video conferencing system

Grandstream

               Key Features

    • 1080p Full-HD video
    • Up to 3-way video conferences
    • Support for 2 monitor outputs
  •  9x zoom PTZ camera

Downloads Documents & Manuals

  Grandstream GVC3202 Datasheet (PDF)
  Grandstream GVC3202 Administration Guide (PDF)
  Grandstream GVC3202 Quick Installation Guide (PDF)
  Grandstream GVC3202 Quick User Guide (PDF)
  Grandstream GVC320x User Guide (PDF)

$1,441.04

$2,001.35 for 3 item(s)

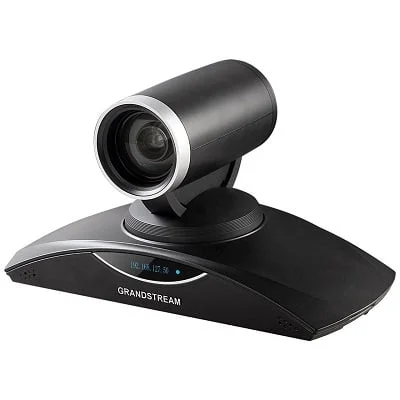

Grandstream GVC3202 Video Conferencing System

Grandstream GVC3202 Video Conferencing System is an innovative solution that can provide small businesses with a revolutionary video conferencing system that has unparalleled flexibility and performance, and can support a variety of popular video conferencing platforms and protocols right out of the box. Capacity options for enterprises that require up to 3 video conferences and support up to 2 full HD displays

 Main features of Grandstream GVC3202 video system

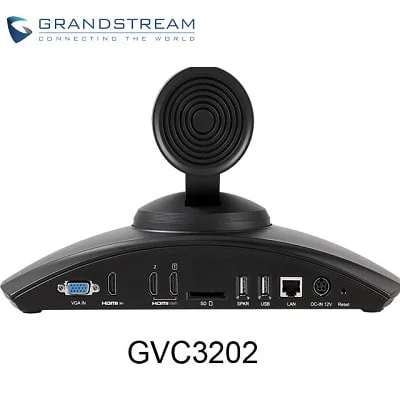

  • Support for 2 monitor outputs through 2 HDMI outputs, can be installed in three simple steps
  • 3-channel hybrid-protocol conferencing with no external MCUs/servers or extra software licenses
  •  9x zoom PTZ camera
  • Plug and Play connection to Grandstream’s IPVideo Talk video conferencing service
  • Supports most SIP and H.323 video conferencing platforms
  • Built-in Bluetooth, Gigabit ports, video recording, and screen sharing

Grandstream GVC3202  Related products

Grandstream GVC3202 Video Conferencing



For Technical Support on this product, kindly complete our Contact US  Form, or If you require additional assistance with product installation, you can reach our support center at [email protected]



Grandstream GVC3202 Technical Specifications

Graphic Display OLED with 128×32 resolution
Voice Codecs G.711μ/a, G.722 (wide-band), G.726-32, iLBC (pending), Opus, G.722.1, G.722.1c (pending), in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Video Codecs H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4Mbps
People Video Resolution 1080p from 512 Kbps, 720p from 384 Kbps, 4SIF/4CIF from 128 Kbps, SIF/CIF/QSIF/QCIF/SQ­SIF/SQCIF from 64 Kbps
Content Video Resolution Input: VGA, SVGA, XGA, WXGA, WXGA, SXGA, 1440×900, 720p, 1600×1200, 1080p (HDMI), up to 60fps; Encoding: 1280×720, 1920×1080
Output Resolution 720p, 1080p
Embedded MCU Up to 2-way 1080p conference, 3-way 720p conference, 3-way VGA conference
Dual-Stream BFCP, people video (up to [email protected]) + content video (up to [email protected], [email protected])
Audio Features AEC, ANS, AGC, PLC, CNG/VAD
Video Features FEC, dynamic display layout, picture-in-picture, picture-outside-picture, digital caption (pen­ding)
Platform Bridging Bridge SIP calls with any Android VoIP apps such as Skype, Skype for Business, Google Han­gouts and more
Telephony Features Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 3-way audio/video conference, downloadable XML phone book, LDAP, call waiting, call history, flexible dial plan, personalized music ring tones, server redundancy & fail-over
Sample Applications Skype, Google Hangouts, Skype for Business, Web browser, Facebook, Twitter, YouTube, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development
Application Deployment Allows Android 4.4.2 compliant applications to be deployed in the device with provisioning control
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, 128/256-bit SRTP, HTTPS, 802.1x media access control
Multi-Language English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and more
Upgrade/Provisioning Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file
Power & Green Energy Efficiency Universal power adapter included: Input 100-240VAC 50-60Hz; Output 12VDC/5A (60W)
Package Content GVC3202 video conference system, GAC2500 Speaker/MIC, remote control, 2 AAA bat­teries, universal power supply, network cable (1.5 meters), USB extension cable (5 meters), mounting kit, 3 HDMI cables (one 1.5 meter cable, one 3 meter cables and one 5 meter cable), lens cover, lens cleaning cloth, quick installation guide, GPL license
Temperature and Humidity Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing
Compliance FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter), Part 15C, Part 15E.407, Part 2.1091

CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS, EN301893, EN62311

RCM: AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268
