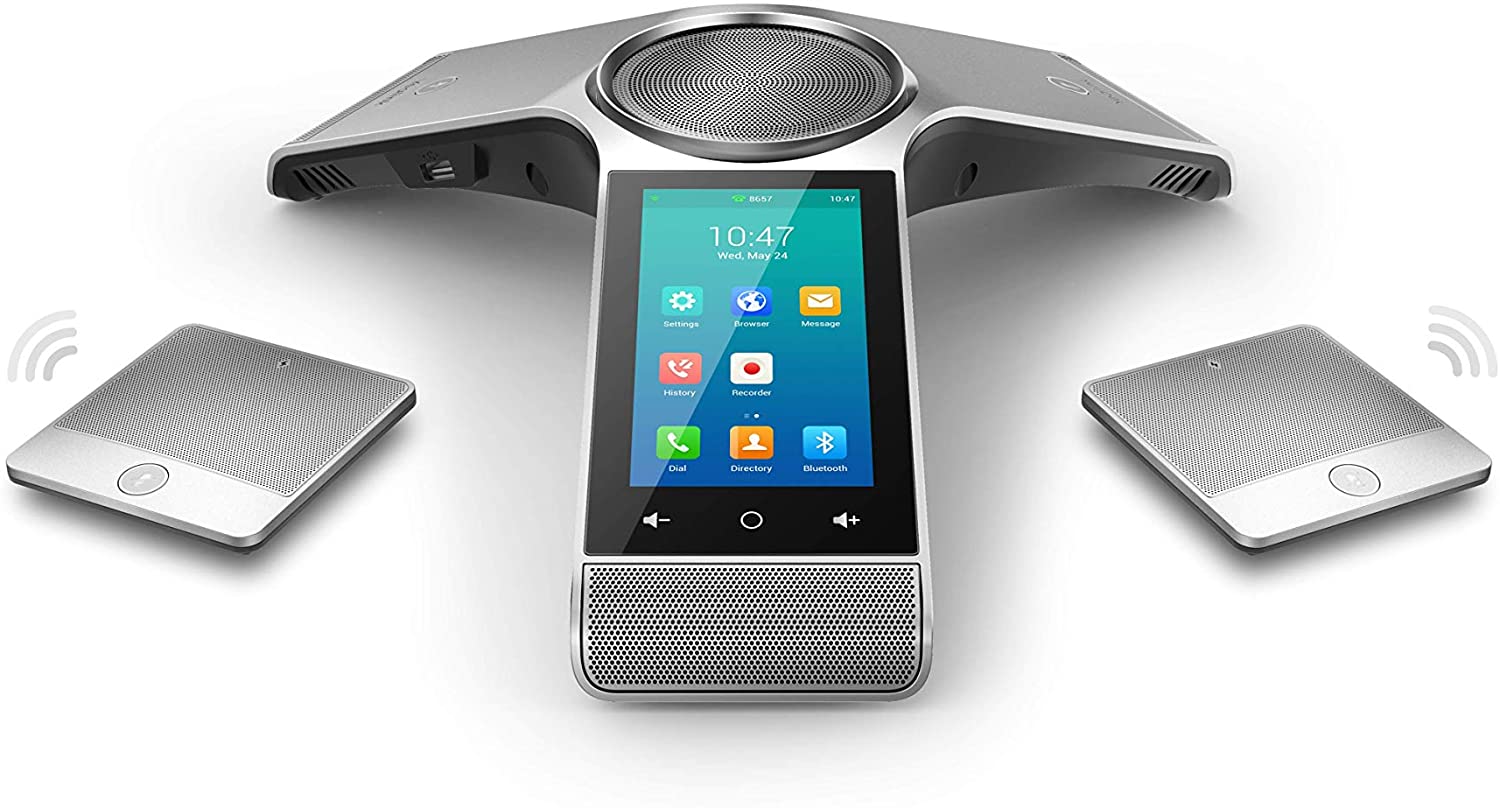

Yealink CP960 HD IP Conference Phone, 2 Wireless Expansion Microphones. 5-Inch Color Touch Screen


Got A Question? Contact Us.

We Offer Good Discount      Expert Technical Support

Key Features

  • 5-inch Multi-touch Screen
  • 2 x CPW90 Wireless Expandable Microphones
  • Zoom Controlled

Downloads Documents & Manuals


$1,012.00 for 3 item(s)

Yealink CP960 HD IP Conference Phone 2 Wireless Mics is a zoom conference phone with two DECT microphones. Yealink CP960W ZOOM is an Optima HD IP business conference phone that supports zoom and provides hands-free calling, microphone and zoom controller. Built on  Android operating system, the CP960 continuously improves the user experience, and achieves spectacular balance between simplicity and refinement. CP960 provides unparalleled audio clarity and is comes with Yealink Optima HD voice technology, telephone users believe they are already sitting there. There are 2 DECT microphones in one room.

Yealink CP960 HD IP Conference Phone 2 Wireless MicsYealink CP960WZOOM Key Features

  • 5” 720×1280 multi-touch screen
  • Optimal HD audio, full duplex technology
  • 20-foot (6-meter),360-degree microphone pickup rang
  • Supports Office 365, and upgradability of device applications to Teams or SFB
  • Based on Android OS
  • Background noise suppression
  • 3-Microphone Array
  • 2 x CPW90 DECT Microphones included
CP960 conference phone software and hardware together  improves the sound quality. Yealink-CP960 is comes with 3 built-in microphones with 6m and 360° pickup area.  CP960 is the ideal choice for any meeting room that requires the best sound quality, just like everyone is sitting at the same table!

Easy to use and low learning cost.

The 5-inch multi-touch screen provides appealing visual presentation and simple menu navigation. CP960 even allows users to synchronize appointment times in real time from their Outlook calendars, and they can join appointments with the tap of a finger.

The efficient activation and management

Yealink CP960 is combined with Yealink’s efficient automatic activation mechanism, including telephone activation and configuration. Administrators can take advantage of centralized provisioning, management and upgrades.  CP960  supports multiple device management platforms such as Microsoft and Yealink, and Unify Square device management platforms.

Ergonomic design

The fashionable and professional CP960 is coated with UV and silver paint, giving each meeting room a unique appearance. The 5-inch multi-touch screen with 720 x 1280 high resolution provides fast and smooth control. At your fingertips, making conference calls easier and more convenient

Related Products

For Technical Support on this product, kindly complete our Contact US  Form, or If you require additional assistance with product installation, you can reach our support center at [email protected].

Yealink CP960WZOOM – Technical Specifications

Audio Features

  • Optimal HD audio
  • Yealink Noise Proof Technology
  • 20-foot (6-meter) microphone pickup range
  • Apply to medium to large conference room
  • Built-in 3-microphone array, 360-degree voice pickup
  • 56mm diameter and 10w speaker
  • Full-duplex speakerphone with AEC
  • Echo cancellation tail length is up to 320ms
  • Background noise suppression
  • Audio codec: SILK, Opus, G.722, G.722.1, G.722.1C, G.711 (A/µ), G.723, G.726, G.729AB, ILBC

Call Handling Features

  • P2P call
  • Cloud PSTN call
  • Call hold/Call mute/Call transfer/Call forward
  • Group SimRing
  • Second forwarded if unanswered
  • Block calls without caller ID

Conference Features

  • One-Click Join
  • Add a Participant to existing meeting
  • Conference Mute/Unmute participants
  • Display Meeting Info
  • Calendar access to my meetings
  • Show acceptance status per participant
  • Schedule meeting

Presence and Contacts

  • Presence status synchronise with client, Presence status control
  • Corporate Directory Access
  • Show contact picture

Phone Features

  • Single sign-in
  • Visual voicemail
  • Change VM playback speed
  • Phone lock
  • Screensaver
  • Power Saving

Display and Indicator

  • 5” 720×1280 capacitive touch screen
  • Volume key
  • Home button
  • Multilingual user interface
  • Modern interface, Full keyboard
  • Presence status control: available, busy, DND, be right back, off work, away
  • 1 x RJ45 10/100M Ethernet port
  • Built-in Wi-Fi (2.4GHz/5GHz, 802.11.b/g/n/ac) (pending)
  • Built-in Bluetooth 4.0 (pending)
  • Power over Ethernet (IEEE 802.3af ), class 4
  • 2 x Wired MIC port
  • 2 x USB 2.0 port
  • 1 x 3.5mm audio-out port
  • 1 x USB 2.0 Micro-B device port
  • 1 x Security slot

Network and Security

  • SIP v1 (RFC2543), v2 (RFC3261)
  • IPv4/IPv6
  • IP assignment: static/DHCP
  • HTTP/HTTPS web server
  • Time and date synchronisation using SNTP
  • SRTP for voice, Transport Layer Security (TLS)
  • HTTPS certificate manager
  • Digest authentication using MD5/MD5-sess
  • IEEE802.1X


  • Configuration: browser/phone/auto-provision and Device Management Platform
  • Provisioning priority management
  • Auto Provisioning via Activation Code
  • Yealink Redirection and Provisioning Service (RPS)
  • QoE (Monitoring Reports)
  • Reset to factory, reboot
  • Package tracing export, system log
  • Screenshot via URL
  • View license status
  • Supports Microsoft Device Management Platform
  • Supports Yealink Device Management Platform
  • Supports Unify Square Device Management Platform

Other Physical Features

  • Color: Space Silver
  • External Yealink PoE adapter (optional)
  • Power consumption (PoE): 5.25w-12.3w
  • Dimension (W*D*H): 338mm*338mm*74mm
  • Operating humidity: 10~90%
  • Storage temperature: -10~50°C (+14~122°F)

Package Features

  • Package content:
    – Yealink CP960 IP conference phone
    – Ethernet Cable (7.5m CAT5E UTP cable)
    – Wireless Microphone CPW90 (Optional)
    – Wired Microphone CPE90 (Optional)
    – Quick Start Guide
    – Yealink PoE Adapter YLPOE30 (Optional)
  • Qty/CTN: 4 PCS
  • N.W/CTN: 5.6 kg (CP960)/10.4 kg (CP960-WirelessMic)
  • G.W/CTN: 8.4 kg (CP960)/11.6 kg (CP960-WirelessMic)
  • Giftbox size: 405mm*392mm*141mm
  • Carton Measurement: 589mm*401mm*421mm
