Grandstream GWN7610 Wireless Wifi Access Point
, , ,

Grandstream GWN7610 Wireless Wifi Access Point Dual Band

Grandstream
Availability:

Out of stock
Add to Wishlist
Compare
  • Each radio supports up to 16 SSIDs and simultaneously supports more than 250 WLAN clients
  • Improves the QoS of real-time applications with low latency.

$94.78

Out of stock

Compare
$335.09 for 3 item(s)

Grandstream GWN7610 Wireless Wifi Access Point Dual Band

Grandstream GWN7610 Wireless Wifi Access Point Dual Band is a competent and powerful 802.11ac Wireless Wifi Access Point. It is suitable for small and medium-sized companies that have several office floors, in commercial locations and offers 3 × 3: 3 dual-band MIMO technology and a sophisticated antenna design for maximum network performance and extended WiFi range.

For ease of installation and management, the GWN7610 uses a controller-less distributed network management design in which the controller is embedded in the product’s web user interface so that each access point can independently manage a network of up to 50 GWN7610s, without a separate hardware/software controller and a single point of failure.

This wireless access point can be coupled with any third-party router as well as with routers of the Grandstream GWN series. With support for advanced QoS, real-time, low-latency applications, more than 250 client devices per AP, and two Gigabit network ports with PoE / PoE +, the GWN7610 is an ideal wireless access point for large and small wireless network deployments.

Grandstream GWN7610LR Features

  • Dual Gigabit ports supporting PoE/PoE+, USB connections for future location-based services, and other Internet of Things (IoT) applications
  • Dual-band 3 × 3: 3 MIMO technology and complex antenna design, the maximum network throughput is up to 1.75 Gbit/s, and the extended range is up to 175 meters
  • Each radio supports up to 16 SSIDs and simultaneously supports more than 250 WLAN clients
  • Improves the QoS of real-time applications with low latency.
  • Automatically adjusts the power after the PoE or PoE+ network is automatically detected, which is highly energy-efficient
  • Provides high-end security features that most third-party WiFi hotspots don’t have, including one security per device The certificate uses SHA256 encryption and a secure random password as the standard for each device.

Related Products

SKU: GWN7610 Categories: , , ,

Grandstream GWN7610 Technical Specification

WiFi Standards

  • IEEE 802.11 a/b/g/n/ac

Antennas

  • 3x 2.4 GHz, gain 3 dBi, internal antenna
  • 3x 5 GHz, gain 3 dBi, internal antenna

WiFi Data Rates

  • IEEE 802.11ac: 6.5 Mbps to 1300 Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • IEEE 802.11n: 6.5 Mbps to 450 Mbps
  • IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • *Actual throughput may vary depending on many factors including environmental conditions, the distance between
    devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

  • 2.4GHz radio: 2.400 – 2.4835 GHz
  • 5GHz radio: 5.150 – 5.250 GHz, 5.725 – 5.850 GHz (FCC, IC, RCM)

Channel Bandwidth

  • 2.4G: 20 and 40 MHz
  • 5G: 20,40 and 80 MHz

WiFi And System Security

  • WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical
    data/control lockdown via digital signatures, unique security certificate and random default
    password per device

MIMO

  • 3×3:3 2.4GHz, 3×3:3 5GHz

Coverage Range

  • Up to 575 ft. (175 meters)
  • *coverage range can vary based on the environment

Maximum TX Power

  • 5G: 26dBm (FCC) / 20dBm (CE)
  • 2.4G: 26dBm (FCC) / 17dBm (CE)
  • *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

  • 2.4G: 802.11b:-92dBm@11Mbps; 802.11g:-76dBm@54Mbps; 802.11n 20MHz: -73dBm@MCS7; 802.11n 40MHz:-70dBm@MCS7
  • 5G: 802.11a:-94dBm@6Mbps; 801.11a:-77dBm@54Mbps; 802.11ac 20MHz: -69dBm@MCS8; 802.11ac HT40:-65dBm@MCS9; 802.11ac 80MHz:-61dBm@MCS9
  • *Receiver sensitivity varies by frequency band, channel width and MCS rate

SSIDs

  • 16 SSIDs per access point

Concurrent Clients

  • 250+

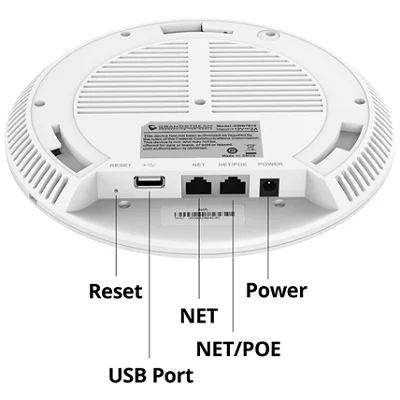

Network Interfaces

  • 2x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

  • 1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock

Mounting

  • Indoor wall mount or ceiling mount, kits included

LEDs

  • 3 tri-colour LEDs for device tracking and status indication

Network Protocols

  • IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

  • 802.11e/WMM, VLAN, TOS

Network Management

  • The embedded controller in GWN7610 allows it to auto-discover, auto-provision and manage up to 50 GWN7610s in a network

Auto Power Saving

  • Self-power adaptation upon auto detection of PoE or PoE+

Power And Green Energy Efficiency

  • DC Input: 24VDC/1A
  • Power over Ethernet 802.3af/802.3at compliant
  • Maximum Power Consumption:13.8W

Environmental

  • Operation: 0°C to 50°C
  • Storage: -10°C to 60°C
  • Humidity: 10% to 90% Non-condensing

Physical

  • Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 540g
  • Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 600g
  • Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 900g

Package Content

  • GWN7610 802.11ac Wireless AP, Mounting Kits, Quick
