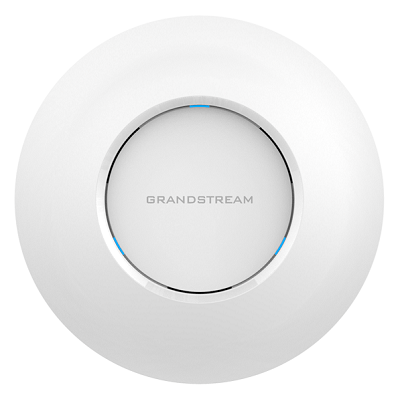

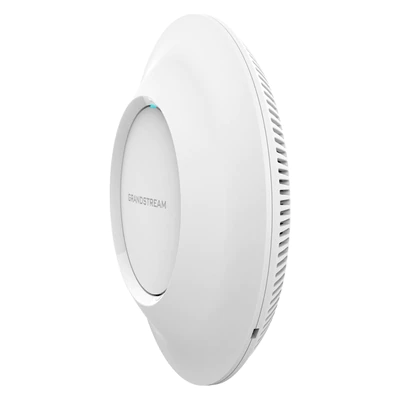

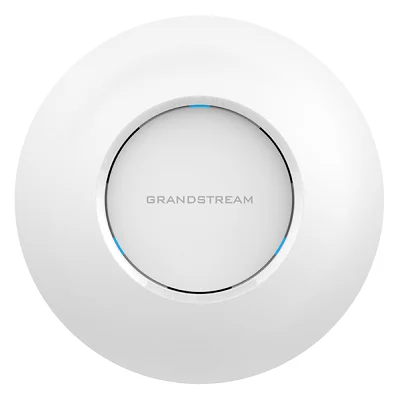

Grandstream GWN7615 WiFi Access Point
[digitnet_promo_icons]
Features of Grandstream GWN7615 WIFI access point
- Grandstream GWN7615 has dual-band 3×3:3 MU-MIMO technology
- Automatic detection of PoE or PoE + adaptive power supply
- It can Support about 200+ concurrent Wi-Fi client devices
- GWN7615 WIFI access point covers up to 175-meters range
- Improved QoS to achieve low-latency real-time applications
Downloads Documents & Manuals
- Brands: Grandstream
- Color: White
- Power Method: PoE, Power Adapter
Click any tab above to view the information.
Description
[vc_row][vc_column][vc_column_text]
Grandstream GWN7615 WiFi Access Point
Grandstream GWN7615 WIFI access point is a business-class 802.11ac Wave2 Wi-Fi access point that can provide scalability for medium and high-density environments. It provides 3 × 3: 3 dual-band MUMIMO technology and an advanced antenna designed to reach maximum network performance and improved WiFi coverage area. For ease of installation and management, GWN7615 adopts a controller-less WAN management solution, and the controller is embedded in the product’s Web user interface.
The GWN7615 hotspot is also compatible with the modern-day cloud and local Wi-Fi management platforms GWN. Cloud and GWN Manager, making it an ideal Wi-Fi hotspot for Wi-Fi voice and seamless connection with stylish wired WiFi-creating IP phones. GWN7615 wifi access point can be used to create scalable solutions with QoS, low-latency real-time applications, mesh networks, gateways, more than 200 concurrent clients per AP, and two Gigabit PoE / PoE + network ports. It depends on your needs. It’s ideal for application scenarios. From office buildings to commercial buildings to hotels.
Features of Grandstream GWN7615 WIFI access point
- Grandstream GWN7615 has dual-band 3×3:3 MU-MIMO technology
- Automatic detection of PoE or PoE + adaptive power supply
- It can Support about 200+ concurrent Wi-Fi client devices
- GWN7615 WIFI access point covers up to 175-meters range
- Improved QoS to achieve low-latency real-time applications
- Integrated controller can manage up to 50 local access Point GWN series; GWN.Cloud provides unlimited hotspot management; GWN Manager provides object-based driver software
- Unique security certificate/random default password per device
- 2x Gigabit wireline ports
[/vc_column_text] [/vc_column][/vc_row]
Accessories
This section can show compatible accessories, installation kits, cables, brackets, batteries, or related add-ons.
Specifications
This section shows product attributes such as brand, model, SKU, power, size, material, color, and compatibility.
Grandstream GWN7615 Technical Specification
WiFi Standards
- IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas
- 3 dual band internal antennas
- 2.4GHz, gain 3dBi
- 5 GHz, gain 3dBi
WiFi Data Rates
- IEEE 802.11ac: 6.5 Mbps to 1300Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- IEEE 802.11n: 6.5 Mbps to 450 Mbps
- IEEE 802.11b: 1, 2, 5.5, 11Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4 GHz Radio: 2412 – 2484 MHz
- 5 GHz Radio: 5180-5825 MHz
Channel Bandwidth
- 2.4G: 20 and 40MHz
- 5G: 20, 40, and 80MHz
WiFi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 3×3:3 2.4G(MIMO)
- 3×3:3 5G(MU-MIMO)
Coverage Range
- Up to 175 meters
- *coverage range can vary based on the environment
Maximum TX Power
- 2.4G: 26 dBm
- 5G: 24 dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
- 16 SSIDs per access point
Concurrent clients
- 200+
Network Interfaces
- 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
- 1x Reset Pinhole, 1x Kensington lock
Mounting
- Indoor wall or ceiling mount, kits included
LEDs
- 3 x tri-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN APs
- GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- PoE 802.3af/ 802.3at;
- Max Consumption: 12.5W
Environmental
- Operation: 0°C to 40°C
- Storage: -10°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension: 205.4 x 205.4 x 45.9mm;
- Unit Weight: 500g
- Entire Package Dimension: 258 x 247 x 86mm;
- Entire Package Weight: 867.3g
Package Content
- GWN7615 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance
- FCC, CE, RCM, IC
