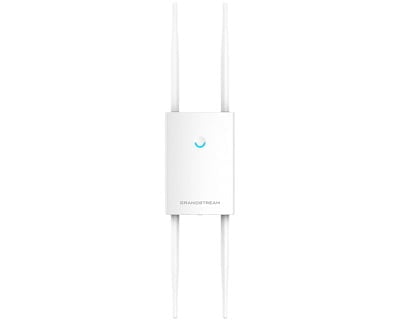

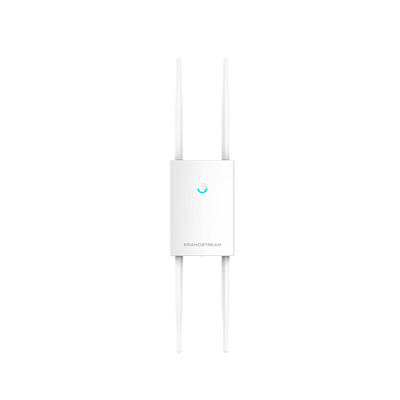

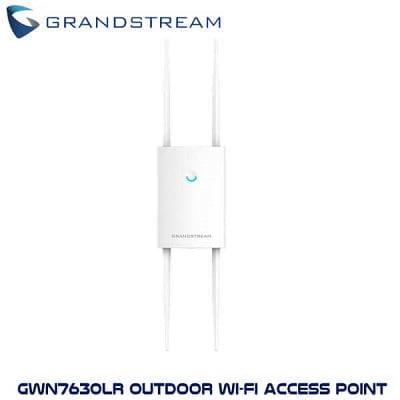

Grandstream GWN7630LR Outdoor Dual Band Long-Range Access Point
[digitnet_promo_icons]
Grandstream GWN7630LR Outdoor Dual Band Long-Range Access Point is an outdoor long-range 802.11ac Wave-2 WiFi outdoor access point, suitable for large and medium size enterprises and companies that requires long range coverage for indoor and outdoor use. It also provides weatherproof housing and heat resistant technology, dual-band 4 × 4: 4 MUMIMO technology and advanced antenna design to achieve maximum network performance, supporting more than 200 clients and an extended range of up to 300 meters.
- Brands: Grandstream
- Color: White
- Network connection type: PoE
Click any tab above to view the information.
Description
[vc_row][vc_column][vc_column_text]
Grandstream GWN7630LR Outdoor Dual Band Long-Range Access Point
Grandstream GWN7630LR Outdoor Dual Band Long-Range Access Point is an outdoor long-range 802.11ac Wave-2 WiFi outdoor access point, suitable for large and medium-sized enterprises and companies that require long-range coverage for indoor and outdoor use. It also provides weatherproof housing and heat resistant technology, dual-band 4 × 4: 4 MU-MIMO technology, and advanced antenna design to achieve maximum network performance, supporting more than 200 clients and an extended range of up to 300 meters.
To facilitate installation and management, GWN7630LR includes a built-in driver, which is built into the product’s Web user interface. It also supports the trendy free cloud-based Wi-Fi management platform GWN.Cloud. Provide seamless connection with trendy Wi-Fi voice and video IP phones. GWN7630LR supports advanced QoS, real-time, low-latency applications, mesh networks, and relay portals. It is an ideal outdoor WiFi hotspot for enterprises, multi-story offices, warehouses, hospitals, schools, etc.
Grandstream GWN7630LR Features
- 2x Gigabit Wireline ports and 2.33Gbps Wireless throughput
- Dual-Band 4×4:4 MIMO technology
- Supports PoE / PoE+
- It Supports over 200 Concurrent Wi-Fi client devices
- GWN7630LR transmits up to 300 Meter Wireless Range
- Anti-Hacking secure boot and critical data/control lockdown
- Supported by GWN.Cloud
- Flexible/detachable/ changeable antenna for different application scenarios.
[/vc_column_text]Related products
Accessories
This section can show compatible accessories, installation kits, cables, brackets, batteries, or related add-ons.
Specifications
This section shows product attributes such as brand, model, SKU, power, size, material, color, and compatibility.
Grandstream GWN7630LR Technical Specification
WiFi Standards
- IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas
- 4 detachable/changeable dual-band omnidirectional antennas
- 2.4GHz, gain 3.5dBi
- 5GHz, gain 3.5dBi
WiFi Data Rates
- IEEE 802.11ac: 6.5 Mbps to 1733Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- IEEE 802.11n: 6.5Mbps to 600Mbps
- IEEE 802.11b: 1, 2, 5.5, 11Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4 GHz Radio: 2412 – 2484 MHz
- 5GHz Radio: 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5850MHz
*Not all frequency bands can be used in all regions.
Channel Bandwidth
- 2.4G: 20 and 40MHz
- 5G: 20, 40 and 80MHz
System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 4×4:4 2.4G (MIMO)
- 4×4:4 5G (MU-MIMO)
Coverage Range
- Up to 300 meters
*Coverage range can vary based on environment
Maximum TX Power
- 2.4G: 27 dBm
- 5G: 25 dBm
*Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity
- 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
- 16 SSID per radio
Concurrent clients
- 200+
Network Interfaces
- 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
- 1× Reset Pinhole
Mounting
- Wall mount or pole mount – kits included
LEDs
- 1x tri-colour LEDs for device tracking and status indication
Network Protocols
- IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN APs
- GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- PoE 802.3af/ 802.3at
- Max Consumption: 16.5W
Environmental
- Operation: -30°C to 60°C
- Storage: -30°C to 70°C
- Humidity: 5% to 95% Non-condensing
Physical
- Unit Dimension: 533.1 × 115 × 40mm
- Unit Weight: 564g
- Unit + Mounting Kits Dimension: 533.1×115 ×62mm
- Unit + Mounting Kits Weight: 706g
- Entire Package Dimension: 258 × 247× 86mm
- Entire Package Weight: 978g
Package Content
- GWN7630LR 802.11ac Wireless AP
- Mounting Kits
- Quick Start Guide
Weatherproof Grade
- IP66-level weatherproof capability when installed vertically
Compliance
- FCC, CE, RCM, IC
