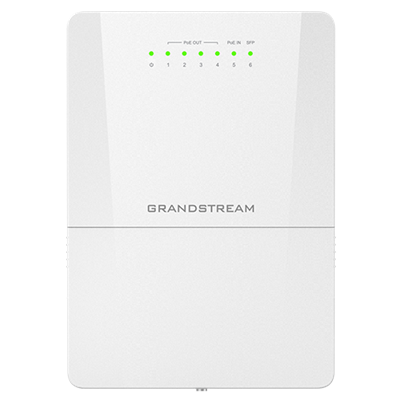

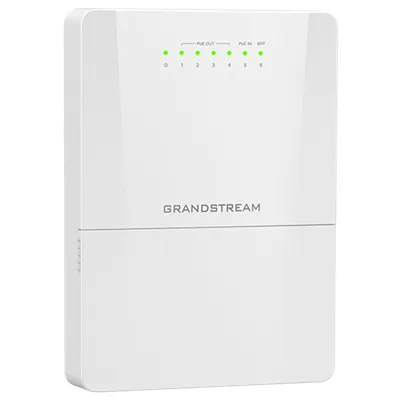

Grandstream GWN7710R - Outdoor Layer 2 PoE+ Switch | 6-Port Managed

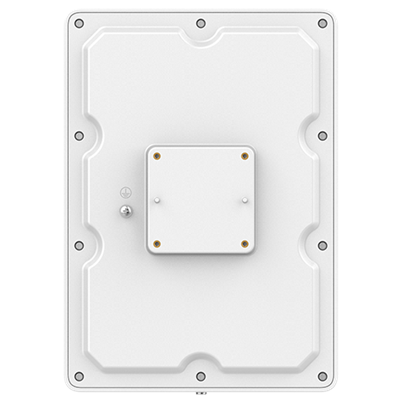

Grandstream GWN7710R - Outdoor Layer 2 PoE+ Switch | 6-Port Managed - Image 2

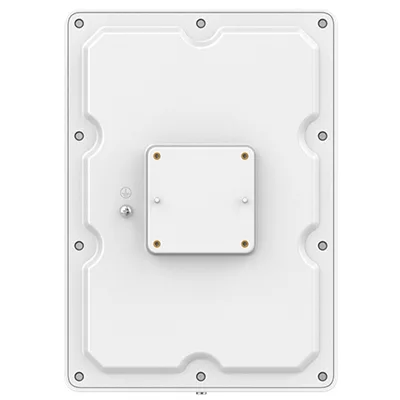

Grandstream GWN7710R - Outdoor Layer 2 PoE+ Switch | 6-Port Managed - Image 3

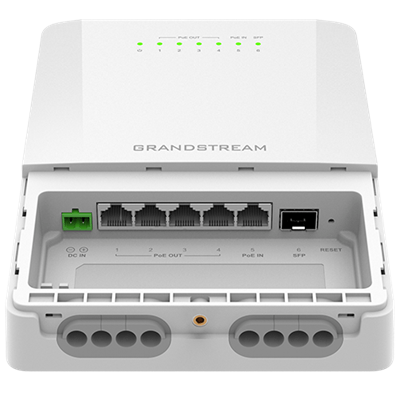

Grandstream GWN7710R - Outdoor Layer 2 PoE+ Switch | 6-Port Managed - Image 4
, , , , , , , , , ,

Grandstream GWN7710R – Outdoor Layer 2 PoE+ Switch | 6-Port Managed

Grandstream
Compare

GWN7710R-QIG-ML

GWN771x-User-Manual

GWN770xP_QIG

  • 5 Gigabit Ports: 4× PoE output, 1× PoE input
  • Flexible PoE Output: Up to 60W (Port 1), 30W (Ports 2–4)
  • Supports 802.3af/at and 24V/48V passive PoE
  • SFP Port: For long-distance fiber uplink
  • PoE Watchdog: Auto-recovers non-responsive devices
  • DHCP Snooping: Blocks rogue DHCP traffic

$95.07

Compare

Grandstream GWN7710R – Outdoor Layer 2 PoE+ Switch | 6-Port Managed

Grandstream GWN7710R, a robust 6-port Layer-2 Lite managed switch engineered for performance and reliability. Designed for harsh environments, it features weatherproof housing, advanced VLAN & QoS management. It also has 5 PoE+ ports for seamless device connectivity, ideal for IP cameras, access points, and other PoE-powered devices. Ensure uninterrupted outdoor networking with the Grandstream GWN7710R 6-Port PoE Switch.

Perfect for smart city deployments, campus networks, or surveillance systems, this managed Layer-2 switch delivers rugged durability, flexible VLAN control, and 5 PoE+ ports, all housed in an IP67-rated weatherproof design built to withstand the elements.

Key Features of Grandstream GWN7710R

  • 5 Gigabit Ports: 4× PoE output, 1× PoE input
  • Flexible PoE Output: Up to 60W (Port 1), 30W (Ports 2–4)
  • Supports 802.3af/at and 24V/48V passive PoE
  • SFP Port: For long-distance fiber uplink
  • PoE Watchdog: Auto-recovers non-responsive devices
  • DHCP Snooping: Blocks rogue DHCP traffic
  • IP66 Rated: Waterproof, dustproof; operates from -40°C to 60°C
  • Network Management: Web UI, GWN Manager, GDMS supported
  • STP/RSTP: Ensures fast failover and link redundancy
  • Built-in QoS: Prioritizes critical traffic
SKU: GWN7710R Categories: , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
Brands

Color

Network connection type

Network Protocol

IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at

PoE Output

Standard PoE output Mode (Default)
Passive 24VDC or 48VDC output Mode (Configured via UI)

Grandstream GWN7710R Technical Specifications

brandGrandstream
Network ProtocolIPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Communication Ports5x Gigabit Ethernet Ports

1x 1G/2.5G SFP Port

Power Supply• 12V-57V DC input

• Standard PoE /PoE+/PoE ++

PoE In and PoE Out PortsPoE In: Port 5;

PoE Out: Port 1 – Port 4

PoE Output• Standard PoE output Mode (Default)

• Passive 24VDC or 48VDC output Mode (Configured via UI)

PoE Output Power Budget• Powered by Standard PoE In (802.3af/at/bt):

802.3af input: 3W output budget

802.3at input: 15W output budget

802.3bt input: 60W output budget

• Powered by DC In (12V~57V):

DC In>12V: 60W output budget

DC In>24V: 72W output budget

DC In>36V: 100W output budget

Note: When using the DC input, the budget of PoE output depends on the external DC input power.

Max Output Power Per Port• Standard PoE output Mode:

Port 1 – Port 4 up to 30W on each PoE port;

• Passive PoE output Mode:

Port 1: 4-pair 48V DC up to 60W or 4-pair 24V DC up to 30W

Port 2 – Port 4: 2-pair 48V DC up to 30W or 2-pair 24V DC up to 15W

* Note:

•4-Pair: Powered on pins: 1,2,4,5(+),3,6,7,8(-)

•2-Pair: Powered on pins: 4,5(+),7,8(-)

Auxillary Ports1x Reset Pinhole
Forwarding ModeStore-and-forward
Total non-blocking throughput6Gbps
Switching Capability15Gbps
Jumbo Frame2K/3K/4K/5K/6K/7K/8K/9K/12K/15K
Forwarding Rate11.16Mpps
Packet Buffer4Mb
MAC8K MAC address capacity
VLAN• Supports up to 32 VLANs (Out of 4K VLAN IDs)

• Port-based VLAN, 802.1Q VLAN

• Voice VLAN

LAG3
MulticastIGMP snooping, Report Message Suppression
QoS• Auto prioritization of the incoming port of the packet

• Supports port priority, 802.1P priority, and DSCP priority

• Bandwidth control

• Rate limit

DHCPDHCP client
MaintenanceBackup and restore, System reboot, Factory reset, Firmware upgrade, Support MAC address search, SNMP, LLDP

Monitoring including port statistics, Port mirroring, Cable test, and Ping

Security• Storm control

• DHCP Snooping

• Spanning Tree

• Loop prevention

• PoE Watchdog

MountingPole/Wall-Mount/DIN-Rail
LED Indicators• Per device System on: Green

• Per Ethernet port Link/Activity: Green;

• Per Passive PoE out port 48VDC: Orange

• Per Passive PoE out port 24VDC: Blue

• Support LED indicator switch

ESD± 16kV Air, ± 16kV Contact
Environmental• Operating Temperature: -40 to 60 °C (-40 to 140 °F)

• Storage Temperature: -40 to 70 °C (-40 to 158 °F)

• Operating Humidity: Support IP66 waterproof

• Storage Humidity: 10% to 95% Non-condensing

Dimensions (LxWxH)Unit: 210 x 150 x 52mm

Package: 466 x 286 x 258mm

WeightUnit: 0.75KG

Entire Package :1.35 KG

Package Content1x Switch, Rack-mounting Standard Brackets, 1x QIG,4x assembled screw, 4x expansion screw ,2 x Metal straps,1x Phoenix connector
ComplianceFCC, CE, RCM, IC
