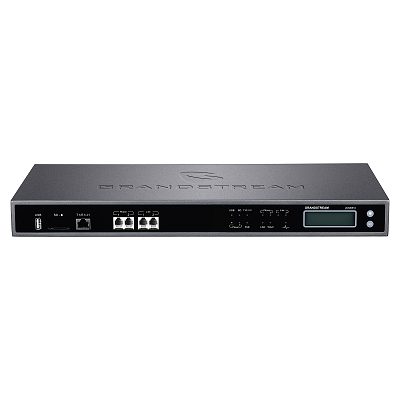

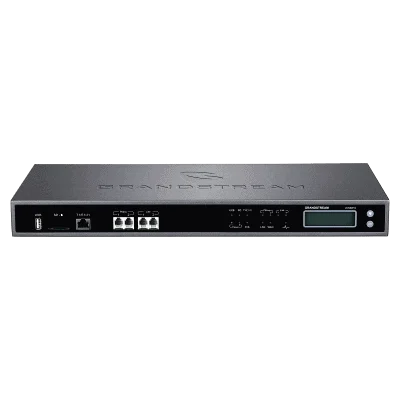

Grandstream UCM6510 Enterprise IP PBX

Grandstream UCM6510 – Technical Specifications

Interfaces

• Analog Telephone FXS Ports 2 RJ11 ports (both with lifeline capability in case of power outage)
• PSTN Line FXO Ports 2 RJ11 ports (both with lifeline capability in case of power outage)
• T1/E1/J1 Interface 1 RJ45 port
• Network Interfaces Dual Gigabit ports (switched or routed) with PoE; A 3rd Gigabit port for Hot-Standby Clustering
• NAT Router Yes (user configurable)
• Peripheral Ports USB, SD
• LED Indicators Power 1/2, PoE, USB, SD, T1/E1/J1, FXS 1/2, FXO 1/2, LAN, WAN, Cluster Heartbeat
• LCD Display 128×32 dot matrix graphic LCD with DOWN and OK buttons
• Reset Switch Yes, long press for factory reset and short press for reboot

Voice/Video Capabilities

• Voice-over-Packet Capabilities LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711
• Voice and Fax Codecs G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38
• Video Codecs H.264, H.263, H263+
• QoS Layer 3 QoS, Layer 2 QoS

Signaling & Control

• In Audio, RFC2833, and SIP INFO In Audio, RFC2833, and SIP INFO
• PRI, SS7, MFC/R2, RBS (pending) PRI, SS7, MFC/R2, RBS (pending)
• Provisioning Protocol & Plug-and-Play TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66/multicast SIP SUBSCRIBE/mDNS), eventlist between local and remote trunks
• Network Protocols TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261),
• STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending)
• Disconnect Methods Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone

Security

• Media Encryption SRTP, TLS, HTTPS, SSH
• Advanced Defense Fail2ban, alert events, Whitelist, Blacklist, strong password based access control

Physical

• Universal Power Supply Input: 100 ~ 240VAC, 50/60Hz; Output: DC+12V, 1.5A;
• Physical Unit Weight: 2.165 kg; Package Weight: 3.012 kg
• Dimensions 440mm(L) x 185mm(W) x 44mm(H)
• Environmental Operating: 32 – 113ºF / 0 ~ 45ºC, Humidity 10 – 90% (non-condensing) Storage: 14 – 140ºF / -10 ~ 60ºC, Humidity 10 – 90% (non-condensing)
• Mounting Rack mount & Desktop

Additional Features

• Multi-Language Support English/Simplified Chinese/Traditional Chinese/Spanish/French/Portuguese/German/Russian/Italian/Polish/Czech for Web UI; Customizable IVR/voice prompts for English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic
• Caller ID Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT Japan (pending)
• Polarity Reversal/Wink Yes, with enable/disable option upon call establishment and termination
• Call Center Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/work-load, in-queue announcement
• Customizable Auto Attendant Up to 5 layers of IVR (Interactive Voice Response)
• Maximum Call Capacity Up to 2000 registered SIP endpoints, up to 200 concurrent calls
• Conference Bridges Up to 8 bridges, up to 64 simultaneous conference attendees
• Compliance FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS ITU-T K.21 (Basic Level); UL 60950 (power adapter) T1: TIA-968-B Section 5.2.4 E1: TBR12/TBR13, E1: AS/ACIF
