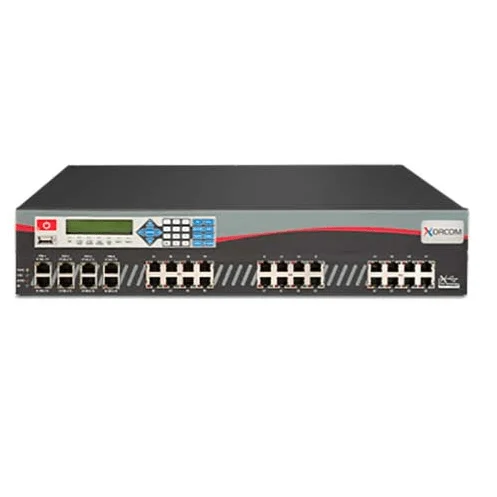

Xorcom CXE2000 IP-PBX with CompletePBX

Xorcom CXE2000/NU  – Technical Specifications

Software

• Asterisk distribution Xorcom CompletePBX version 3.x
• Asterisk version 1.8x
• Linux version CentOS 6.2
• GUI Based on FreePBX (base version: 2.10)
• Security Intrusion prevention software; firewall protection
• Rapid Tunneling™ Utility providing remote access for product support purposes

Hardware

• Processor Intel Atom D2500, Dual Core, 1.86GHz
• RAM 2 GB
• Hard disk From 250GB 2.5″ (optional upgrade to 500GB)
• RAID1 Dual hard drive for increased system reliability
• Fan 3 redundant fans
• Echo Cancellation module Voice enhancement & echo cancellation (optional)
• USB 2 external USB 2.0
• Analog Lines Fail-over In case of power outage or an Asterisk malfunction, up to six analog PSTN lines are routed directly to predetermined analog extensions.
• I/O Ports Input/Output ports for Asterisk peripheral device support (model-specific)
• Rapid PA™ Public Address capability for FXS port(s) (optional and model-specific)

Telephony

• Maximum number of concurrent calls 45 *Depends on codec used
• Maximum number of built in analog ports 32 (additional ports with external Astribank units)
• Number of E1 / T1 ports 1 (up to 30 concurrent PRI/R2/CAS calls)
• Maximum telephony modules supported internally 4 (additional ports are supported by adding Astribank units)
• Maximum number of telephony ports supported internally 54 (1x E1 PRI/R2/CAS + 24 analog ports)
• Supported telephony modules
• 8 ports FXS
• 8 port FXS + I/O ports
• 8 ports FXO
• 2 ports FXO, 6 ports FXS + I/O ports
• 6 ports FXO, 2 ports FXS
• 1 E1 / T1 PRI/R2/CAS port
• Up to 8 BRI ISDN ports

Power

• Power supply Internal
• Voltage Switching, auto adjust 110/220 Volts, 50/60 Hz
• Power consumption 230 Watts (maximum)
• Built in grounding connection

Network

• Ethernet port 2x 10/100/1000 Mb/s

Maintenance and Support

• LCD (Liquid Crystal Display) touch panel, supporting:
• Status of active systems, including:
• all configured IP addresses
• TwinStar™ (dual-server redundancy)
• Redundant Power Supply (when configured)
• Blink ports (extensions, channels, XPD and SPAN)
• Active calls
• Maintenance issues, including:
• Asterisk restart
• DAHDI restart
• Server reboot
• Server power off
• Settings, including:
• Enable/disable DHCP
• Manual IP configuration
• Monitor and keyboard support
• Internal backup & restore utility
• External Rapid Recovery™ backup utility provided on Disk-on-Key
• Rapid Tunneling™ utility providing secure remote access for product support purposes
• Internet updates

Evironment

• Storage temperature -20° to 70° Celsius (-4°-158° F)
• Working temperature 0° to 40° Celsius (32°-104° F)
• Humidity 20%-95%, non condensing

Dimensions and Weight

• Weight 8 Kg 18Lbs (weight may vary and depends on configuration)
• Size 19″ 2U industry standard rack-mountable chassis

Xorcom PBX’s and Astribanks required Info

1) Please advise how many of the following ports you will require?

• FXS (Analogue Extensions (phone/fax)
• FXO (Analogue Lines)
• E1/T1/PRI – Digital Lines
• BRI/ISDN2 – Digital Lines
• VoIP Trunks
• SIP/IAX Extensions
• Maximum number of concurrent calls

2) Please advise if you require any of the following additional options

• Dual server redundancy (Twinstar)
• Redundant power supply for astribanks (RPS)
• Redundant power supply for IP-PBX
• Hot Swappable Drivers
• Property Management System (PMS) interface (Complete Concierge)
• Call Centre Statistics (Pro Version)
• Hardware echo cancellation
