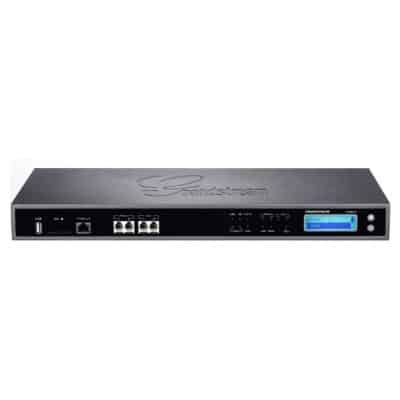

Grandstream UCM6510 Enterprise IP PBX Solution

Grandstream

Key Feature

  • Dual Gigabit Ethernet ports with built-in PoE.
  • Five levels of IVR.
  • Grandstream ZeroConfig provisioning.

Downloads Documents & Manuals



170,000.00 170,941.00

1,019,000.00 for 3 item(s)

Grandstream Enterprise IP PBX Solution

Grandstream UCM6510 Enterprise IP PBX Solution is a business-grade IP PBX with a host of advanced call and network management features, all license-free and cost-free.

The Grandstream UCM6510 supports E1, T1, and J1, up to 2000 users and 200 simultaneous calls and  64 conference participants.  2 FXO PSTN ports, 2 FXS analog phone ports, and 50 SIP trunk accounts. Other key features of  Grandstream UCM6510 Enterprise IP PBX Solution include:

  • Dual Gigabit Ethernet ports with built-in PoE.
  • Five levels of IVR.
  • Grandstream ZeroConfig provisioning.
  • A built-in call recording server.
  • Allows up to 64 conference attendee
  • 1GHz quad-core Cortex A9 processor
  • 1GB DDR3 Ram, 32GB Flash

The Grandstream UCM6510 enables organizations to unify multiple communication technologies, such as voice, video, surveillance, data tools. The UCM6510 integrates access management into a single common platform that seamlessly can be managed and accessed remotely from anywhere.

The UCM6510 allows organizations to unify multiple communication technologies, such as voice, video, surveillance, data tools, and facility access management, into a single common platform that seamlessly can be managed and accessed remotely from anywhere.



Grandstream UCM6302 IP PBX

For Technical Support on this product, kindly complete our Contact US  Form, or If you require additional assistance with product installation, you can reach our support center at [email protected]

SKU: DTN-5487FB81-1 Categories: , , , , ,

Grandstream UCM6510 – Technical Specifications

Interfaces

  • Analog Telephone FXS Ports 2 RJ11 ports (both with lifeline capability in case of power outage)
  • PSTN Line FXO Ports 2 RJ11 ports (both with lifeline capability in case of power outage)
  • T1/E1/J1 Interface 1 RJ45 port
  • Network Interfaces Dual Gigabit ports (switched or routed) with PoE; A 3rd Gigabit port for Hot-Standby Clustering
  • NAT Router Yes (user configurable)
  • Peripheral Ports USB, SD
  • LED Indicators Power 1/2, PoE, USB, SD, T1/E1/J1, FXS 1/2, FXO 1/2, LAN, WAN, Cluster Heartbeat
  • LCD Display 128×32 dot matrix graphic LCD with DOWN and OK buttons
  • Reset Switch Yes, long press for factory reset and short press for reboot

Voice/Video Capabilities

  • Voice-over-Packet Capabilities LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711
  • Voice and Fax Codecs G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38
  • Video Codecs H.264, H.263, H263+
  • QoS Layer 3 QoS, Layer 2 QoS

Signaling & Control

  • In Audio, RFC2833, and SIP INFO In Audio, RFC2833, and SIP INFO
  • PRI, SS7, MFC/R2, RBS (pending) PRI, SS7, MFC/R2, RBS (pending)
  • Provisioning Protocol & Plug-and-Play TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66/multicast SIP SUBSCRIBE/mDNS), eventlist between local and remote trunks
  • Network Protocols TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261),
  • STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending)
  • Disconnect Methods Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone

Security

  • Media Encryption SRTP, TLS, HTTPS, SSH
  • Advanced Defense Fail2ban, alert events, Whitelist, Blacklist, strong password based access control

Physical

  • Universal Power Supply Input: 100 ~ 240VAC, 50/60Hz; Output: DC+12V, 1.5A;
  • Physical Unit Weight: 2.165 kg; Package Weight: 3.012 kg
  • Dimensions 440mm(L) x 185mm(W) x 44mm(H)
  • Environmental Operating: 32 – 113ºF / 0 ~ 45ºC, Humidity 10 – 90% (non-condensing) Storage: 14 – 140ºF / -10 ~ 60ºC, Humidity 10 – 90% (non-condensing)
  • Mounting Rack mount & Desktop

Additional Features

  • Multi-Language Support English/Simplified Chinese/Traditional Chinese/Spanish/French/Portuguese/German/Russian/Italian/Polish/Czech for Web UI; Customizable IVR/voice prompts for English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic
  • Caller ID Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT Japan (pending)
  • Polarity Reversal/Wink Yes, with enable/disable option upon call establishment and termination
  • Call Center Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/work-load, in-queue announcement
  • Customizable Auto Attendant Up to 5 layers of IVR (Interactive Voice Response)
  • Maximum Call Capacity Up to 2000 registered SIP endpoints, up to 200 concurrent calls
  • Conference Bridges Up to 8 bridges, up to 64 simultaneous conference attendees
  • Compliance FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS ITU-T K.21 (Basic Level); UL 60950 (power adapter) T1: TIA-968-B Section 5.2.4 E1: TBR12/TBR13, E1: AS/ACIF
