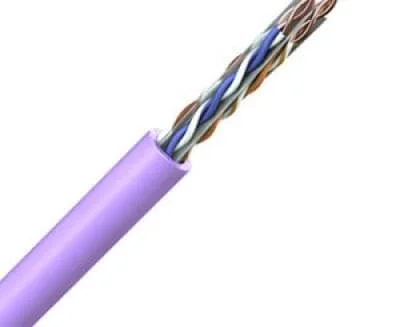

High quallity Cat-6 Network Cable, Commscope 300m

Systimax
Availability:

50 in stock


The COMMSCOPE SYSTIMAX 71E series GigaSPEED® XL cable transmits reliable voice, data and video, with excellent quality of services

 36,000.00  38,000.00

50 in stock

RJ45 Ethernet LAN Network Adapter/connector

High quallity Cat-6 Network Cable, Commscope 300m

  • HIGH PERFORMANCE NETWORK CABLE. This riser rated cat 6 lan cable is 23 AWG with 4 pairs (8C). The overall aluminum (AL) foil shield helps eliminate cross-talk and prevents electromagnetic interference (EMI). Suitable for 1 Gigabit and 10-Gigabit Ethernet up to 165ft depending on the installation environment. Bandwidth tested up to 550 MHz. Supports PoE, PoE+, and PoE++, RJ45 (IEEE 802.3af/at/bt) up to 60W and 300V DC.
  • HASSLE FREE PACKAGING. 1000 feet (305 meters) of our High quallity Cat-6 Network Cable, Commscope product has been packaged in a tangle free, easy pull box so you don’t have to worry about getting behind on your next job.
  • Cat-6 100% SOLID BARE COPPER CONDUCTORS. Pure bare copper produces a stronger signal along with better conductivity and flexibility when compared to copper clad aluminum (CCA).
  • FOR USE INDOORS. The purple riser rated jacket is for use in between floors, in wall, and non-plenum spaces. Help fires from spreading floor to floor in vertical installations with mild flame retardance.
  • ✓ Electrical Specifications
    Operating Voltage, maximum 80 V
    Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1,
    CENELEC EN 50174-2 or TIA TSB-184-A
  • Regulatory Compliance/Certifications
    Agency Classification
    CHINA-ROHS Below maximum concentration value
    REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
    ROHS Compliant



Related Products Topics .

SKU: DNT-5487FB22 Category:

Technical Specifications

ANSI/TIA Category   6
Characteristic Impedance   100 ohm
dc Resistance Unbalance, maximum   5 %
dc Resistance, maximum   8.00 ohms/100 m
Delay Skew, maximum   45 ns
Mutual Capacitance   5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)   68 %
Operating Frequency, maximum   250 MHz
Operating Voltage, maximum   80 V
Propagation Delay, maximum   536 ns/100m @250MHz
Transmission Standards   ANSI/TIA-568-C.2   |   CENELEC EN 50288-6-1   |   IEC 61156-5   |   ISO/IEC 11801 Class E
Dielectric Strength, minimum   1500 Vac   |   2500 Vdc
