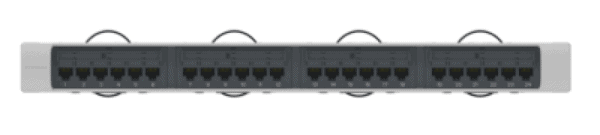

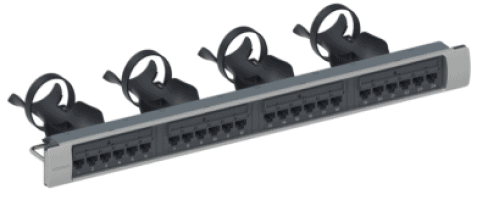

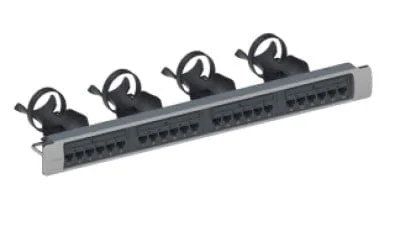

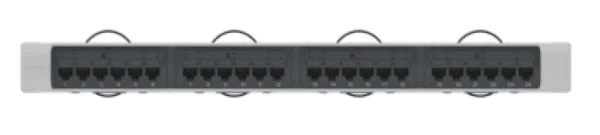

24-Port Patch Panel
GigaSPEED XL® 1100GS3 Evolve Category 6 U/UTP Patch Panel, 24 port are available in 1U and 2U options and feature the elegant SYSTIMAX 360™ design.

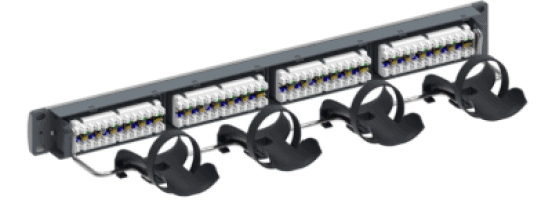

DESIGN CONCEPT: The GigaSpeed Patch Panel is designed with upgraded rear cable management features that makes installation easier over current cable bundling/dressing methods. This reduces the time to tie down bundles of cable on the rear of the panels.
WHAT IS NEW: This new CommScope patch panel platform is intelligent-ready modular panel system designed to accommodate shielded multi-connector modules, individual shielded outlets, pre-terminated copper trunks and future connector designs.
NEED FOR TODAY: For modern day structured cable applications that demand high level intelligence, this panel simply offers built-in intelligence while at the same time, providing deep insight into your network infrastructure activity.
Features
- Zero water peak single-mode fiber
- Maximizes support for lowest cost CWDM technology and delivers lowest cost path to future single-mode applications
- Supports legacy single-mode equipment and applications
Related Products Topics .
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | SYSTIMAX® |
| Product Type | RJ45 patch panel |
| Product Brand | GigaSPEED XL® |
General Specifications
| ANSI/TIA Category | 6 |
| Cable Type | Unshielded |
| Color | Cool gray | Satin chrome |
| Conductor Type | Solid | Stranded |
| Intelligence Type | iPatch® ready |
| Modules, quantity | 4 |
| Panel Style | Straight |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Termination Type | IDC |
| Total Ports, quantity | 24 |
| Wiring | T568A | T568B |
Dimensions
| Height | 44.45 mm | 1.75 in |
| Width | 482.6 mm | 19 in |
| Depth, with cable management | 165.1 mm | 6.5 in |
| Compatible Diameter Over Dielectric, maximum | 1.168 mm | 0.046 in |
| Compatible Diameter Over Dielectric, minimum | 0.762 mm | 0.03 in |
| Compatible Conductor Gauge, solid | 22 AWG | 24 AWG |
| Compatible Conductor Gauge, stranded | 22 AWG | 24 AWG |
Electrical Specifications
| Current Rating at Temperature | 1.5 A @ 20 °C | 1.5 A @ 68 °F |
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 mOhm |
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
Material Specifications
| Contact Plating Material | Precious metals |
| Material Type | High-impact, flame retardant, thermoplastic | Powder-coated steel |
| Termination Contact Plating | Nickel |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
| Plug Insertion Life, test plug | IEC 60603-7 compliant plug |
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 0.862 kg | 1.9 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015  |
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS  |
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
