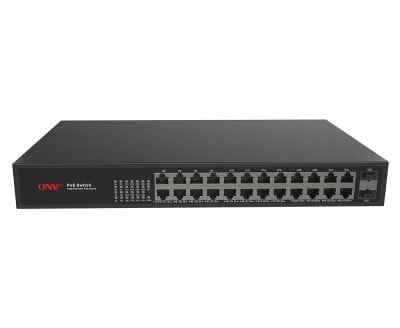

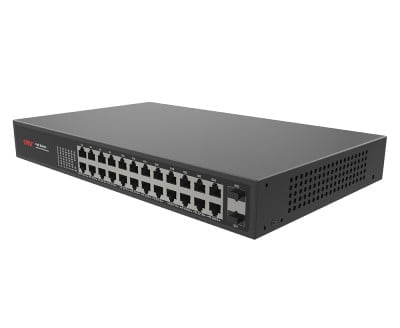

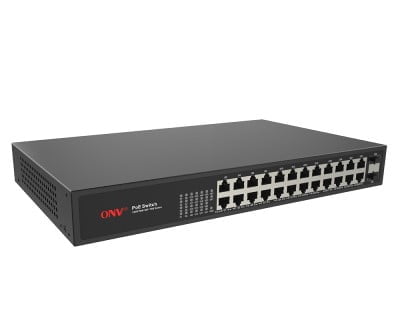

Full Gigabit 26-port Unmanaged PoE Switch Model: ONV-POE33024PFB

ONV
Add to Wishlist
Compare

Got A Question? Contact Us.

We Offer Good Discount      Expert Technical Support

Product Key Features

Unmanaged PoE fiber switch with 24*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber slot ports, port 1-24 can support IEEE802.3af/at PoE standard, Built-in 250W power supply. Support 1U/19 inch rack installation.

Downloads Documents & Manuals

 ONV Warranty Information (PDF)
 ONV Application (PDF)

$189.57 $191.30

Compare
$406.52 for 3 item(s)

Full Gigabit 26-port Unmanaged PoE Switch Model: ONV-POE33024PFB

The ONV-POE33024PFB  full gigabit PoE fiber switch by ONV, has 24*10/100/1000M RJ45 ports and 2*1000M SFP slot ports. Port 1-24 has the capability to support IEEE 802.3af/at standard PoE power supply. The single-port PoE has a 30W power, and the maximum PoE output power is 250W.

As a PoE power supply device, this switch automatically detects and recognize the power receiving equipment that meets the standard and supply power through the network cable. This switch is suitable for powering wireless AP, webcam, VoIP, visual intelligent building intercom through a network cable, and meets the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, parks, attractions, supermarkets, factory quarters,s and small and medium-sized enterprises to form a cost-effective network.

Unmanaged mode, plug and play, no configuration, easy to use.

 Related Products Topics



For Technical support kindly contact or FAQ

SKU: ONV-POE33024PFB Categories: ,

TECHNICAL SPECIFICATION

ModelONV-POE33016PFBONV-POE33024PFB
Interface Characteristics
Fixed Port16*10/100/1000Base-T PoE ports(Data/Power);

2*1000Base-X SFP ports (Data)

24*10/100/1000Base-T PoE ports(Data/Power);

2*1000Base-X SFP ports (Data)

Ethernet PortPort 1-16 can support 10/100/1000Base-T,auto-sensing, full/half duplex MDI/MDI-XPort 1-24 can support 10/100/1000Base-T,auto-sensing, full/half duplex MDI/MDI-X
Twisted Pair Transmission10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)

SFP Slot PortGigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical CableMulti mode: 850nm 0 ~ 550M,single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Chip Parameter
Network ProtocolIEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3x

Forwarding ModeStore and Forward(Full Wire Speed)
Switching Capacity48Gbps (Non-blocking)52Gbps (Non-blocking)
Forwarding

Rate@64byte

26.78Mpps38.69Mpps
MAC8K
Buffer Memory4M
Jumbo Frame9.6K
LED IndicatorPower:PWR (green ), network 1-16(24)/ G1-2 (green),POE: PoE (green)
Reset SwitchYes, One-button factory reset
PoE & Power Supply
PoE PortPort 1 to 16Port 1 to 24
Power Supply PinDefault 1/2 (+), 3/6 (-)
Max Power Per Port30W; IEEE802.3af/at
Total PWR / Input Voltage250W (AC100-240V)
Power ConsumptionStandby<18W, full Load<240WStandby<25W, full Load<250W
Power SupplyBuilt in power supply, AC100~240V 50-60Hz 4.1A Short circuit, over current, overload protection.
Physical Parameter
Operation TEMP / Humidity-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity-40~+75°C;5%~95% RH Non condensing
Dimension (L*W*H)270.5*181*44.5mm330*204*44mm
Net /Gross Weight<1.7kg /<2.2kg<2.3kg /<3kg
InstallationDesktop, wall mounted,19 inch 1U cabinet
Certification & Warranty
Lightning protection / protection levelLightning protection: 4KV 8/20us; Protection level: IP30
CertificationCCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Warranty3 years, lifelong maintenance.
